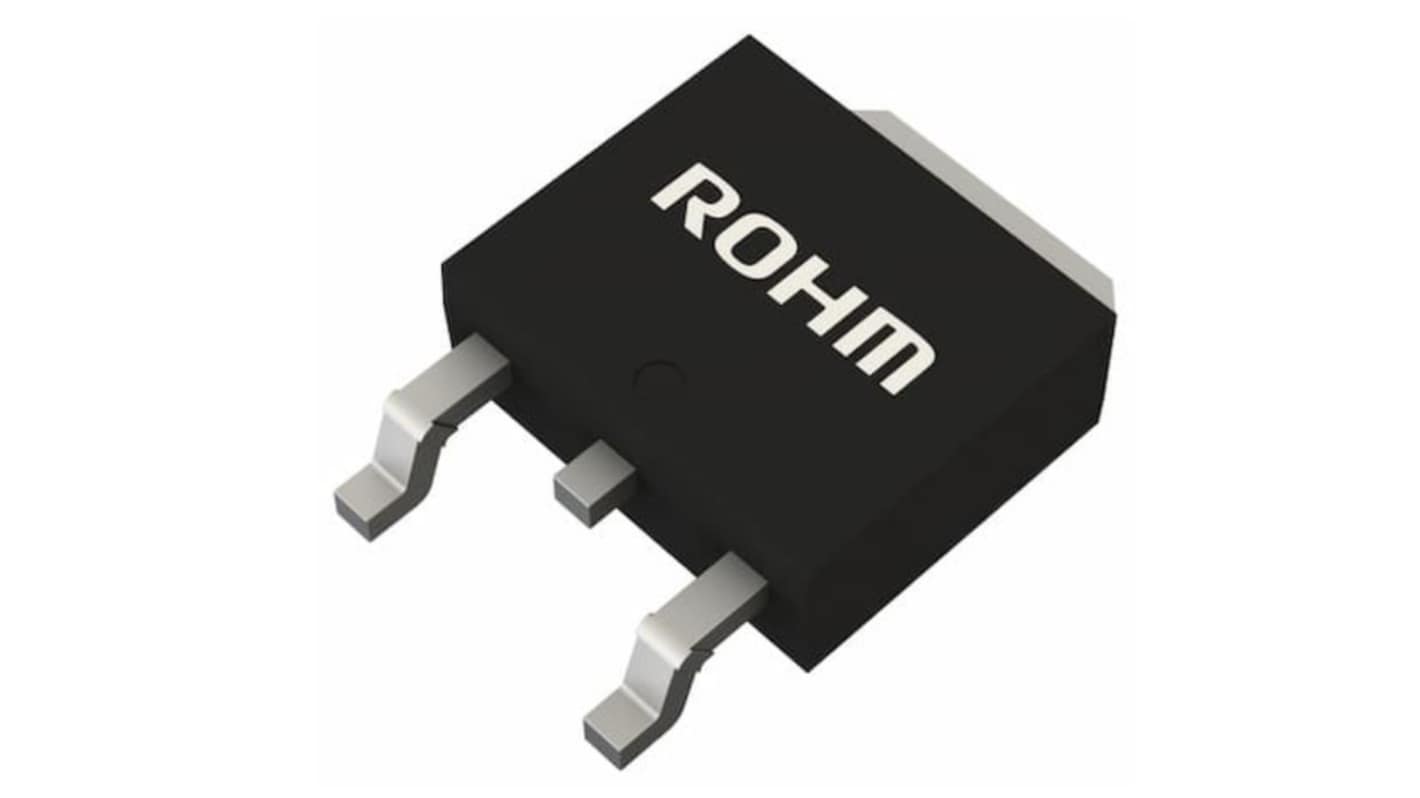

ROHM RD3 Type N-Channel Single MOSFETs, 60 V Enhancement, 3-Pin TO-252
- RS Stock No.:
- 646-545P
- Mfr. Part No.:
- RD3L04BBLHRBTL
- Brand:
- ROHM
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£55.10
(exc. VAT)
£66.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 490 | £0.551 |
| 500 - 990 | £0.494 |
| 1000 + | £0.391 |
*price indicative
- RS Stock No.:
- 646-545P
- Mfr. Part No.:
- RD3L04BBLHRBTL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Single MOSFETs | |
| Channel Type | Type N | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-252 | |
| Series | RD3 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 13.6mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 12.1nC | |
| Maximum Power Dissipation Pd | 53W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | AEC-Q101, RoHS | |
| Height | 2.3mm | |
| Length | 10.50mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Single MOSFETs | ||
Channel Type Type N | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-252 | ||
Series RD3 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 13.6mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 12.1nC | ||
Maximum Power Dissipation Pd 53W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals AEC-Q101, RoHS | ||
Height 2.3mm | ||
Length 10.50mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM P channel 60 volt 40 ampere power metal oxide semiconductor field effect transistor features lead free plating and is restriction of hazardous substances compliant. It is one hundred percent avalanche tested.
Low on-resistance
AEC-Q101 qualified
