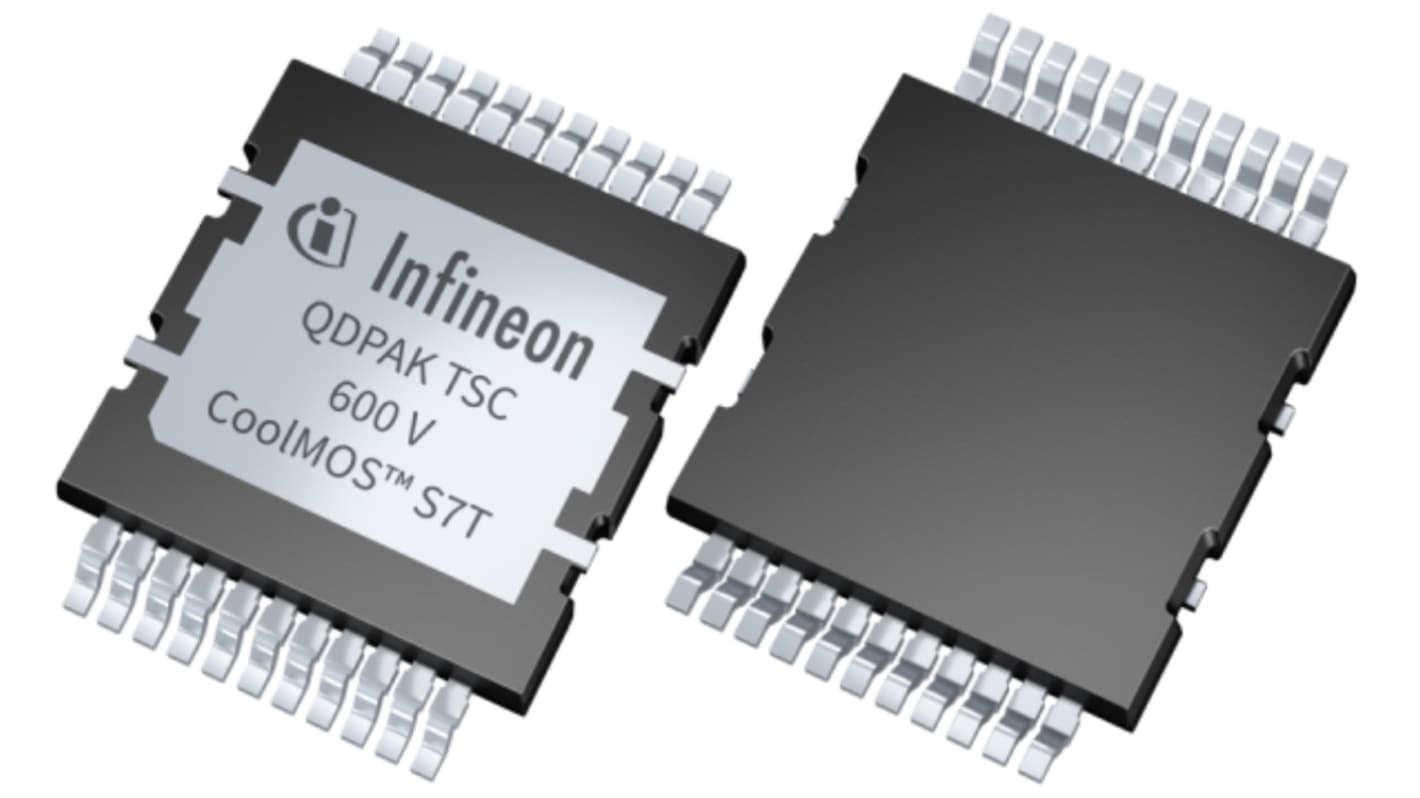

Infineon IPDQ60 Type N-Channel MOSFET, 174 A, 600 V Enhancement, 22-Pin PG-HDSOP-22 IPDQ60T010S7XTMA1
- RS Stock No.:
- 351-942
- Mfr. Part No.:
- IPDQ60T010S7XTMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£25.15
(exc. VAT)
£30.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 750 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £25.15 |
| 10 - 99 | £22.64 |
| 100 + | £20.87 |
*price indicative
- RS Stock No.:
- 351-942
- Mfr. Part No.:
- IPDQ60T010S7XTMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 174A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | IPDQ60 | |
| Package Type | PG-HDSOP-22 | |
| Mount Type | Surface | |
| Pin Count | 22 | |
| Maximum Drain Source Resistance Rds | 0.022Ω | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.82V | |
| Typical Gate Charge Qg @ Vgs | 318nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 694W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Length | 15.1mm | |
| Standards/Approvals | JEDEC | |
| Height | 2.35mm | |
| Width | 15.5 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 174A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series IPDQ60 | ||
Package Type PG-HDSOP-22 | ||
Mount Type Surface | ||
Pin Count 22 | ||
Maximum Drain Source Resistance Rds 0.022Ω | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.82V | ||
Typical Gate Charge Qg @ Vgs 318nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 694W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Operating Temperature 150°C | ||
Length 15.1mm | ||
Standards/Approvals JEDEC | ||
Height 2.35mm | ||
Width 15.5 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Infineon CoolMOS S7T with embedded temperature sensor increases junction temperature sensing accuracy and robustness while enabling easy implementation. The device is optimized for low-frequency and high-current switching applications. It is an ideal fit for solid-state relay, circuit breaker designs, and line rectification in SMPS.
Minimized conduction losses
Increased system performances
Allow more compact design over EMR
Lower TCO over prolonged time
Enabling higher power density designs
Reduction of external sensing elements
Best utilization of power transistor
