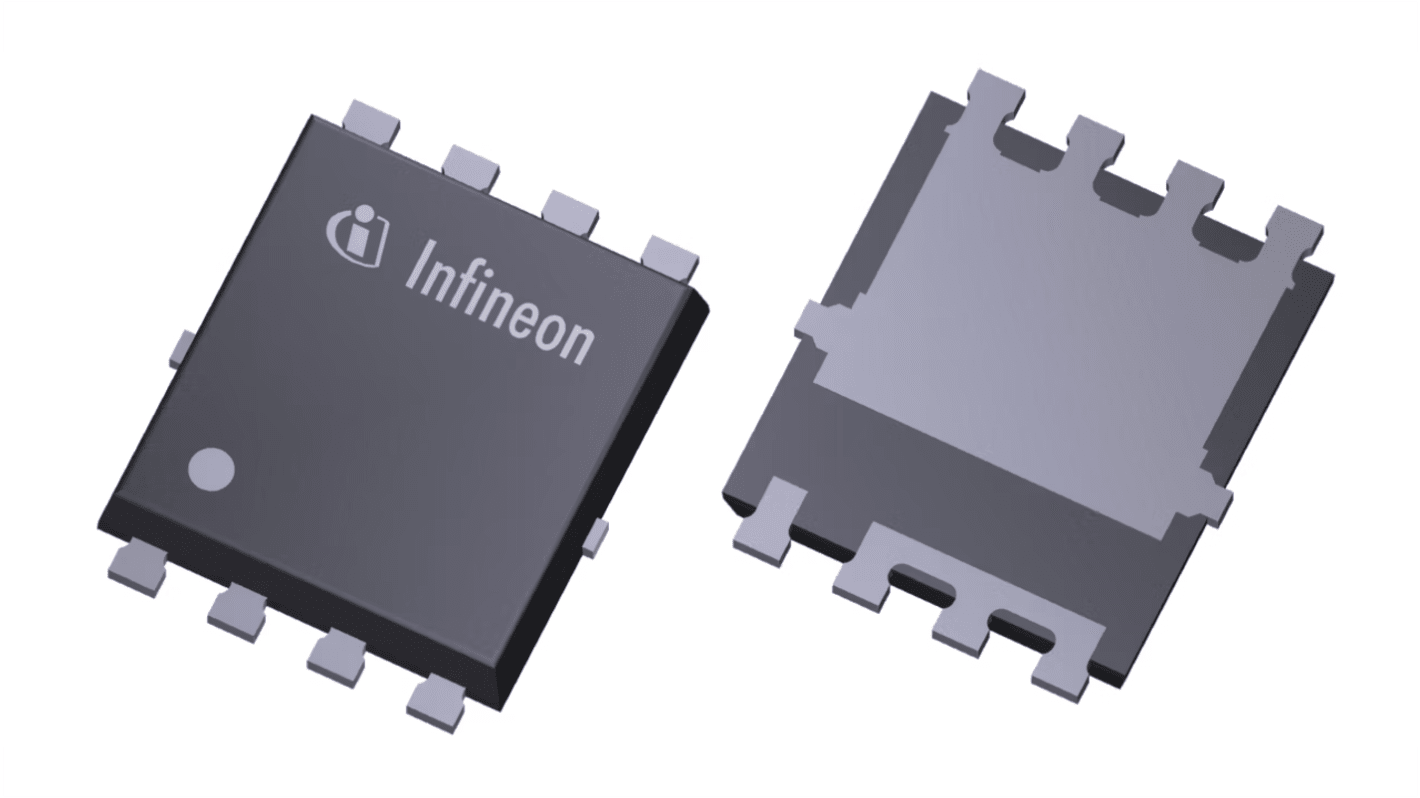

Infineon OptiMOS 7 Type N-Channel MOSFET, 274 A, 80 V Enhancement, 8-Pin PG-TDSON-8-53 IAUCN08S7N013ATMA1

RS Stock No.:: 348-837
Mfr. Part No.:: IAUCN08S7N013ATMA1
Brand:: Infineon

Infineon OptiMOS 7 Type N-Channel MOSFET, 274 A, 80 V Enhancement, 8-Pin PG-TDSON-8-53 IAUCN08S7N013ATMA1

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 348-837
Mfr. Part No.:: IAUCN08S7N013ATMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	274A
	Maximum Drain Source Voltage Vds	80V
	Series	OptiMOS 7
	Package Type	PG-TDSON-8-53
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	1.30mΩ
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	±20 V
	Maximum Power Dissipation Pd	219W
	Maximum Operating Temperature	175°C
	Standards/Approvals	RoHS Compliant
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 274A
	Maximum Drain Source Voltage Vds 80V
	Series OptiMOS 7
	Package Type PG-TDSON-8-53
	Mount Type Surface
	Pin Count 8
	Maximum Drain Source Resistance Rds 1.30mΩ
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs ±20 V
	Maximum Power Dissipation Pd 219W
	Maximum Operating Temperature 175°C
	Standards/Approvals RoHS Compliant
	Automotive Standard No

Datasheet - IAUCN08S7N013ATMA1

COO (Country of Origin):: MY

Infineon IAU Series MOSFET, 274A Maximum Continuous Drain Current, 80V Maximum Drain Source Voltage - IAUCN08S7N013ATMA1

This input module is a sophisticated binary input device designed for integration within a KNX bus system, suited for various automation projects. Designed with four input channels, it operates at a supply voltage of 24V DC and measures 86.5 x 47.8 x 36.2mm. This DIN rail mounted input module offers reliability for building automation products, facilitating effective communication within the Gamma Instabus

Features & Benefits

• Supports binary input for monitoring various circuit states

• Facilitates easy integration with automation accessories

• Features a maximum cable length of 100m for flexible installations

• Designed for installation in AP 118 or AP 641 housing

• Utilises a bus voltage of 24V DC for enhanced energy efficiency

• Capable of monitoring up to four inputs in real time

Applications

• Utilised for monitoring circuit-breaker statuses and alarm signals

• Ideal for recording operational states in electrical installations

• Effective in energy management systems for automation solutions

• Used for controlling lighting and other electrical devices within buildings

How does this module enhance energy efficiency in automation systems?

The ability to operate at a low bus voltage of 24V DC not only reduces energy consumption but also minimises heat generation, supporting sustainable automation practices across various applications.

What are the configuration requirements for effective operation?

It requires the Engineering Tool Software (ETS) version ETS3 v3.0f or later for setup, ensuring customised programming of the input channels to meet specific automation needs.

What types of input signals can be processed by this module?

It can handle a

How does this device communicate within the KNX system?

Communication occurs via a screwless bus connection block, streamlining the wiring process and ensuring secure connectivity within the KNX infrastructure.

Infineon Schottky Diodes & MOSFETs – Matched for Power, Built for Efficiency

Pair Infineon Schottky diodes with Infineon MOSFETs for a high-efficiency power solution that’s optimised from the ground up. Designed to work together, they deliver fast switching, low losses, and excellent thermal performance—ideal for SMPS, motor drives, and automotive systems. Reduce design complexity and boost reliability with components engineered for synergy.

Explore the Infineon range today
