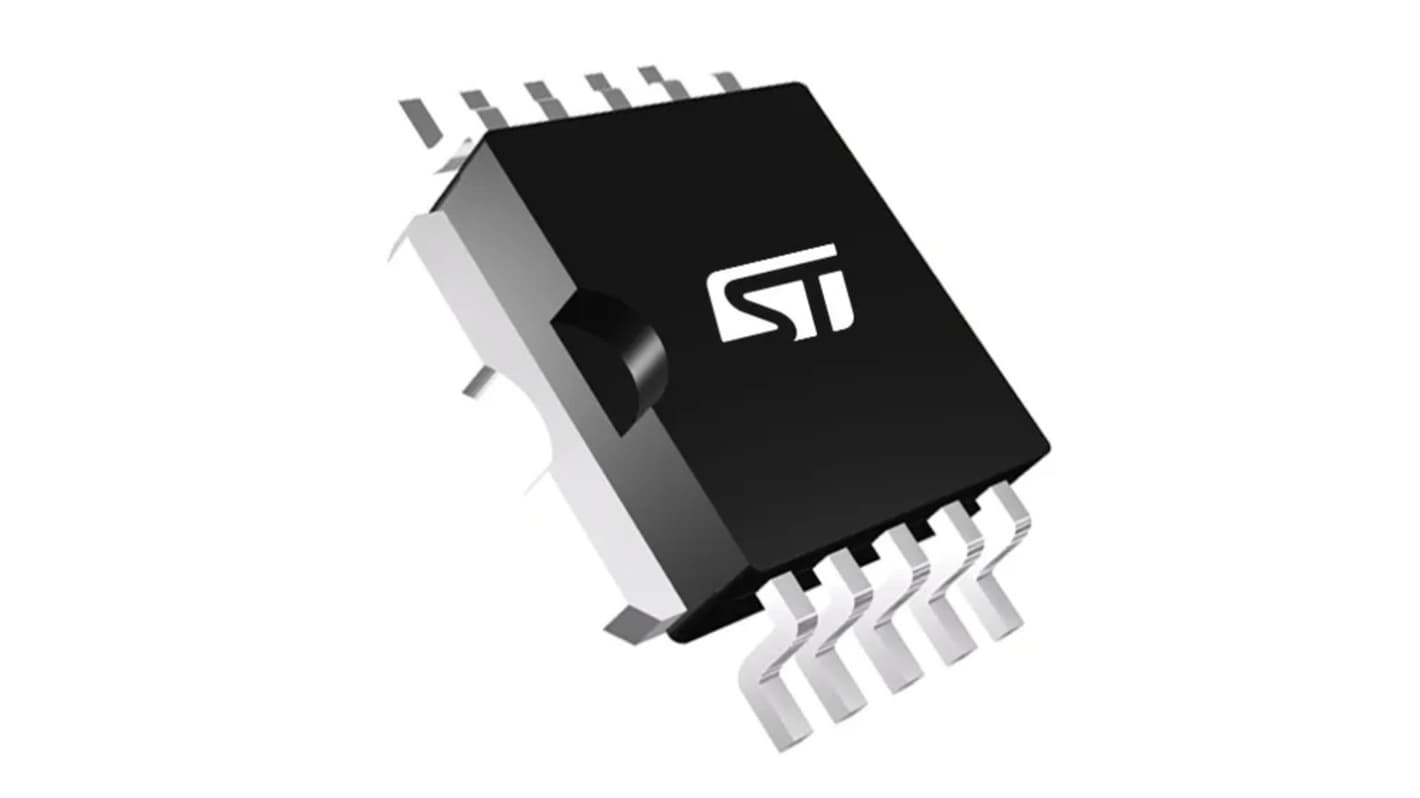

STMicroelectronics PD5 Plastic N-Channel MOSFET, 7 A, 65 V PowerSO-10RF PD57060-E
- RS Stock No.:
- 330-274
- Mfr. Part No.:
- PD57060-E
- Brand:
- STMicroelectronics
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 330-274
- Mfr. Part No.:
- PD57060-E
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Channel Type | N | |
Maximum Continuous Drain Current | 7 A | |
Maximum Drain Source Voltage | 65 V | |
Package Type | PowerSO-10RF | |
Series | PD5 | |
Mounting Type | Surface Mount | |
Channel Mode | Enhancement | |
Transistor Material | Plastic | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Channel Type N | ||
Maximum Continuous Drain Current 7 A | ||
Maximum Drain Source Voltage 65 V | ||
Package Type PowerSO-10RF | ||
Series PD5 | ||
Mounting Type Surface Mount | ||
Channel Mode Enhancement | ||
Transistor Material Plastic | ||
- COO (Country of Origin):
- MY
The STMicroelectronics RF power transistor is a common source N-channel, enhancement-mode lateral field-effect RF power MOSFET. It is designed for high gain, broad band commercial and industrial applications. It operates at 28 V in common source mode at frequencies up to 1 GHz. The device boasts the excellent gain, linearity and reliability of STs latest LDMOS technology mounted in the first true SMD plastic RF power package, PowerSO-10RF. Devices superior linearity performance makes it an ideal solution for base station applications. The PowerSO-10 plastic package, designed to offer high reliability, is the first ST JEDEC approved, high power SMD package. It has been specially optimized for RF needs and offers excellent RF performances and ease of assembly. Mounting recommendations are available in www.st.com/rf/ (look for application note AN1294).
Excellent thermal stability
Common source configuration
New RF plastic package
Common source configuration
New RF plastic package
