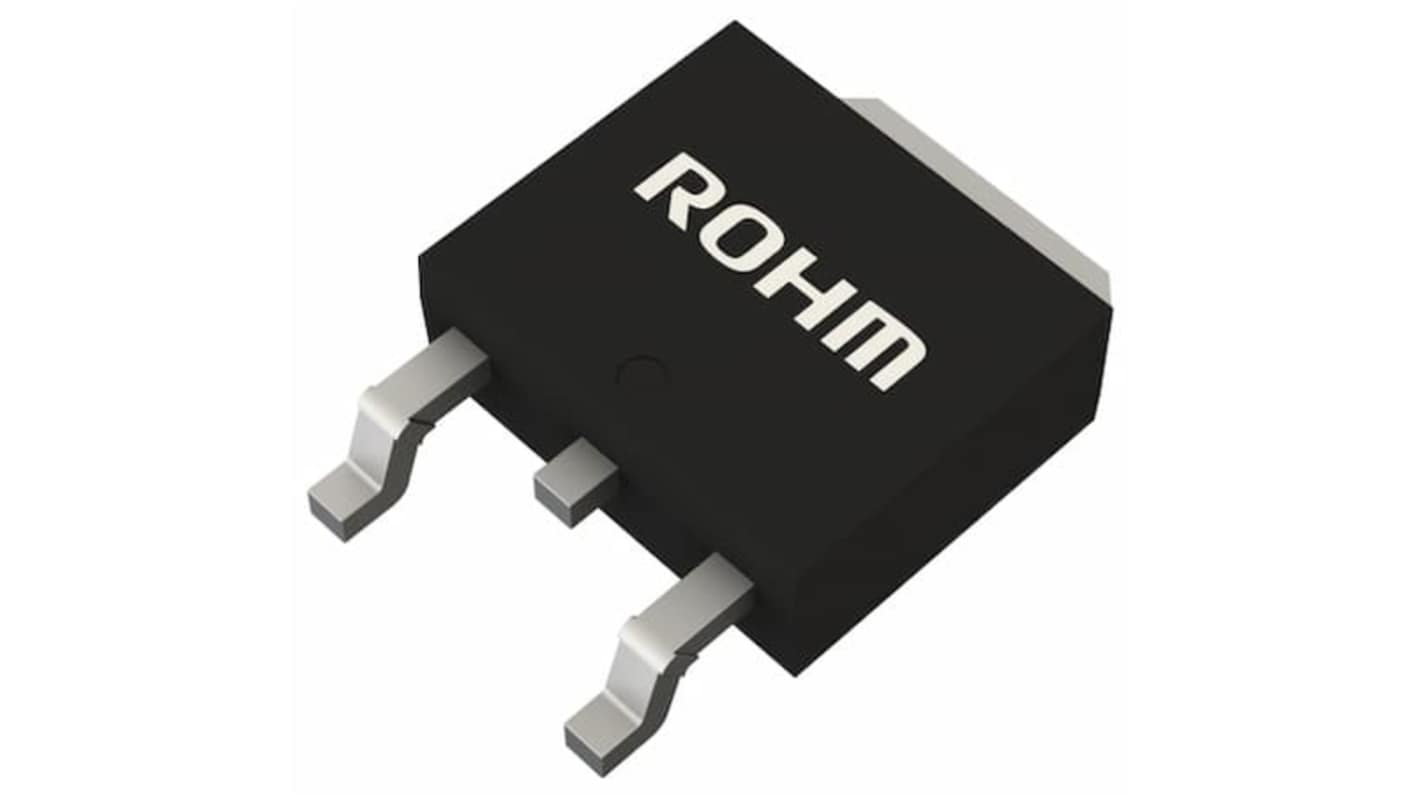

ROHM R60 Type N-Channel MOSFET, 7 A, 7 V Enhancement, 3-Pin TO-252 R6007RND3TL1
- RS Stock No.:
- 264-921
- Mfr. Part No.:
- R6007RND3TL1
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£4.20
(exc. VAT)
£5.05
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.84 | £4.20 |
| 50 - 95 | £0.798 | £3.99 |
| 100 - 495 | £0.74 | £3.70 |
| 500 - 995 | £0.682 | £3.41 |
| 1000 + | £0.656 | £3.28 |
*price indicative
- RS Stock No.:
- 264-921
- Mfr. Part No.:
- R6007RND3TL1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 7A | |
| Maximum Drain Source Voltage Vds | 7V | |
| Series | R60 | |
| Package Type | TO-252 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.940Ω | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 96W | |
| Typical Gate Charge Qg @ Vgs | 17.5nC | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 7A | ||
Maximum Drain Source Voltage Vds 7V | ||
Series R60 | ||
Package Type TO-252 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.940Ω | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 96W | ||
Typical Gate Charge Qg @ Vgs 17.5nC | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The ROHM Presto MOS features a 600V rating and 7A current capacity in a TO-252 DPAK package with an integrated high-speed diode. It is a fast trr power MOSFET, making it ideal for high-efficiency switching applications.
Fast reverse recovery time trr
Low on-resistance
Fast switching speed
Drive circuits can be simple
Pb-free plating and RoHS compliant
