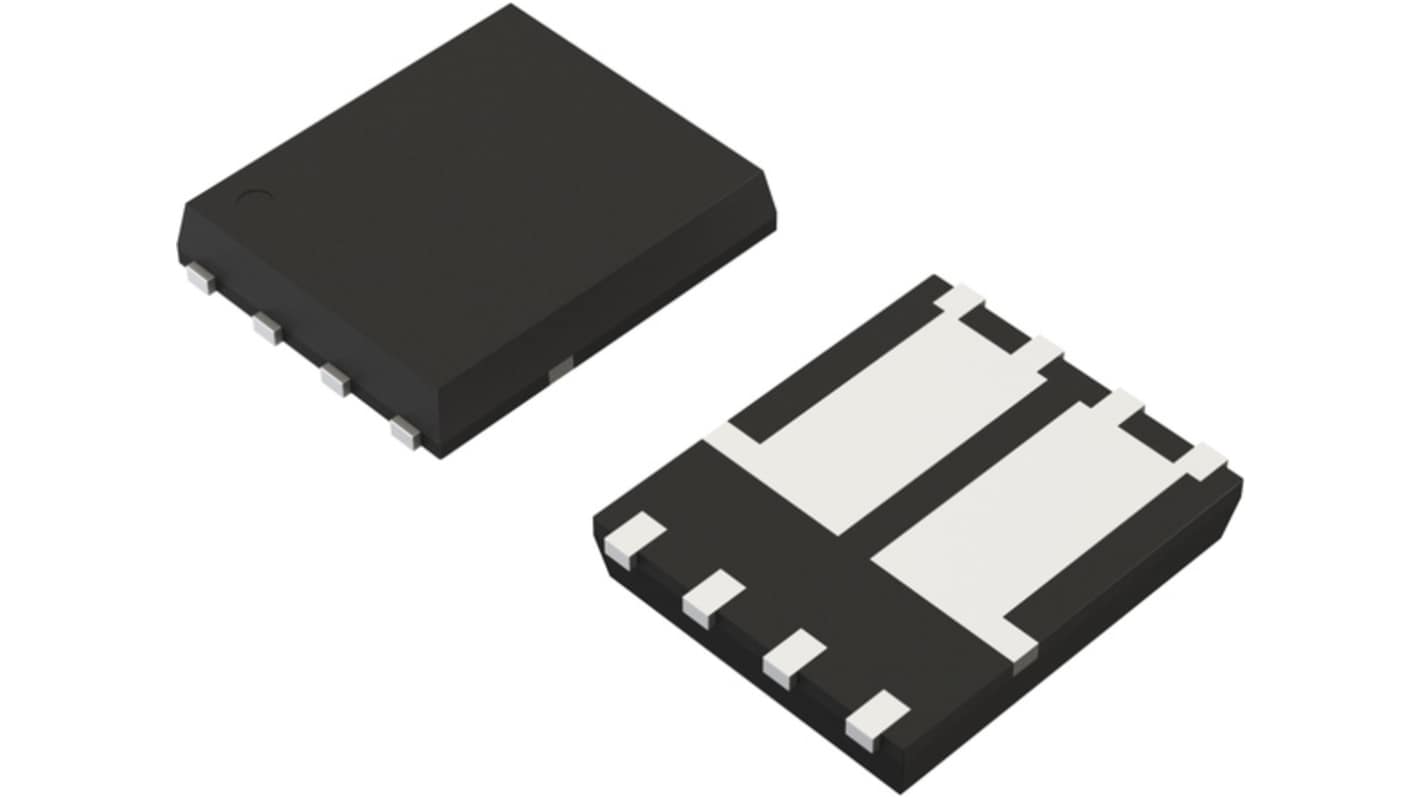

ROHM Nch+Nch HP8 2 Type N-Channel MOSFET, 40 V Enhancement, 8-Pin HSOP-8 HP8KB6TB1
- RS Stock No.:
- 264-754
- Mfr. Part No.:
- HP8KB6TB1
- Brand:
- ROHM
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 5 units)*
£8.25
(exc. VAT)
£9.90
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 100 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.65 | £8.25 |
| 50 - 95 | £1.566 | £7.83 |
| 100 - 495 | £1.448 | £7.24 |
| 500 - 995 | £1.336 | £6.68 |
| 1000 + | £1.284 | £6.42 |
*price indicative
- RS Stock No.:
- 264-754
- Mfr. Part No.:
- HP8KB6TB1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | HSOP-8 | |
| Series | HP8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 15.7mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 10.6nC | |
| Maximum Power Dissipation Pd | 21W | |
| Maximum Operating Temperature | 150°C | |
| Transistor Configuration | Nch+Nch | |
| Standards/Approvals | No | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type HSOP-8 | ||
Series HP8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 15.7mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 10.6nC | ||
Maximum Power Dissipation Pd 21W | ||
Maximum Operating Temperature 150°C | ||
Transistor Configuration Nch+Nch | ||
Standards/Approvals No | ||
Number of Elements per Chip 2 | ||
Automotive Standard No | ||
The ROHM 40V 24A Dual Nch+Nch is a low on-resistance MOSFET ideal for switching applications.
Small Surface Mount Package (HSOP8)
Pb-free lead plating and RoHS compliant
Halogen Free
