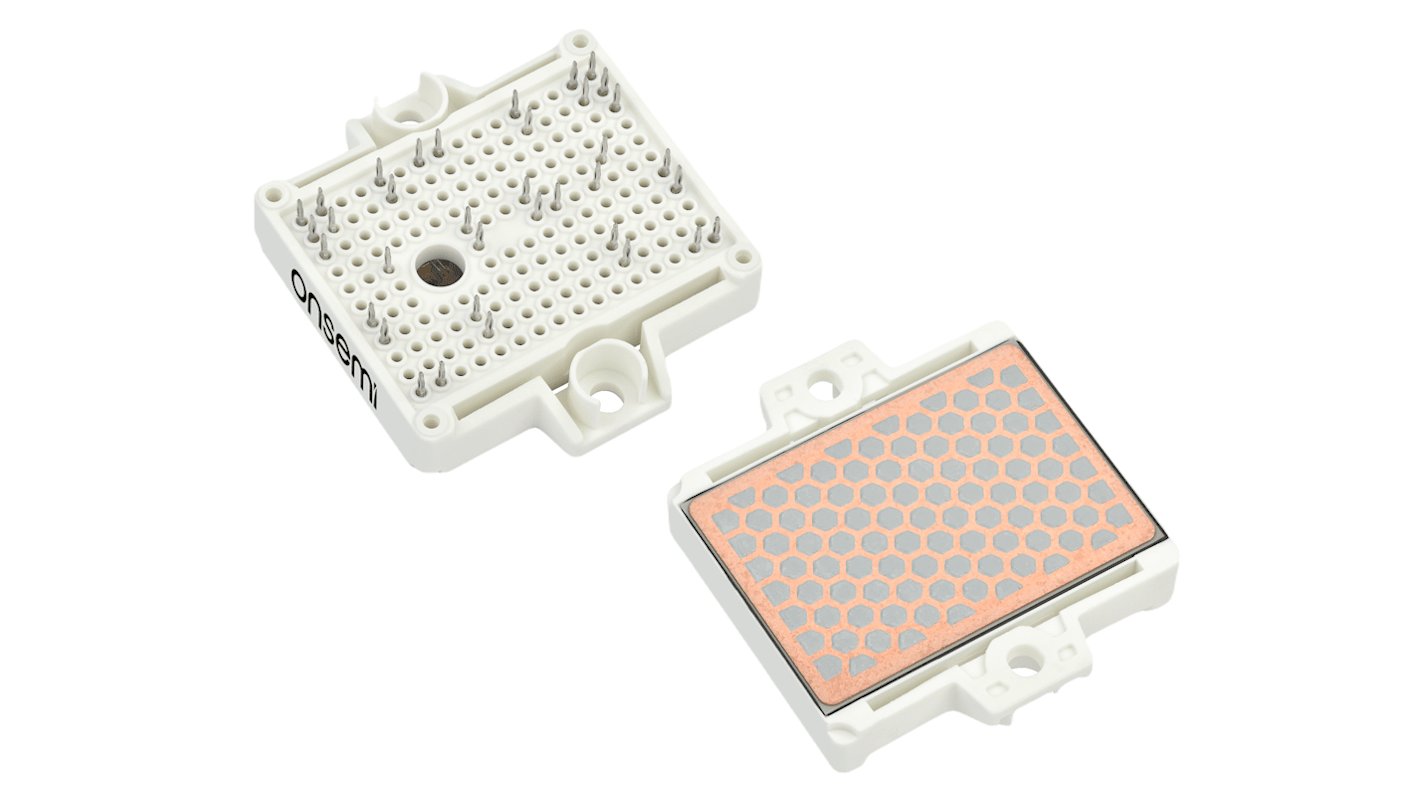

onsemi NXH Dual SiC N-Channel MOSFET, 191 A, 1200 V, 36-Pin PIM36 NXH006P120M3F2PTHG
- RS Stock No.:
- 220-575
- Mfr. Part No.:
- NXH006P120M3F2PTHG
- Brand:
- onsemi
Subtotal (1 pack of 1 unit)*
£135.35
(exc. VAT)
£162.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack |
|---|---|
| 1 + | £135.35 |
*price indicative
- RS Stock No.:
- 220-575
- Mfr. Part No.:
- NXH006P120M3F2PTHG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 191 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Package Type | PIM36 | |
| Series | NXH | |
| Pin Count | 36 | |
| Channel Mode | Enhancement | |
| Transistor Material | SiC | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 191 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type PIM36 | ||
Series NXH | ||
Pin Count 36 | ||
Channel Mode Enhancement | ||
Transistor Material SiC | ||
Number of Elements per Chip 2 | ||
The ON Semiconductor MOSFET is a power module containing 6 m ohm / 1200 V SiC MOSFET half−bridge and a thermistor with HPS DBC in an F2 package.
Halogen Free
RoHS Compliant
RoHS Compliant
