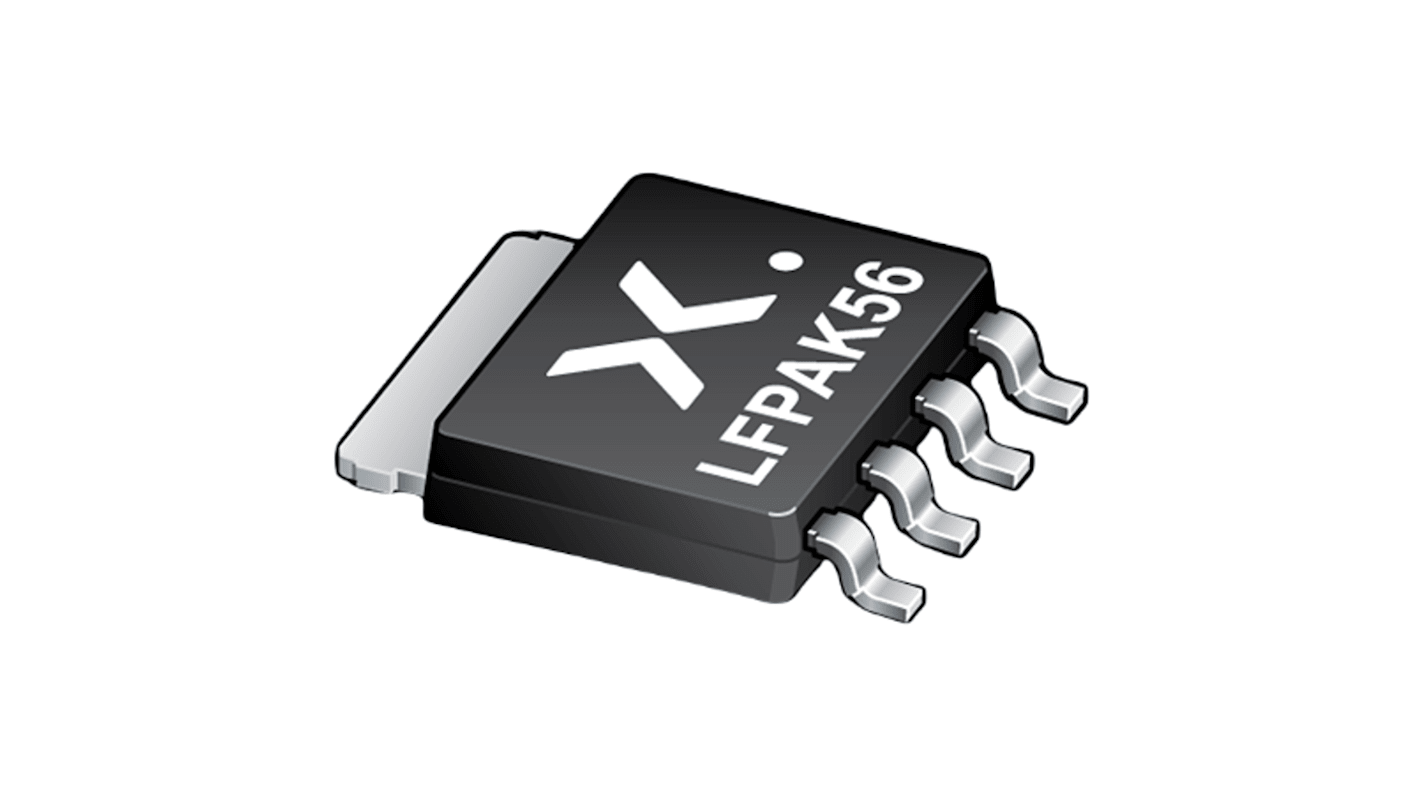

Nexperia N-Channel MOSFET, 80 A, 100 V, 5-Pin LFPAK PSMN9R8-100YSFX
- RS Stock No.:
- 219-505
- Mfr. Part No.:
- PSMN9R8-100YSFX
- Brand:
- Nexperia
Subtotal (1 reel of 1500 units)*
£1,122.00
(exc. VAT)
£1,347.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1500 + | £0.748 | £1,122.00 |
*price indicative
- RS Stock No.:
- 219-505
- Mfr. Part No.:
- PSMN9R8-100YSFX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Channel Type | N | |
Maximum Continuous Drain Current | 80 A | |
Maximum Drain Source Voltage | 100 V | |
Package Type | LFPAK | |
Mounting Type | Surface Mount | |
Pin Count | 5 | |
Channel Mode | Enhancement | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 80 A | ||
Maximum Drain Source Voltage 100 V | ||
Package Type LFPAK | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- PH
The Nexperia N-Channel MOSFET is qualified to 175°C. It is ideal for both industrial and consumer applications. It is suitable for synchronous rectification in AC-DC and DC-DC converters, primary side switching in 48V DC-DC systems, BLDC motor control, USB-PD and mobile fast-charge adapters, as well as flyback and resonant topologies.
Strong avalanche energy rating
Avalanche rated and 100% tested
Ha free and RoHS compliant
Avalanche rated and 100% tested
Ha free and RoHS compliant
