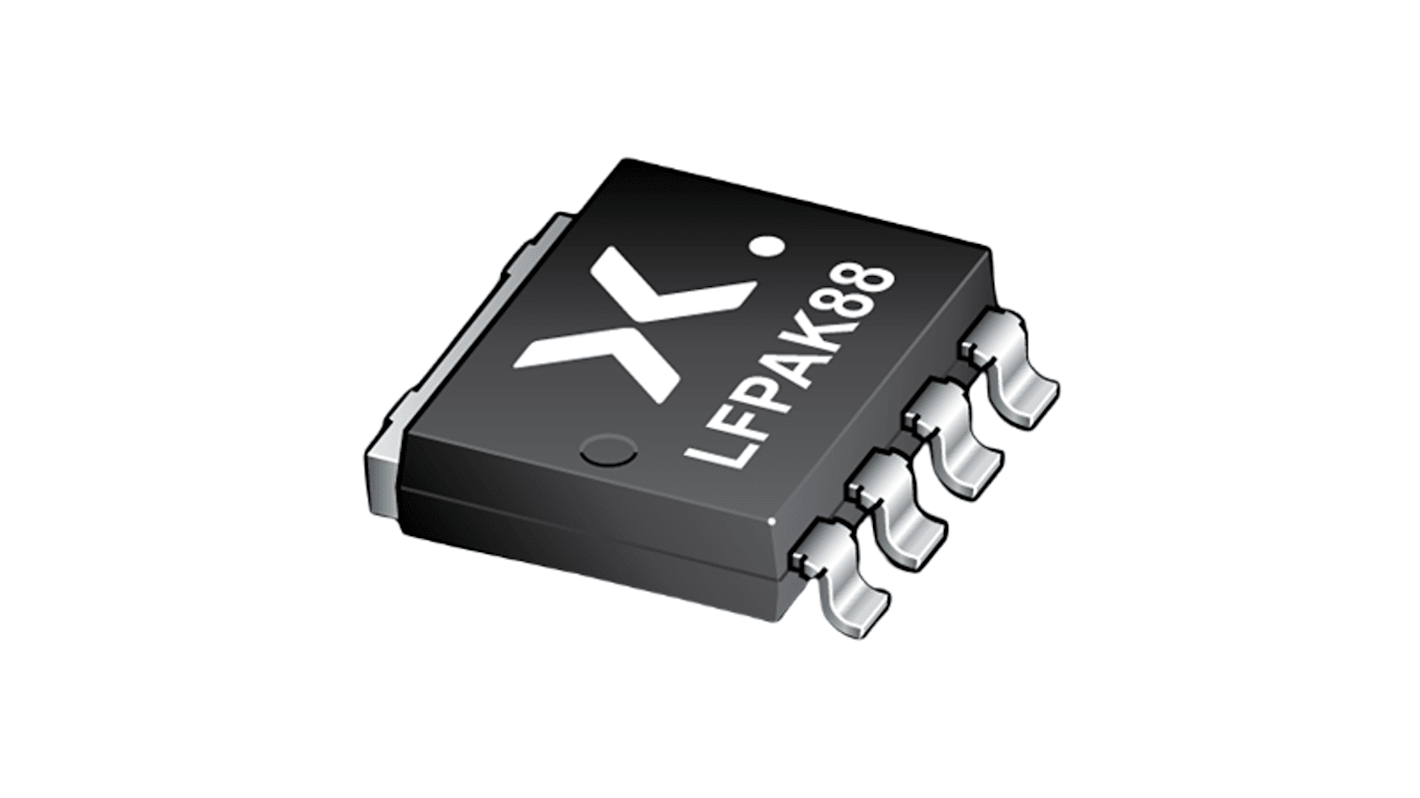

Nexperia PSM Type N-Channel MOSFET, 267 A, 100 V Enhancement, 5-Pin LFPAK PSMN2R0-100SSFJ
- RS Stock No.:
- 219-461
- Mfr. Part No.:
- PSMN2R0-100SSFJ
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 tape of 1 unit)*
£5.20
(exc. VAT)
£6.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 9 | £5.20 |
| 10 - 99 | £4.68 |
| 100 + | £4.31 |
*price indicative
- RS Stock No.:
- 219-461
- Mfr. Part No.:
- PSMN2R0-100SSFJ
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 267A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Series | PSM | |
| Package Type | LFPAK | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 2.07mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Source Voltage Vgs | 10 V | |
| Typical Gate Charge Qg @ Vgs | 161nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 341W | |
| Maximum Operating Temperature | 175°C | |
| Length | 8mm | |
| Height | 1.6mm | |
| Standards/Approvals | RoHS | |
| Width | 8 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 267A | ||
Maximum Drain Source Voltage Vds 100V | ||
Series PSM | ||
Package Type LFPAK | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 2.07mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Source Voltage Vgs 10 V | ||
Typical Gate Charge Qg @ Vgs 161nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 341W | ||
Maximum Operating Temperature 175°C | ||
Length 8mm | ||
Height 1.6mm | ||
Standards/Approvals RoHS | ||
Width 8 mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Nexperia N-Channel MOSFET is qualified for operation up to 175°C and is ideal for industrial and consumer applications. Key applications include synchronous rectification in AC-DC and DC-DC converters, primary side switching, BLDC motor control, full-bridge and half-bridge circuits, and battery protection.
Strong avalanche energy rating
Avalanche rated and 100% tested
Ha free and RoHS compliant
