Dold Current Monitoring Relay, 1 Phase, DPDT, DIN Rail
- RS Stock No.:
- 358-6973
- Mfr. Part No.:
- IL9277.12 AC220-240V 0.1-15A Tv=0.1-20S
- Brand:
- Dold
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£237.95
(exc. VAT)
£285.54
(inc. VAT)
| Units | Per unit |
| 1 + | £237.95 |
- RS Stock No.:
- 358-6973
- Mfr. Part No.:
- IL9277.12 AC220-240V 0.1-15A Tv=0.1-20S
- Brand:
- Dold
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

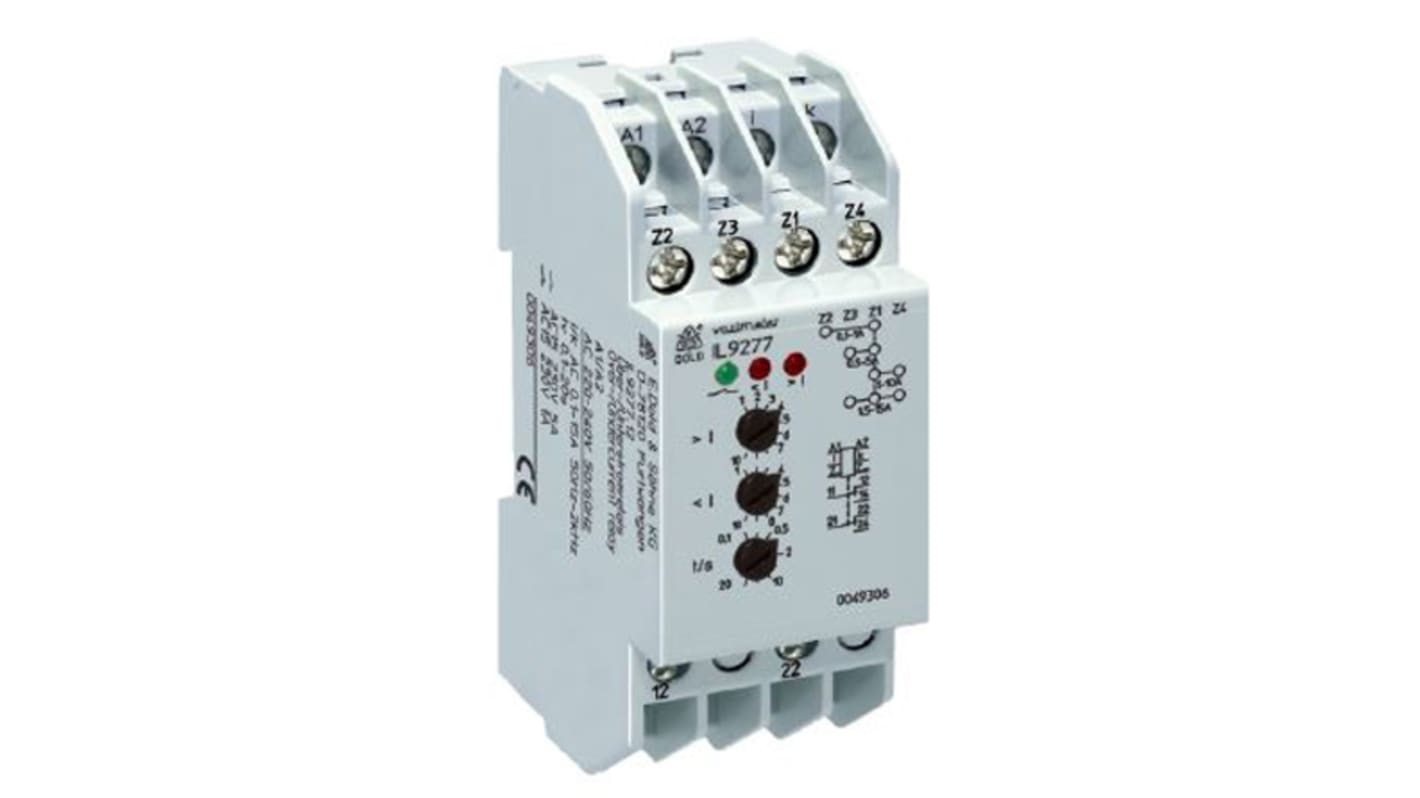

Over- and undercurrent relay, single phase, IL9277
Single phase over- and undercurrent monitoring in 3 phase and alternating current networks
4 measurement ranges from 0.1 → 15 A without an extra current transducer (programmable via bridges)
Adjustable 0.1 → 1 IN
Separate limit value settings for over- and undercurrent
Rest current principle
3 LED displays: over-, under- and normal current
Auxiliary circuit and measuring circuit galvanically isolated
Separate output relays for over- and undercurrent
Test current rated frequency 50/60 Hz
Continuous current 20 A / 50°
Accuracy ≤1%
Voltage range 0.8 → 1.1 UH
Contact 2 changeovers
Rated operating current type Continuous
Wire connection 2 x 2.5 mm2 solid or 2 x 1.5 mm2 with sleeve
LED indicators for over-, under- and normal current
4 measurement ranges from 0.1 → 15 A without an extra current transducer (programmable via bridges)
Adjustable 0.1 → 1 IN
Separate limit value settings for over- and undercurrent
Rest current principle
3 LED displays: over-, under- and normal current
Auxiliary circuit and measuring circuit galvanically isolated
Separate output relays for over- and undercurrent
Test current rated frequency 50/60 Hz
Continuous current 20 A / 50°
Accuracy ≤1%
Voltage range 0.8 → 1.1 UH
Contact 2 changeovers
Rated operating current type Continuous
Wire connection 2 x 2.5 mm2 solid or 2 x 1.5 mm2 with sleeve
LED indicators for over-, under- and normal current
Standards
IEC 255, VDE 0435 Part 303
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Current |
| Electrical Phase | 1 |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Minimum Current Sensed | 0.1A |
| Maximum Current Sensed | 15A |
| Current Sensitivity | Overcurrent, Undercurrent |
| Time Delay | 0.1 → 20s |
| Series | IL 9277 |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | +60°C |
| Length | 61mm |
| Width | 35mm |
| Current Range | 0.1 → 1 A, 0.5 → 5 A, 1 → 10 A, 1.5 → 15A |
| Dimensions | 61 x 35 x 90mm |
| Maximum Operating Temperature | +60°C |
| Height | 90mm |
- RS Stock No.:
- 358-6973
- Mfr. Part No.:
- IL9277.12 AC220-240V 0.1-15A Tv=0.1-20S
- Brand:
- Dold
