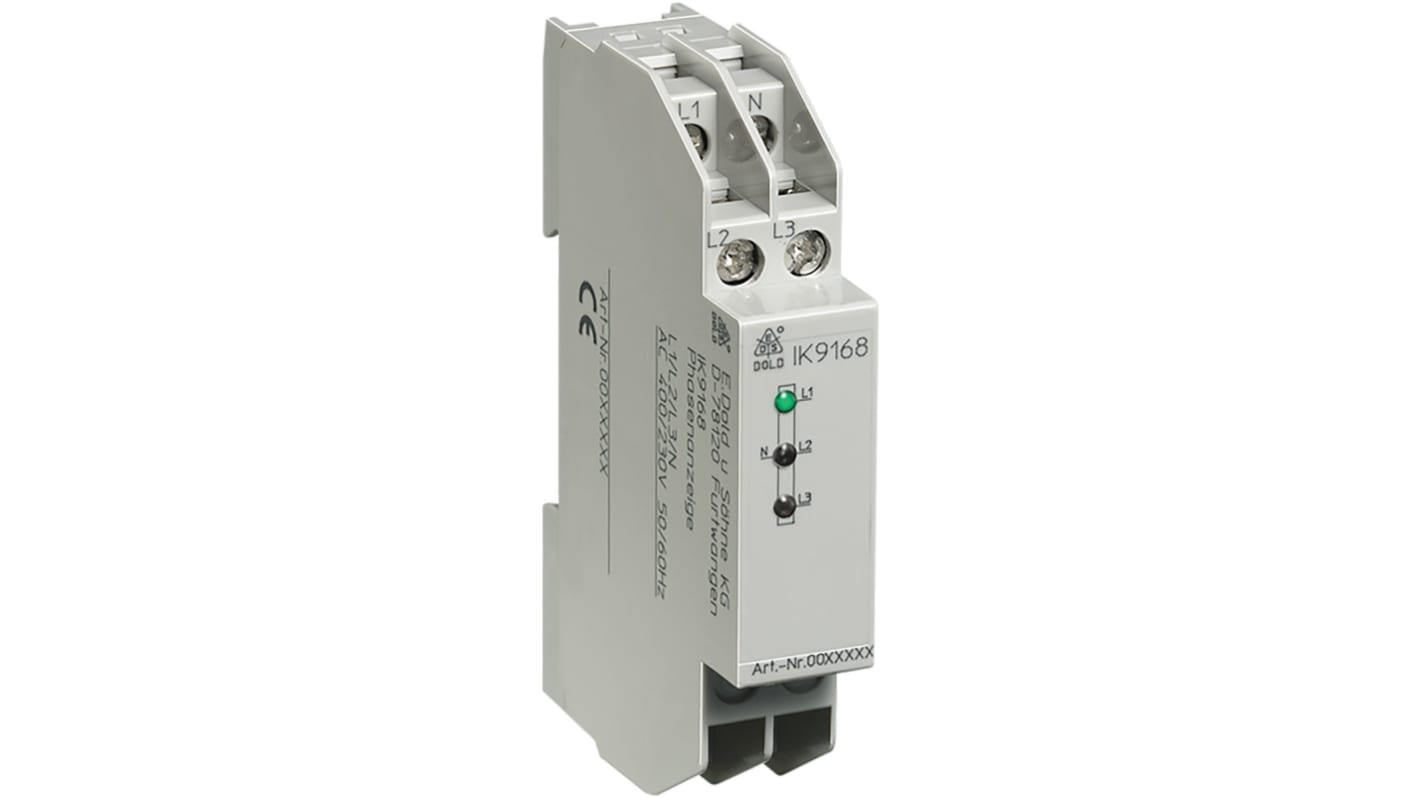

Dold Phase Monitoring Relay, 3 Phase, DIN Rail
- RS Stock No.:
- 358-6917
- Mfr. Part No.:
- IK9168 3AC50/60Hz 230/400V
- Brand:
- Dold
Subtotal (1 unit)*
£54.84
(exc. VAT)
£65.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £54.84 |
*price indicative
- RS Stock No.:
- 358-6917
- Mfr. Part No.:
- IK9168 3AC50/60Hz 230/400V
- Brand:
- Dold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Dold | |
Monitoring Application | Phase | |
Electrical Phase | 3 | |
Mounting Type | DIN Rail | |
Phase Sensitivity | Phase Sequence | |
Series | IK 9168 | |
Dimensions | 59 x 17.5 x 90mm | |
Maximum Operating Temperature | +60°C | |
Width | 17.5mm | |
Minimum Operating Temperature | -20°C | |
Length | 59mm | |
Operating Temperature Range | +60°C | |
Height | 90mm | |
Select all | ||
---|---|---|
Brand Dold | ||
Monitoring Application Phase | ||
Electrical Phase 3 | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Sequence | ||
Series IK 9168 | ||
Dimensions 59 x 17.5 x 90mm | ||
Maximum Operating Temperature +60°C | ||
Width 17.5mm | ||
Minimum Operating Temperature -20°C | ||
Length 59mm | ||
Operating Temperature Range +60°C | ||
Height 90mm | ||
- COO (Country of Origin):
- DE
IK9169 phase monitor, IK9168 phase monitor display
Detection of phase failure in three-phase systems
Single-phase connection also an option
Rest current principle
Adjustable phase sequence
LED display for each phase
17.5 mm overall width
Single-phase connection also an option
Rest current principle
Adjustable phase sequence
LED display for each phase
17.5 mm overall width
Additional function on IK9169 phase monitor
Meets IEC 255, VDE 0435 Part 303
Phase Sequence/Failure Relays
Monitoring of 3 phase supplies
Orange housing manufactured to DIN 43 880
DIN rail mount
Orange housing manufactured to DIN 43 880
DIN rail mount
