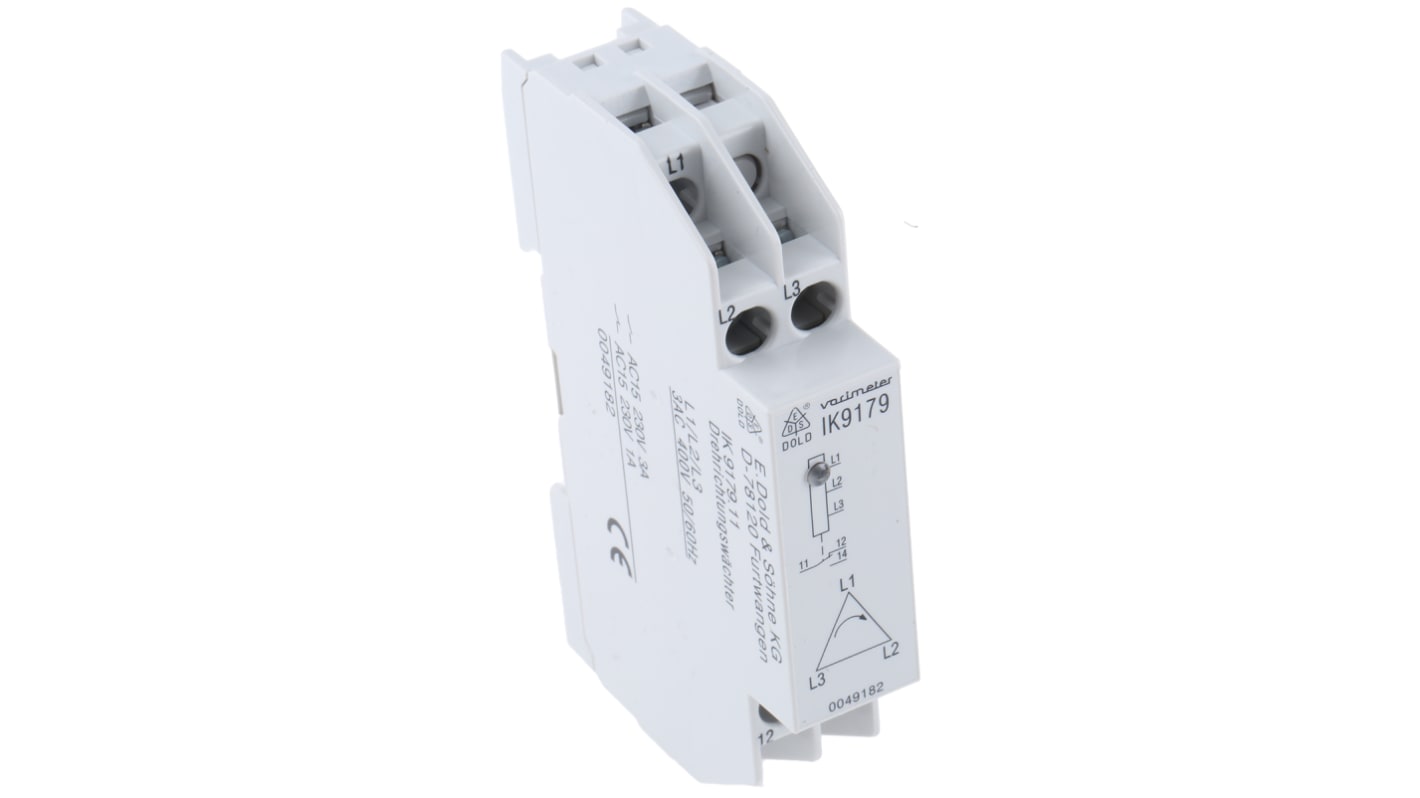

Dold Phase Monitoring Relay, 3 Phase, SPDT, DIN Rail
- RS Stock No.:
- 327-7679
- Mfr. Part No.:
- IK9179.11 3AC50/60Hz 400V
- Brand:
- Dold
Subtotal (1 unit)*
£80.66
(exc. VAT)
£96.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 20 October 2025
- Plus 7 unit(s) shipping from 03 November 2025
- Plus 4 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £80.66 |
*price indicative
- RS Stock No.:
- 327-7679
- Mfr. Part No.:
- IK9179.11 3AC50/60Hz 400V
- Brand:
- Dold
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dold | |
| Monitoring Application | Phase | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Phase Sensitivity | Phase Sequence | |
| Series | IK 9179 | |
| Minimum Operating Temperature | -20°C | |
| Dimensions | 61 x 17.5 x 90mm | |
| Maximum Operating Temperature | +60°C | |
| Height | 90mm | |
| Length | 61mm | |
| Operating Temperature Range | +60°C | |
| Width | 17.5mm | |
Select all | ||
|---|---|---|
Brand Dold | ||
Monitoring Application Phase | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Phase Sensitivity Phase Sequence | ||
Series IK 9179 | ||
Minimum Operating Temperature -20°C | ||
Dimensions 61 x 17.5 x 90mm | ||
Maximum Operating Temperature +60°C | ||
Height 90mm | ||
Length 61mm | ||
Operating Temperature Range +60°C | ||
Width 17.5mm | ||
- COO (Country of Origin):
- DE
IK9179 three-phase monitor and IK9178 display
Monitoring of three-phase systems for direction of rotation
No auxiliary voltage
LED display lights up when a clockwise rotation field is detected
17.5 mm overall width
In accordance with IEC 255, VDE 0435 Section 303
No auxiliary voltage
LED display lights up when a clockwise rotation field is detected
17.5 mm overall width
In accordance with IEC 255, VDE 0435 Section 303
Additional function on IK9179 three-phase monitor
Output 1 changeover contact for control purposes
Phase Sequence/Failure Relays
Monitoring of 3 phase supplies
Orange housing manufactured to DIN 43 880
DIN rail mount
Orange housing manufactured to DIN 43 880
DIN rail mount
