Siemens Monitoring Relay, 3 Phase, DIN Rail, 250 V dc, 100V ac, 230 V ac
- RS Stock No.:
- 275-2189
- Mfr. Part No.:
- 7SR1814-2NC87-0CA0
- Brand:
- Siemens
Subtotal (1 unit)*
£6,220.88
(exc. VAT)
£7,465.06
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £6,220.88 |
*price indicative
- RS Stock No.:
- 275-2189
- Mfr. Part No.:
- 7SR1814-2NC87-0CA0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Mount Type | DIN Rail | |
| Terminal Type | Plug-In | |
| Supply DC Voltage | 250 V dc | |
| Supply AC Voltage | 100, 230V ac | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Width | 155.5mm | |
| Series | Solkor 7SR18 | |
| Height | 168mm | |
| Length | 216.5mm | |
| Standards/Approvals | ANSI 50BF, IEC 61850, IEC 60870-5-103, ANSI 37, ANSi 49 | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Mount Type DIN Rail | ||
Terminal Type Plug-In | ||
Supply DC Voltage 250 V dc | ||
Supply AC Voltage 100, 230V ac | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Width 155.5mm | ||
Series Solkor 7SR18 | ||
Height 168mm | ||
Length 216.5mm | ||
Standards/Approvals ANSI 50BF, IEC 61850, IEC 60870-5-103, ANSI 37, ANSi 49 | ||

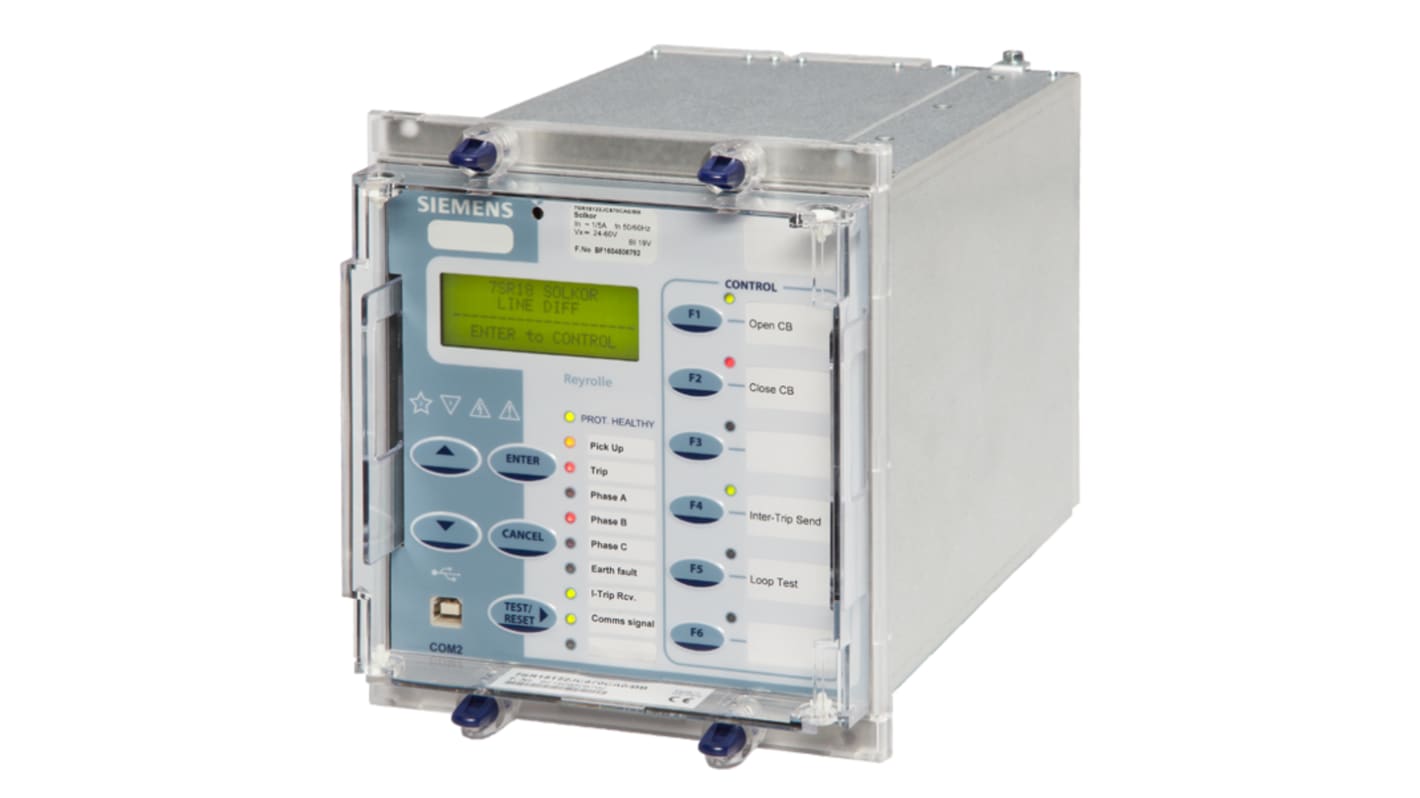

The Siemens Solkor differential protection relay provides logic editor and fault recording for analog and digital signals. It measures the standard operational value. It features molded case of size E6 and 20 Character x 4 line Backlit LCD.
Three pole tripping
Undercurrent protection ANSI 37
Thermal overload protection ANSI 49
Circuit breaker failure protection ANSI 50BF
