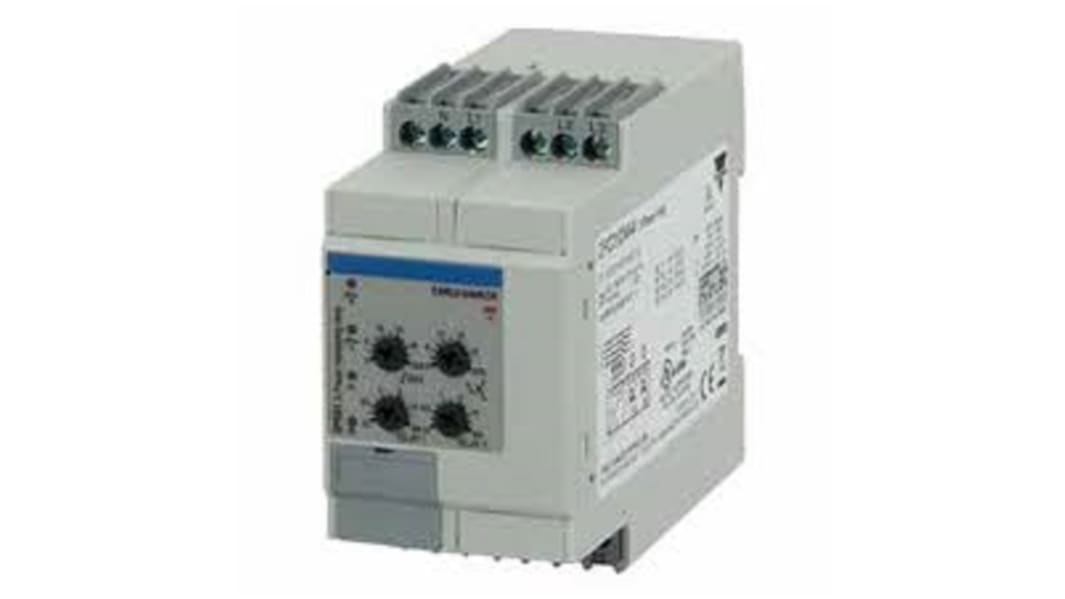

Carlo Gavazzi Monitoring Relay, 3 Phase, 208/480 V ac Monitor Range, SPDT, DIN Rail, 208V ac, 690 V ac
- RS Stock No.:
- 209-8592
- Mfr. Part No.:
- DPC01DM44
- Brand:
- Carlo Gavazzi
Subtotal (1 unit)*
£220.22
(exc. VAT)
£264.26
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 5 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £220.22 |
*price indicative
- RS Stock No.:
- 209-8592
- Mfr. Part No.:
- DPC01DM44
- Brand:
- Carlo Gavazzi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Carlo Gavazzi | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 3 | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Power Consumption | 4.5VA | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Supply AC Voltage | 208, 690V ac | |
| Contact Current | 8A | |
| Monitoring Voltage Range | 208/480 V ac | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 80mm | |
| Length | 99.5mm | |
| Series | DPC01 | |
| Width | 45mm | |
| Standards/Approvals | RoHS, CE, CSA, CCC, UL | |
| Select all | ||
|---|---|---|
Brand Carlo Gavazzi | ||
Product Type Monitoring Relay | ||
Electrical Phase 3 | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Power Consumption 4.5VA | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Supply AC Voltage 208, 690V ac | ||
Contact Current 8A | ||
Monitoring Voltage Range 208/480 V ac | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 60°C | ||
Height 80mm | ||
Length 99.5mm | ||
Series DPC01 | ||
Width 45mm | ||
Standards/Approvals RoHS, CE, CSA, CCC, UL | ||
- COO (Country of Origin):
- IT
The Carlo Gavazzi voltage monitoring relay can operate on both 3P and 3P+N systems, monitoring phase loss and phase sequence, overvoltage and undervoltage, voltage asymmetry and tolerance. The power supply is provided by the monitored mains. It has two independent delay functions, up to 30s, for over/under voltage and asymmetry/tolerance alarms.
Wide input voltage range and frequency
Adjustable voltage levels, asymmetry, tolerance and time delay
Adjustable power ON delay
Output and status LED indication
Ultra-high harmonic immunity
