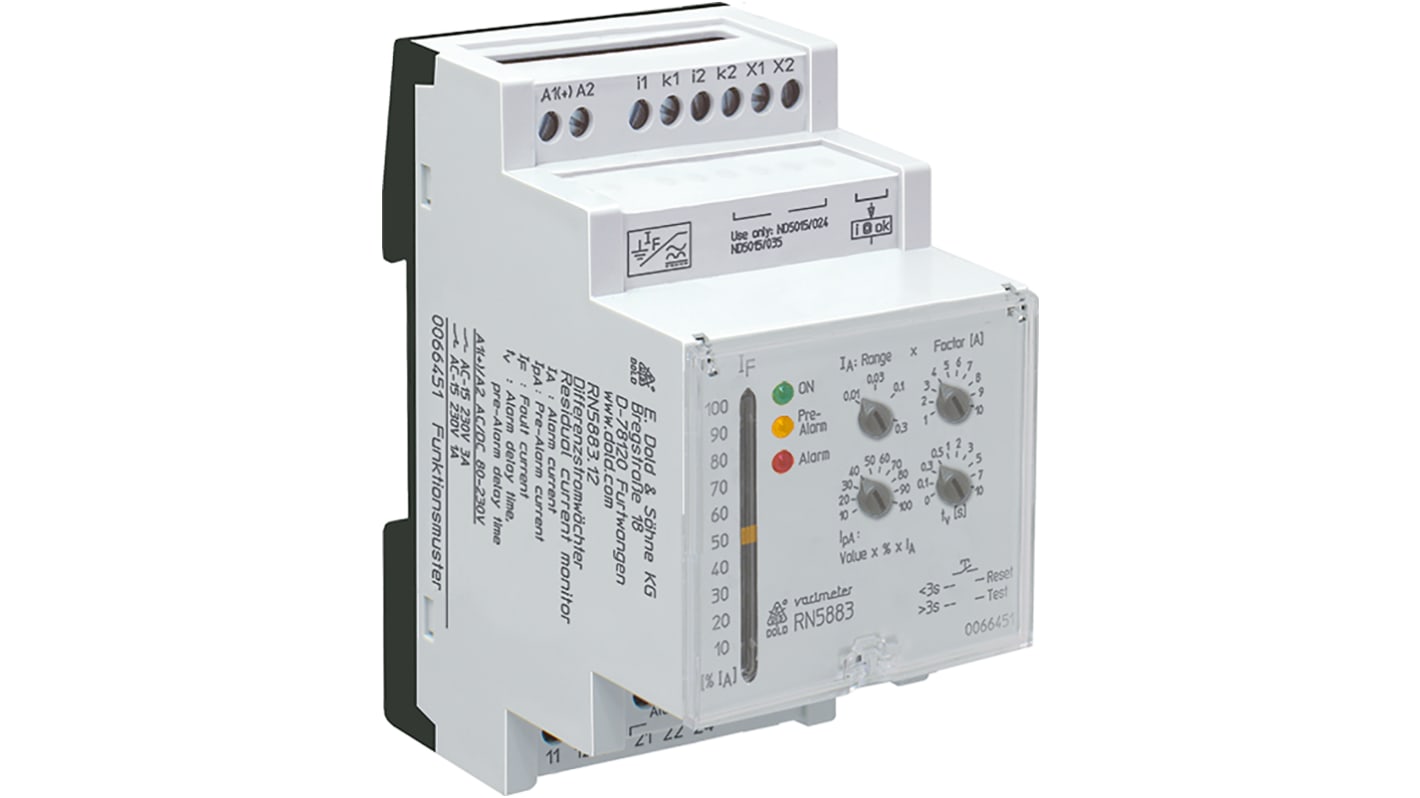

Dold Residual Current Monitoring Relay, 2 Phase, DPDT, DIN Rail

View all Monitoring Relays

Subtotal (1 unit)*

£520.53

(exc. VAT)

£624.64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£520.53

*price indicative

RS Stock No.:
181-2768
Mfr. Part No.:
RN5883.12/61 AC/DC24-80V 10-3000mA 0-10s
Brand:
Dold
Find similar products by selecting one or more attributes.
Select all

Brand

Dold

Monitoring Application

Residual Current

Electrical Phase

2

Contact Configuration

DPDT

Mounting Type

DIN Rail

Minimum Current Sensed

10mA

Maximum Current Sensed

3000mA

Time Delay

0 → 10s

Series

RN5883

Length

71mm

Maximum Operating Temperature

+60°C

Dimensions

71 x 52.5 x 90mm

Minimum Operating Temperature

-40°C

Height

90mm

Width

52.5mm

Current Range

10 → 3000mA

Operating Temperature Range

+60°C

Terminal Type

Screw

COO (Country of Origin):
DE
For AC and DC systems Type B
To detect earth faults in grounded voltage systems
4 setting ranges from 10 mA to 3 A
Manual reset, with alarm and pre-warning
With adjustable switching delay
Energized or de-energized on trip
LED indicator for operation, pre-alarm and alarm
With test function
LED-chain indicates fault current
As option with analogue output
Broken wire detection
Width: 52.5 mm
Advantages / Customer benefit
Preventive fire and system protection
Increasing the availability of plants by early fault detection
Universal usage at AC/DC mains
Protection against manipulation by seal able transparent cover
over setting switches
Application
The residual current monitor type B is designed to monitor DC systems
and AC systems up to 250 Hz.
