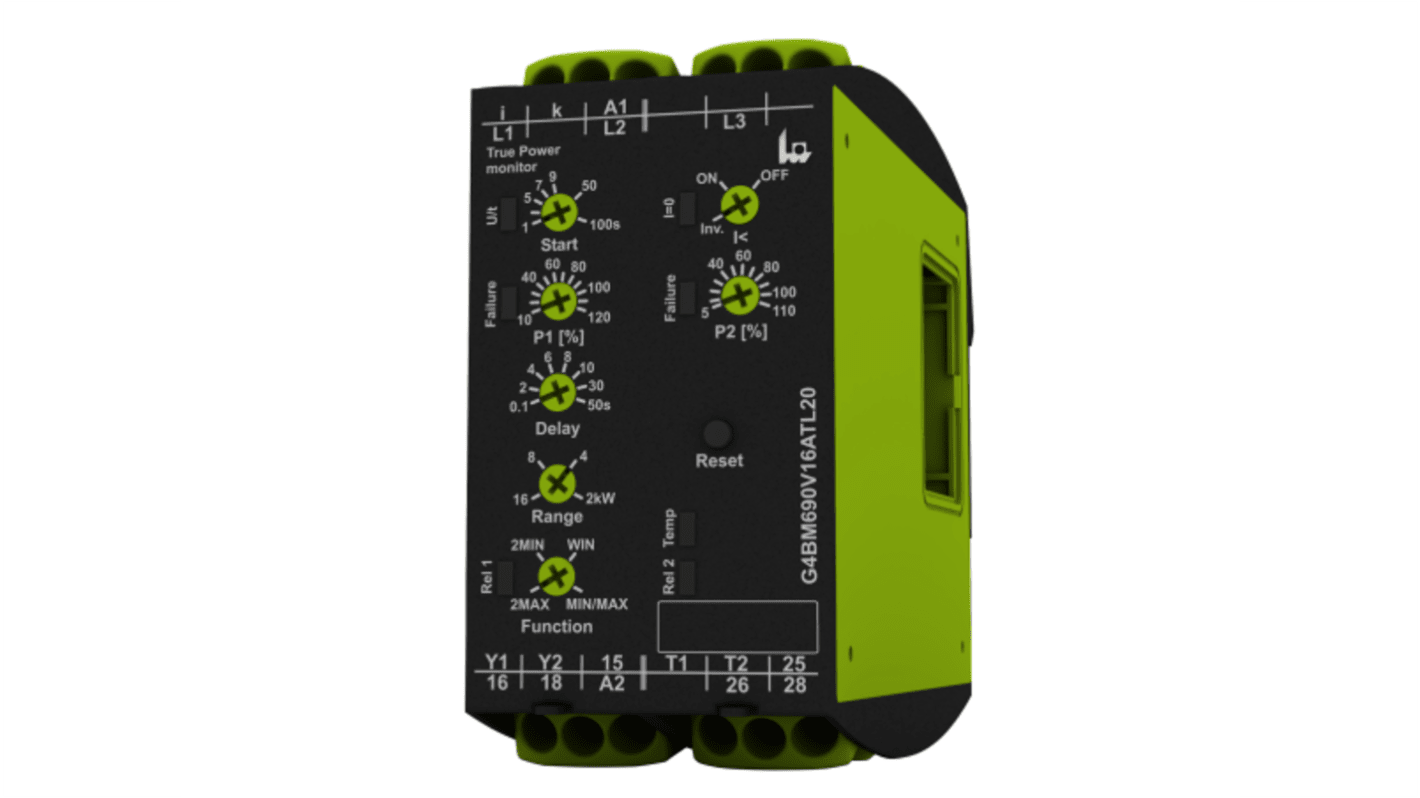

Tele Phase/Voltage Monitoring Relays, 3 Phase, 2 CO, DIN Rail, 12V ac, 500 V ac
- RS Stock No.:
- 618-813
- Mfr. Part No.:
- G4BM690V16ATL20
- Brand:
- Tele
Subtotal (1 unit)*
£532.51
(exc. VAT)
£639.01
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £532.51 |
*price indicative
- RS Stock No.:
- 618-813
- Mfr. Part No.:
- G4BM690V16ATL20
- Brand:
- Tele
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tele | |
| Product Type | Phase/Voltage Monitoring Relays | |
| Electrical Phase | 3 | |
| Function | Offset Double Ring End, Motor Control, Locking, Monitoring, Window | |
| Contact Configuration | 2 CO | |
| Mount Type | DIN Rail | |
| Switching Voltage | 250V ac | |
| Power Consumption | 3W | |
| Terminal Type | Shockproof | |
| IP Rating | IP20, IP40 | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -25°C | |
| Supply AC Voltage | 12, 500V ac | |
| Maximum Operating Temperature | 55°C | |
| Series | GAMMA | |
| Width | 45mm | |
| Height | 90mm | |
| Standards/Approvals | IEC 60068-1, IEC 60664-1, EN 60255-22-2, EN 60715, IEC 60947-5-1, EN 60947-8, IEC 60721-3-3 Class 3K3, UL 508, EN 60255-27, VBG 4, EN 60255-22-1 | |
| Length | 103mm | |
| Select all | ||
|---|---|---|
Brand Tele | ||
Product Type Phase/Voltage Monitoring Relays | ||
Electrical Phase 3 | ||
Function Offset Double Ring End, Motor Control, Locking, Monitoring, Window | ||
Contact Configuration 2 CO | ||
Mount Type DIN Rail | ||
Switching Voltage 250V ac | ||
Power Consumption 3W | ||
Terminal Type Shockproof | ||
IP Rating IP20, IP40 | ||
Contact Current 16A | ||
Minimum Operating Temperature -25°C | ||
Supply AC Voltage 12, 500V ac | ||
Maximum Operating Temperature 55°C | ||
Series GAMMA | ||
Width 45mm | ||
Height 90mm | ||
Standards/Approvals IEC 60068-1, IEC 60664-1, EN 60255-22-2, EN 60715, IEC 60947-5-1, EN 60947-8, IEC 60721-3-3 Class 3K3, UL 508, EN 60255-27, VBG 4, EN 60255-22-1 | ||
Length 103mm | ||
- COO (Country of Origin):
- AT
The Tele Multifunctional true power monitoring relay designed for 1 or 3 phase electrical systems. With a width of just 45mm, it offers digital settings and features such as overload, underload, minimum, maximum, and window monitoring, along with fault latch capabilities and recognition of disconnected loads. The device also includes temperature monitoring for motor windings, supporting up to six PTC sensors. It is suitable for variable frequency drives (VFDs) operating at frequencies between 10 to 100Hz.
Self extinguishing plastic housing
IP40 and IP20 protection rated
Vibration and shock resistance
Mounted on DIN Rail TS 35 according to EN 60715
