Tele Phase/Voltage Monitoring Relays, 3 Phase, 400 V ac Monitor Range, 2 CO, DIN Rail, 230V ac
- RS Stock No.:
- 618-805
- Mfr. Part No.:
- G4CM690V16ATL20 230VAC
- Brand:
- Tele
Subtotal (1 unit)*
£339.21
(exc. VAT)
£407.05
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £339.21 |
*price indicative
- RS Stock No.:
- 618-805
- Mfr. Part No.:
- G4CM690V16ATL20 230VAC
- Brand:
- Tele
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tele | |
| Product Type | Phase/Voltage Monitoring Relays | |
| Function | Motor Control, Monitoring | |
| Electrical Phase | 3 | |
| Contact Configuration | 2 CO | |
| Mount Type | DIN Rail | |
| Switching Voltage | 250V ac | |
| Power Consumption | 2.5VA | |
| IP Rating | IP20, IP40 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 8A | |
| Monitoring Voltage Range | 400 V ac | |
| Supply AC Voltage | 230V ac | |
| Maximum Operating Temperature | 55°C | |
| Series | GAMMA | |
| Standards/Approvals | IEC 60721-3-3 Class 3K3, IEC 60068-1, UL 508, EN 60255-22-2, VBG 4, WEEE, IEC 60947-5-1, EN 60255-27, EN 60947-8, IEC 60664-1, EN 60255-22-1, EN 60715 | |
| Length | 9mm | |
| Width | 45mm | |
| Height | 103mm | |
| Select all | ||
|---|---|---|
Brand Tele | ||
Product Type Phase/Voltage Monitoring Relays | ||
Function Motor Control, Monitoring | ||
Electrical Phase 3 | ||
Contact Configuration 2 CO | ||
Mount Type DIN Rail | ||
Switching Voltage 250V ac | ||
Power Consumption 2.5VA | ||
IP Rating IP20, IP40 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 8A | ||
Monitoring Voltage Range 400 V ac | ||
Supply AC Voltage 230V ac | ||
Maximum Operating Temperature 55°C | ||
Series GAMMA | ||
Standards/Approvals IEC 60721-3-3 Class 3K3, IEC 60068-1, UL 508, EN 60255-22-2, VBG 4, WEEE, IEC 60947-5-1, EN 60255-27, EN 60947-8, IEC 60664-1, EN 60255-22-1, EN 60715 | ||
Length 9mm | ||
Width 45mm | ||
Height 103mm | ||
- COO (Country of Origin):
- AT

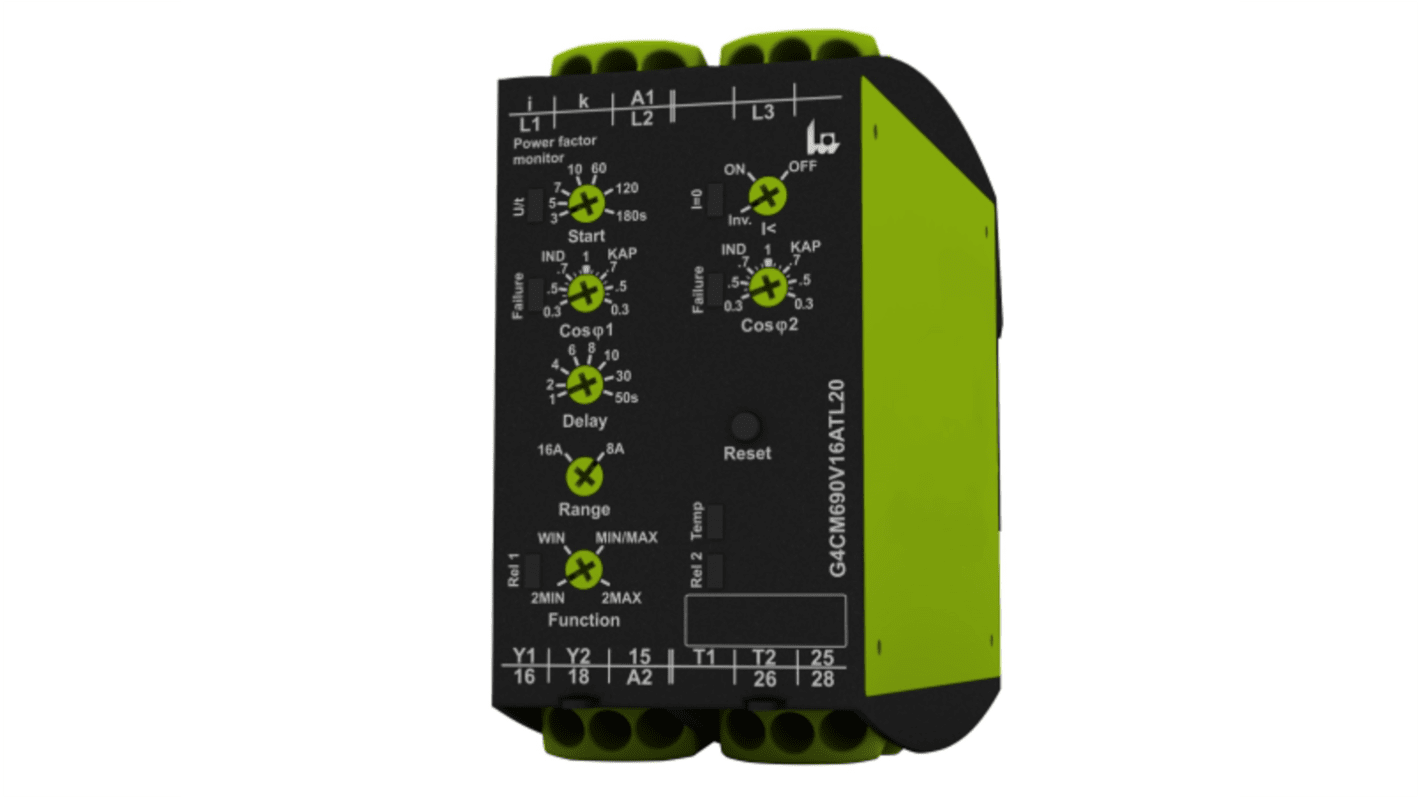

The Tele Multifunctional power factor monitoring relay designed for 1 or 3 phase electrical systems. Measuring just 22.5mm in width, it offers digital settings and features such as overload, underload, minimum, maximum, and window monitoring, along with fault latch capabilities and recognition of disconnected loads. The device also includes temperature monitoring for motor windings, supporting up to six PTC sensors. It is suitable for variable frequency drives (VFDs) operating at frequencies between 10 to 100Hz.
Self extinguishing plastic housing
IP40 and IP20 protection rated
Vibration and shock resistance
Mounted on DIN Rail TS 35 according to EN 60715
