Tele Monitoring Relay, 1, 3 Phase, 400 V ac Monitor Range, Surface Mount, 110V ac, 230 V ac 24 V dc
- RS Stock No.:
- 618-814
- Mfr. Part No.:
- NA003.COM-M64
- Brand:
- Tele
Subtotal (1 unit)*
£470.42
(exc. VAT)
£564.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £470.42 |
*price indicative
- RS Stock No.:
- 618-814
- Mfr. Part No.:
- NA003.COM-M64
- Brand:
- Tele
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tele | |
| Product Type | Monitoring Relay | |
| Electrical Phase | 1, 3 | |
| Mount Type | Surface Mount | |
| Terminal Type | Screw | |
| Monitoring Voltage Range | 400 V ac | |
| Supply DC Voltage | 24 V dc | |
| Supply AC Voltage | 110V ac, 230V ac | |
| Standards/Approvals | G99-1-3 LV:2018, VDE 0126-1-1:2013, AS/NZS 4777.2:2020, EN50549-1:2019, C10/11:2021, NRS 097-2-1:2017, VDE-AR-N 4105:2018, EN50438:2013, G99-1-3 HV:2018, CEI 0-21, G98-1-2:2018, EN50549-2:2019, EN 60715 | |
| Series | RE - NA003-M64 | |
| Select all | ||
|---|---|---|
Brand Tele | ||
Product Type Monitoring Relay | ||
Electrical Phase 1, 3 | ||
Mount Type Surface Mount | ||
Terminal Type Screw | ||
Monitoring Voltage Range 400 V ac | ||
Supply DC Voltage 24 V dc | ||
Supply AC Voltage 110V ac, 230V ac | ||
Standards/Approvals G99-1-3 LV:2018, VDE 0126-1-1:2013, AS/NZS 4777.2:2020, EN50549-1:2019, C10/11:2021, NRS 097-2-1:2017, VDE-AR-N 4105:2018, EN50438:2013, G99-1-3 HV:2018, CEI 0-21, G98-1-2:2018, EN50549-2:2019, EN 60715 | ||
Series RE - NA003-M64 | ||
- COO (Country of Origin):
- AT

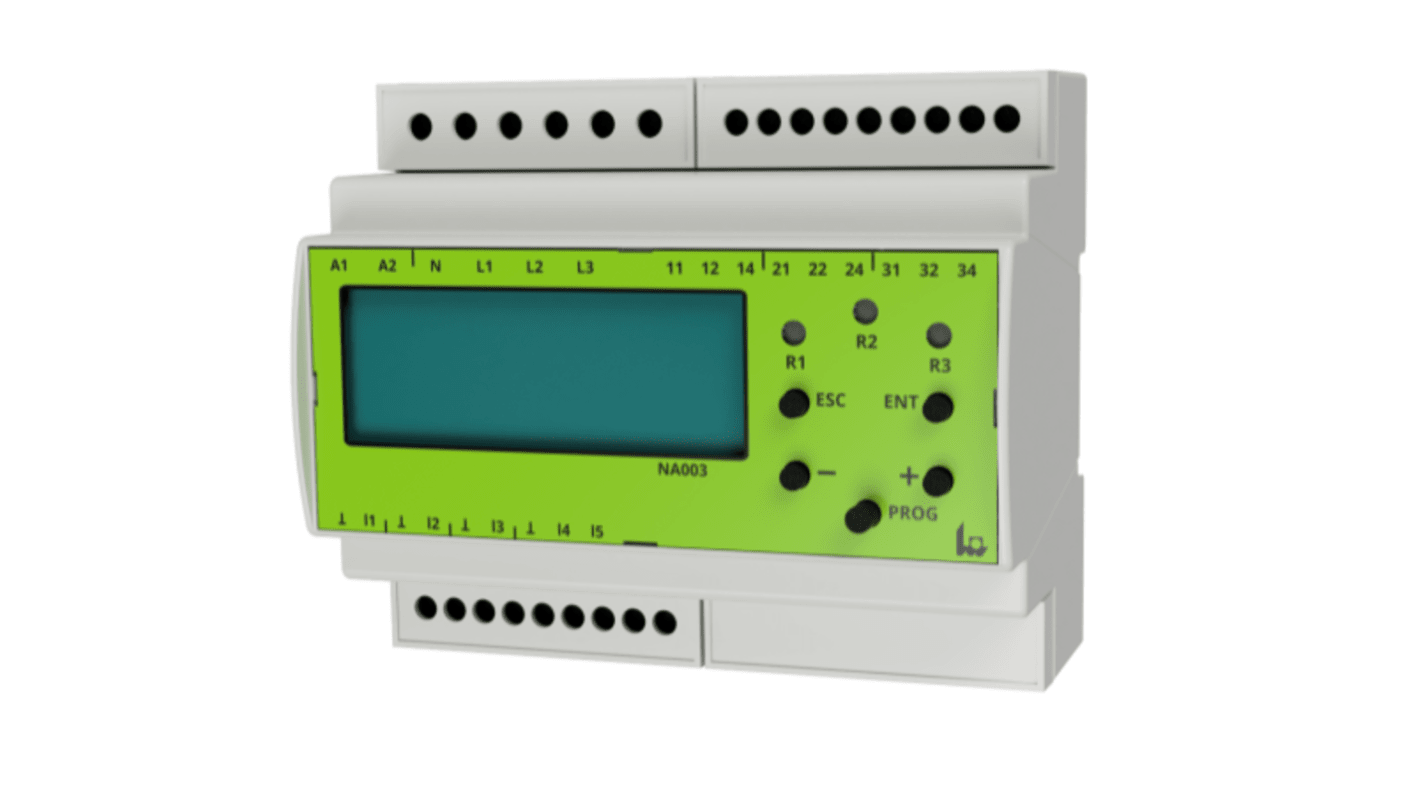

The Tele Multifunctional grid and system protection relay features a Modbus RTU interface via RS485, enabling remote monitoring and control. Its functional safety is ensured through an internal redundant design, adhering to international standards. The relay supports supply voltages of 24V DC and 110 to 240V AC, with a measuring voltage range of up to 3 x 400/230V AC.
3 changeover contacts
Series installation Width 107 mm
Installation type
