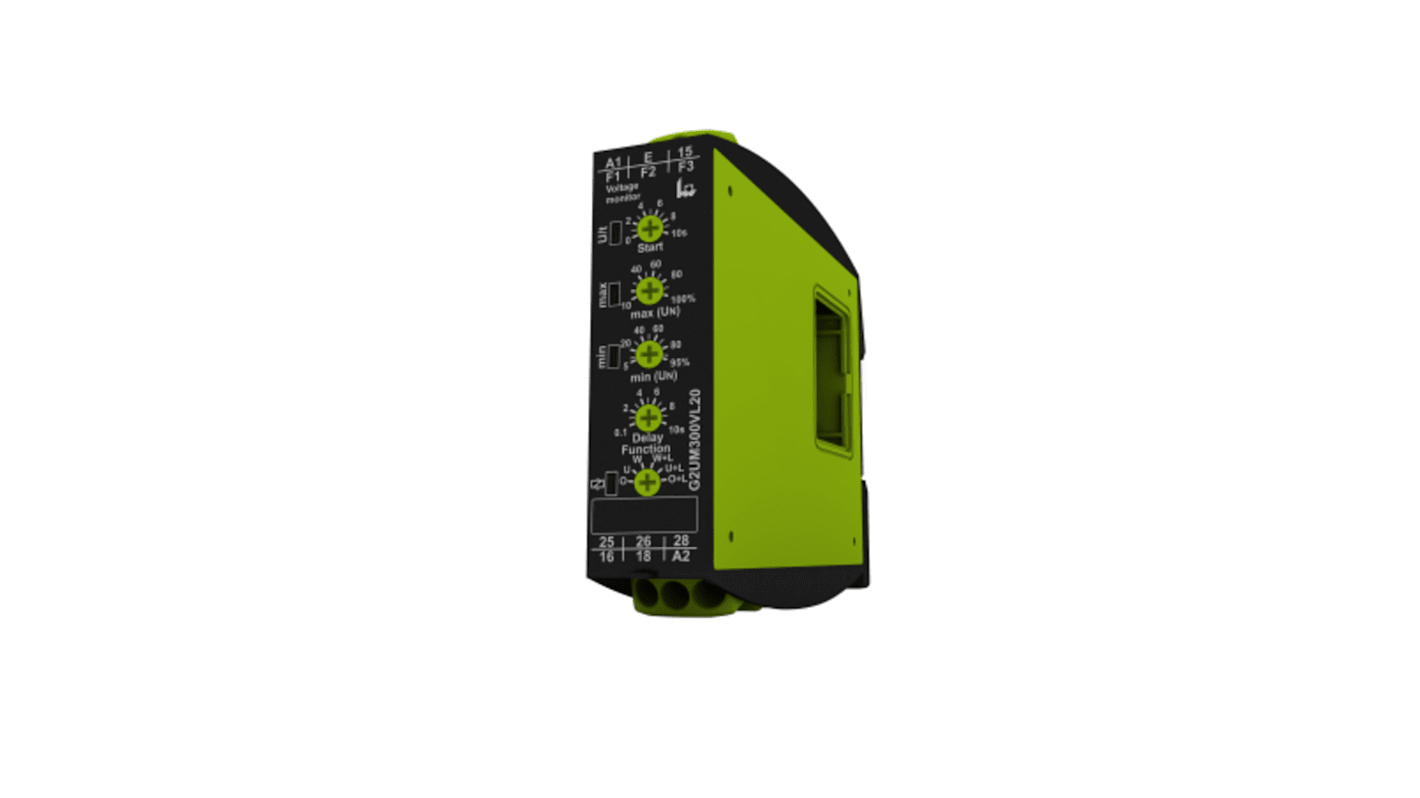

Tele Monitoring Relay, 1 Phase, DPDT, DIN Rail to 20A, 24 V dc, 12/400 V ac

View all Monitoring Relays

Subtotal (1 unit)*

£131.30

(exc. VAT)

£157.56

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£131.30

*price indicative

RS Stock No.:
287-1896
Distrelec Article No.:
137-54-738
Mfr. Part No.:
G2UM300VL20
Brand:
Tele
Find similar products by selecting one or more attributes.
Select all

Brand

Tele

Product Type

Monitoring Relay

Electrical Phase

1

Contact Configuration

DPDT

Mount Type

DIN Rail

Maximum Current Sensed

20A

Switching Voltage

250 V

Power Consumption

1.5W

Terminal Type

Shockproof

Time Delay

0.1 to 10 s

IP Rating

IP20, IP40

Supply AC Voltage

12/400 V ac

Relay Contact Current

3 A

Supply DC Voltage

24 V dc

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

55°C

Width

22.5 mm

Standards/Approvals

IEC 60068-2-6, IEC 60068-1, UL 508, IEC 60947-5-1, IEC 60068-2-27, IEC 60664-1, EN 60715

Series

GAMMA

COO (Country of Origin):
AT
The Tele monitoring relay provides AC/DC voltage monitoring in 1-phase mains with adjustable thresholds. It offers timing for start-up suppression and tripping delay, with separate adjustability for each. Additionally, it features various selectable functions that are chosen via a rotary switch.

Self-extinguishing plastic housing

Mounted on DIN-Rail TS 35 according to EN 60715

Tightening torque maximum 1 Nm
