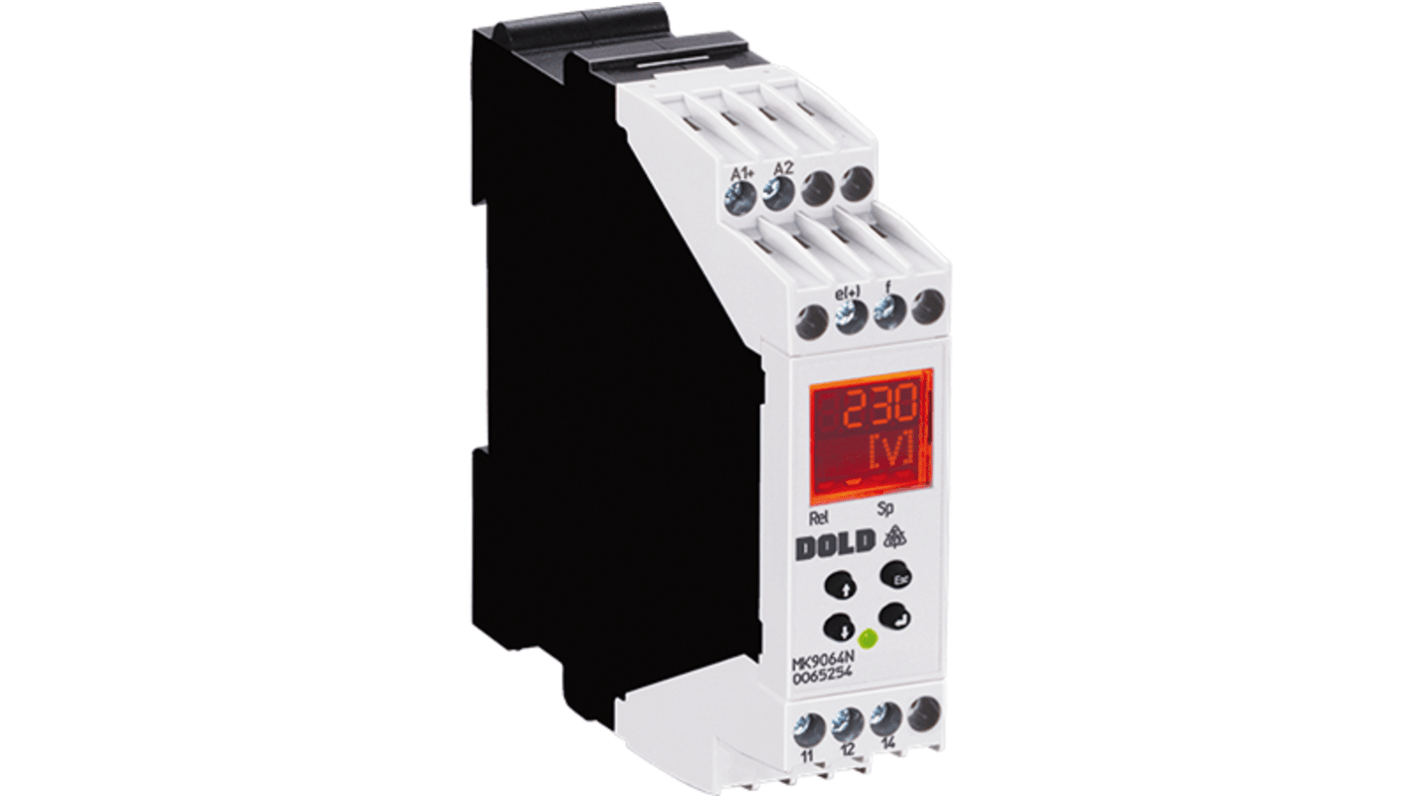

Dold Monitoring Relay, 1 Phase, 1 CO, DIN Rail, 15mA to 50mA, 24 V dc, 230 V ac

View all Monitoring Relays

Subtotal (1 unit)*

£232.89

(exc. VAT)

£279.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£232.89

*price indicative

RS Stock No.:
427-647
Mfr. Part No.:
MK9064N.11 AC/DC12-300V UH=DC24V
Brand:
Dold
Find similar products by selecting one or more attributes.
Select all

Brand

Dold

Product Type

Monitoring Relay

Electrical Phase

1

Contact Configuration

1 CO

Mount Type

DIN Rail

Minimum Current Sensed

15mA

Switching Voltage

230 V

Maximum Current Sensed

50mA

Current Sensitivity

8 A

Terminal Type

Screw

IP Rating

IP40, IP20

Minimum Operating Temperature

-20°C

Relay Contact Current

3 A

Supply AC Voltage

230 V ac

Supply DC Voltage

24 V dc

Maximum Operating Temperature

60°C

Height

90mm

Standards/Approvals

IEC/EN 61000-4-4, IEC/EN 61 000-4-6, RoHS, IEC 60664-1, IEC/EN 61000-4-3, IEC/EN 61000-4-2, IEC/EN 61 000-4-5

Length

99mm

Width

22.5 mm

COO (Country of Origin):
DE
The Dold voltage relays of the varimeter family provide a solution for an optimized monitoring of the function of an electrical device. Single-phase AC and also DC can be measured, under voltage, overvoltage and voltage window are monitored and the measured value is displayed on the front. Of the varimeter family provide a solution for an optimized monitoring of the function of an electrical device. Single-phase AC and also DC can be measured, under voltage, overvoltage and voltage window are monitored and the measured value is displayed on the front.

Auxiliary voltage DC

Output contacts 1 C/O contact

Enclosure design Switch cabinet
