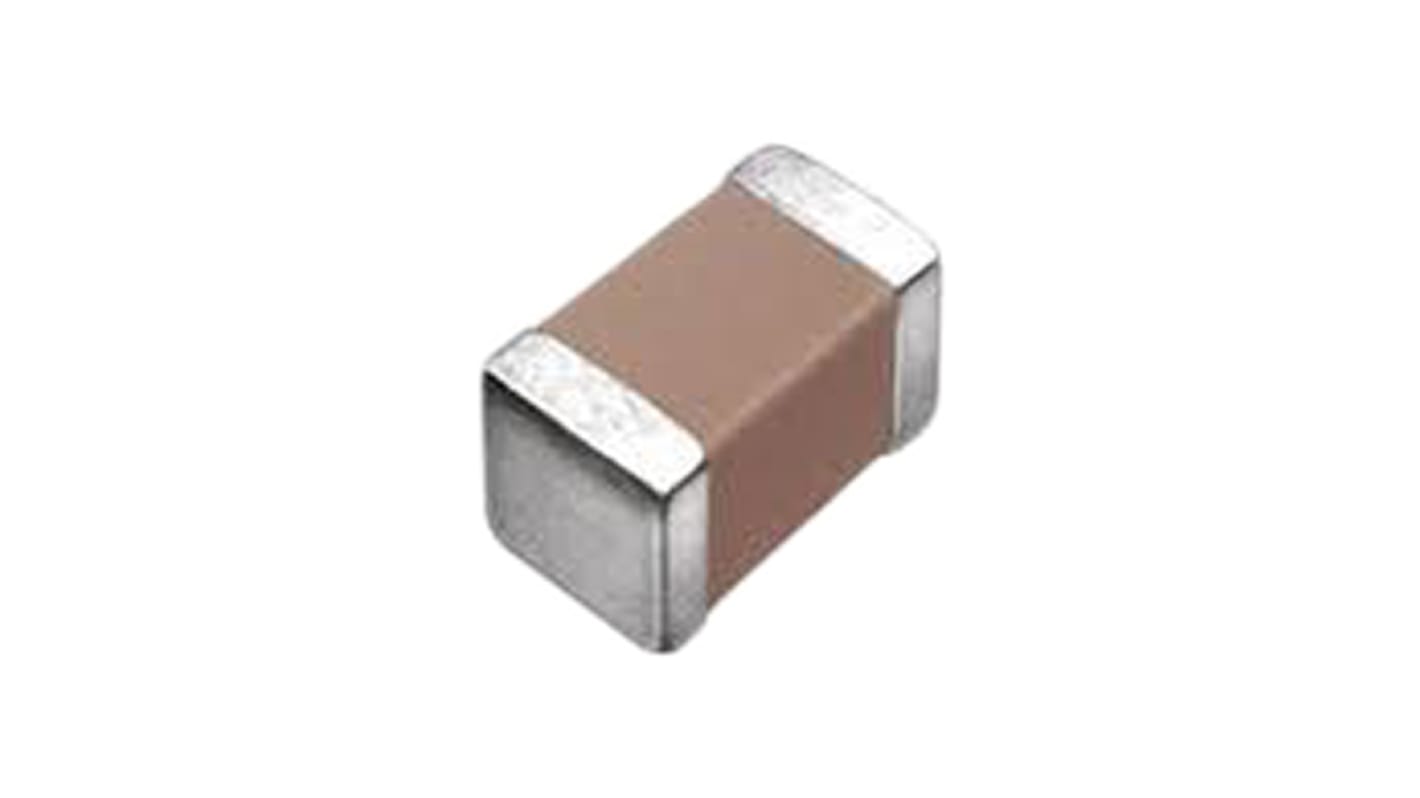

TDK 100nF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±10% , SMD
- RS Stock No.:
- 903-8805
- Mfr. Part No.:
- CGA5L2X7R2A104K160AA
- Brand:
- TDK
450 In stock - FREE next working day delivery available
300 available from Europe for delivery within 5 working day(s).
Price Each (In a Pack of 50)
£0.102
(exc. VAT)
£0.122
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 - 200 | £0.102 | £5.10 |
| 250 - 450 | £0.07 | £3.50 |
| 500 - 950 | £0.063 | £3.15 |
| 1000 - 1950 | £0.055 | £2.75 |
| 2000 + | £0.052 | £2.60 |
| *price indicative | ||
- RS Stock No.:
- 903-8805
- Mfr. Part No.:
- CGA5L2X7R2A104K160AA
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
TDK CGA Automotive 1206 series, X5R, X7R and Y5V Dielectric
From TDK, the CGA Series of Multilayer Ceramic Capacitors (MLCCs) provides a highly reliable solution. Utilising precision technology, this series of MLCCs is constructed with multiple thin ceramic dielectric layers enabling high capacitance. These MLCCs feature low ESR ensuring low self-heating and high ripple resistance. CGA multilayer ceramic capacitors also have low ESL and excellent frequency characteristics.
Features and Benefits:
Excellent heat resistance
Greater mechanical strength
Superior reliability
Guaranteed performance from a matured manufacturing process
Available with a range of dielectrics
Suitable for high accuracy automatic mounting
Low stray capacitance
Applications:
These MLCCs are AEC-Q200 qualified and suitable for automotive applications. Typical applications include automotive battery line smoothing, sensor modules and engine control units. CAG Series ceramic capacitors are ideal for anti-lock brake systems and automotive infotainment systems. Other recommended applications include smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation and agriculture.
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
Specifications
Attribute | Value |
|---|---|
| Capacitance | 100nF |
| Voltage | 100V dc |
| Package/Case | 1206 (3216M) |
| Mounting Type | Surface Mount |
| Dielectric | X7R |
| Tolerance | ±10% |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Series | CGA |
| Terminal Type | Solder |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Suppression Class | Class II |
