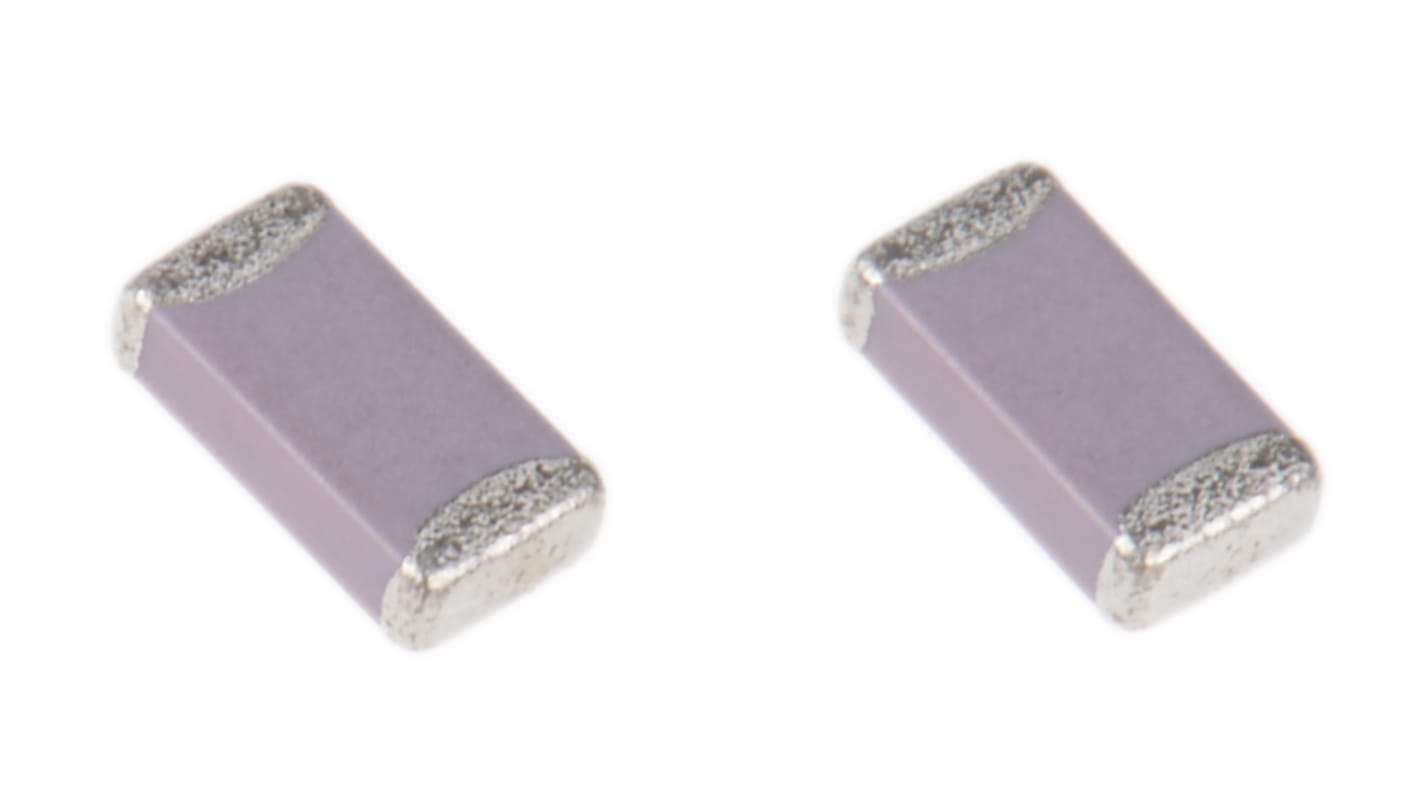

Syfer Technology 150 pF Multilayer Ceramic Capacitor, 1kV dc, ±5 %
- RS Stock No.:
- 774-0569
- Mfr. Part No.:
- 1206J1K00151KXT
- Brand:
- Syfer Technology
Bulk discount available
Subtotal (1 pack of 10 units)*
£2.98
(exc. VAT)
£3.58
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 990 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.298 | £2.98 |
| 100 - 240 | £0.28 | £2.80 |
| 250 - 490 | £0.262 | £2.62 |
| 500 - 990 | £0.247 | £2.47 |
| 1000 + | £0.224 | £2.24 |
*price indicative
- RS Stock No.:
- 774-0569
- Mfr. Part No.:
- 1206J1K00151KXT
- Brand:
- Syfer Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Syfer Technology | |
| Capacitance | 150pF | |
| Product Type | Multilayer Ceramic Capacitor | |
| Voltage | 1kV dc | |
| Construction | Stacked | |
| Package/Case | 1206 | |
| Dielectric | X7R | |
| Tolerance | ±5 % | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Surface Mount | |
| Series | Standard | |
| Width | 1.6mm | |
| Height | 1.6mm | |
| Length | 3.2mm | |
| Standards/Approvals | RoHS, OHSAS 18001, ISO 14001, IECQ-CECC | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Syfer Technology | ||
Capacitance 150pF | ||
Product Type Multilayer Ceramic Capacitor | ||
Voltage 1kV dc | ||
Construction Stacked | ||
Package/Case 1206 | ||
Dielectric X7R | ||
Tolerance ±5 % | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Surface Mount | ||
Series Standard | ||
Width 1.6mm | ||
Height 1.6mm | ||
Length 3.2mm | ||
Standards/Approvals RoHS, OHSAS 18001, ISO 14001, IECQ-CECC | ||
Maximum Operating Temperature 125°C | ||
Syfer MLCC 1206
Suitable for all general purpose and high reliability applications
All are manufactured using Syfer’s unique wet process and incorporate precious metal electrodes
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
