TDK 22nF Multilayer Ceramic Capacitor MLCC, 250V dc V, ±10% , SMD

RS Stock No.:: 179-4946
Mfr. Part No.:: CGA4J3X7R2E223K125AA
Brand:: TDK

TDK 22nF Multilayer Ceramic Capacitor MLCC, 250V dc V, ±10% , SMD

View this category

Available to back order for despatch 16/09/2024

Added

View Basket

Price Each (On a Reel of 2000)

£0.032

(exc. VAT)

£0.038

(inc. VAT)

Units	Per unit	Per Reel*
2000 +	£0.032	£64.00
*price indicative

RS Stock No.:: 179-4946
Mfr. Part No.:: CGA4J3X7R2E223K125AA
Brand:: TDK

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Features
Voltage rating 100 v to 630 v with capacitance range upto 15 microfarad
High capacitance has been achieved through precision technologies that enable the use of multiple thinner ceramic dielectric layers.
Low residual inductance assures superior frequency characteristics.
Excellent DC Bias properties.
A lineup with wide-ranging rated voltages that enables selections that are suitable for needs.
Applications
Application in decoupling, smoothing, and snubber circuits of inverters or DC-DC converters of HEVs or EVs
Counter measure against voltage surge and noise in connectors

Specifications

Attribute	Value
Capacitance	22nF
Voltage	250V dc
Package/Case	0805 (2012M)
Mounting Type	Surface Mount
Dielectric	X7R
Tolerance	±10%

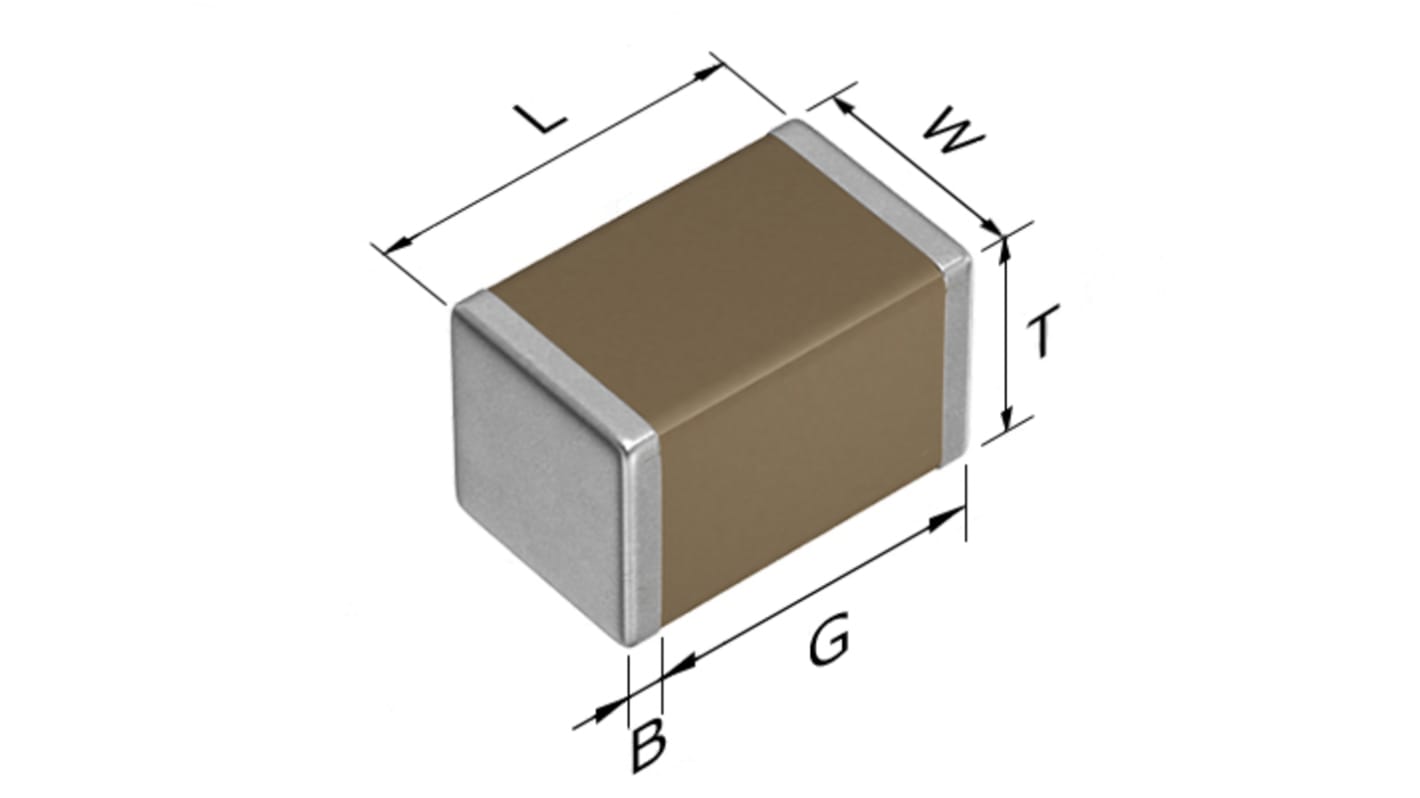

Dimensions	2 x 1.25 x 1.25mm
Length	2mm
Automotive Standard	AEC-Q200
Depth	1.25mm
Height	1.25mm
Series	CGA
Minimum Operating Temperature	-55°C
Suppression Class	Class 2
Maximum Operating Temperature	+125°C
