- RS Stock No.:
- 136-1084
- Mfr. Part No.:
- 12061A102JAT2A
- Brand:
- AVX
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 4000)
£0.021
(exc. VAT)
£0.025
(inc. VAT)
Units | Per unit | Per Reel* |
4000 + | £0.021 | £84.00 |
*price indicative |
- RS Stock No.:
- 136-1084
- Mfr. Part No.:
- 12061A102JAT2A
- Brand:
- AVX
Technical Reference
Legislation and Compliance
Product Details

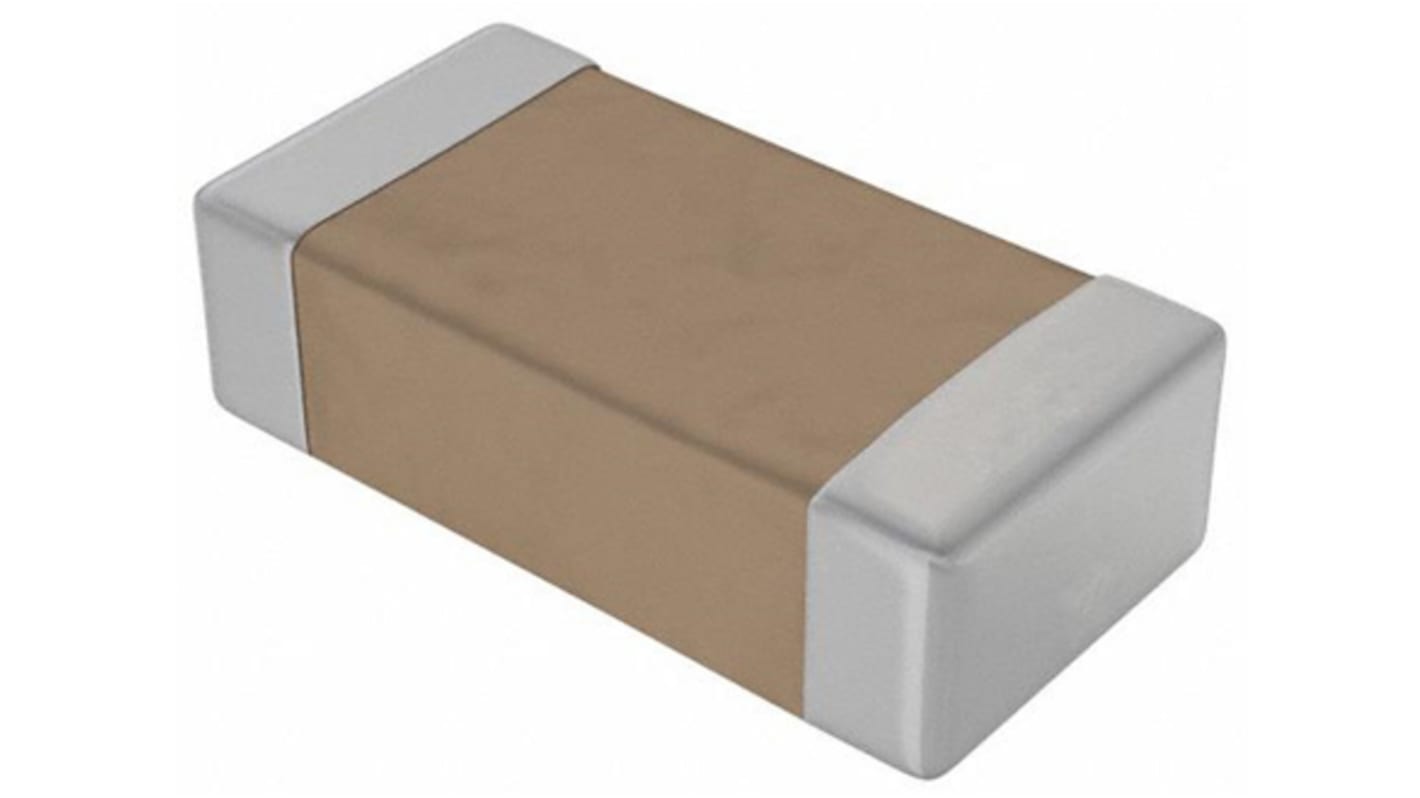

AVX COG(NPO) Dielectric Capacitors
AVX COG (NPO) dielectric capacitors offer one of the most stable capacitor dielectrics available.Capacitance change with temperature
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
Is 0 ±30ppm/°C which is less than ±0.3% C from -55°C to +125°C.Operating Temperature Range 55ºC to +125ºC
1206 Range
C0G (NP0) is the most popular formulation of the "temperature-compensating", EIA Class I ceramic materials
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
X7R formulations are called "temperature stable" ceramics and fall into EIA Class II materials
Y5V formulations are for general-purpose use in a limited temperature range.These characteristics make Y5V ideal for decoupling applications
Specifications
Attribute | Value |
---|---|
Capacitance | 1nF |
Voltage | 100V dc |
Package/Case | 1206 (3216M) |
Mounting Type | Surface Mount |
Dielectric | NP0 (C0G) |
Tolerance | ±5% |
Dimensions | 3.2 x 1.6 x 0.94mm |
Length | 3.2mm |
Depth | 1.6mm |
Height | 0.94mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Terminal Type | Surface Mount |
Suppression Class | Class I |
- RS Stock No.:
- 136-1084
- Mfr. Part No.:
- 12061A102JAT2A
- Brand:
- AVX
