- RS Stock No.:
- 135-5680
- Mfr. Part No.:
- 1812GC332KAT2A
- Brand:
- KYOCERA AVX
800 In stock - FREE next working day delivery available
Price Each (In a Bag of 5)
£0.972
(exc. VAT)
£1.166
(inc. VAT)
Units | Per unit | Per Bag* |
---|---|---|
5 - 45 | £0.972 | £4.86 |
50 - 95 | £0.934 | £4.67 |
100 - 245 | £0.884 | £4.42 |
250 - 495 | £0.808 | £4.04 |
500 + | £0.718 | £3.59 |
*price indicative
- RS Stock No.:
- 135-5680
- Mfr. Part No.:
- 1812GC332KAT2A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details

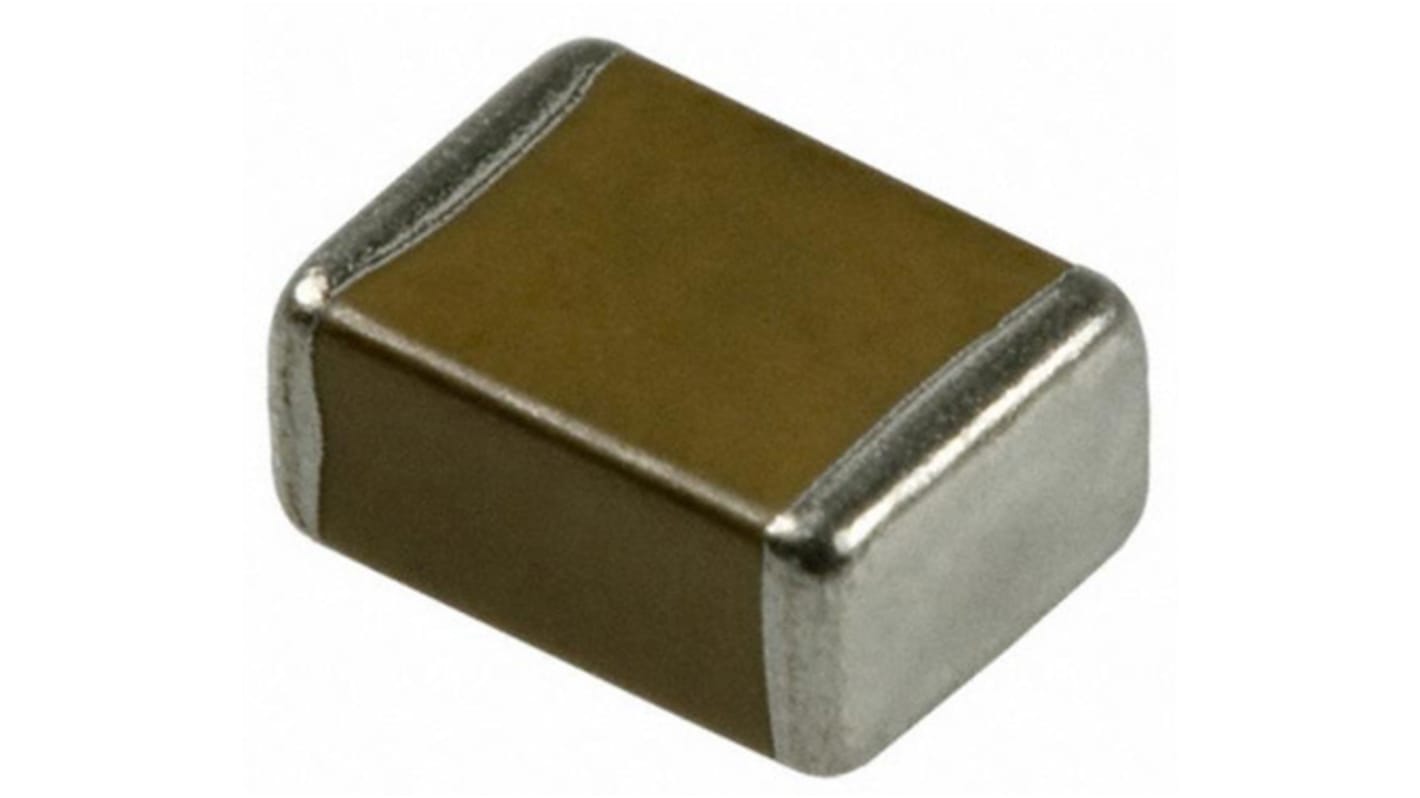

AVX High Voltage 1812 MLCC series
High value, low leakage and small size capacitors for high voltage systems
These capacitors exhibit low ESR at high frequencies
Suitable for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/dc blocking
Capacitors may require protective surface coating to prevent external arcing
These capacitors exhibit low ESR at high frequencies
Suitable for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/dc blocking
Capacitors may require protective surface coating to prevent external arcing
Note
Sorted in order of dielectric, voltage then capacitance.
Specifications
Attribute | Value |
---|---|
Capacitance | 3.3nF |
Voltage | 2kV dc |
Package/Case | 1812 (4532M) |
Mounting Type | Surface Mount |
Dielectric | X7R |
Tolerance | ±10% |
Dimensions | 4.5 x 3.2 x 2.8mm |
Length | 4.5mm |
Depth | 3.2mm |
Height | 2.8mm |
Terminal Type | Surface Mount |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
