- RS Stock No.:
- 135-5679
- Mfr. Part No.:
- 18121C225KAZ2A
- Brand:
- KYOCERA AVX
Available to back order for despatch 30/12/2024
Added
Price Each (In a Bag of 5)
£0.218
(exc. VAT)
£0.262
(inc. VAT)
Units | Per unit | Per Bag* |
5 + | £0.218 | £1.09 |
*price indicative |
- RS Stock No.:
- 135-5679
- Mfr. Part No.:
- 18121C225KAZ2A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details

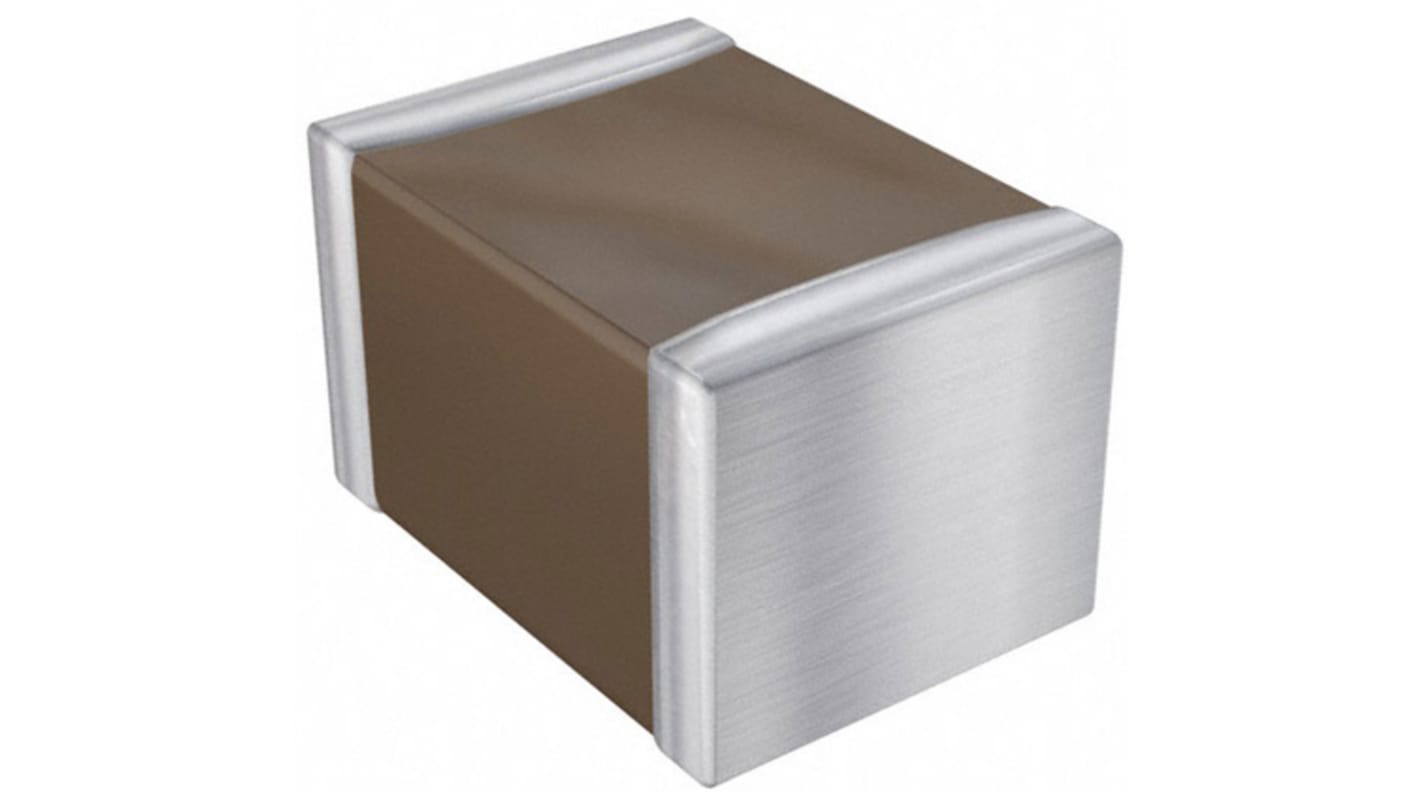

AVX 1812 Series MLCC Capacitors with Flexiterm
AVX 1812 Series MLCC capacitors with FLEXITERM which feature enhanced mechanical strength. FLEXITERM® is designed to enhance the mechanical flexure and temperature cycling performance of a standard ceramic capacitor with an X7R dielectric. These capacitors have High mechanical performance able to withstand, 5 mm bend test
guaranteed, Flexible termination system and reduction in circuit board flex failures.
As well as for automotive applications FLEXITERM® will provide Design Engineers with a satisfactory solution when designing PCBs which may be subject to high levels of board flexure.
guaranteed, Flexible termination system and reduction in circuit board flex failures.
As well as for automotive applications FLEXITERM® will provide Design Engineers with a satisfactory solution when designing PCBs which may be subject to high levels of board flexure.
Applications
High Flexure Stress Circuit Boards
Variable Temperature Applications
Automotive Applications
Variable Temperature Applications
Automotive Applications
Note
Sorted in order of dielectric, voltage then capacitance.
Specifications
Attribute | Value |
---|---|
Capacitance | 2.2µF |
Voltage | 100V dc |
Package/Case | 1812 (4532M) |
Mounting Type | Surface Mount |
Dielectric | X7R |
Tolerance | ±10% |
Dimensions | 4.5 x 3.2 x 2.79mm |
Length | 4.5mm |
Depth | 3.2mm |
Height | 2.79mm |
Maximum Operating Temperature | +125°C |
Terminal Type | Surface Mount |
Minimum Operating Temperature | -55°C |
