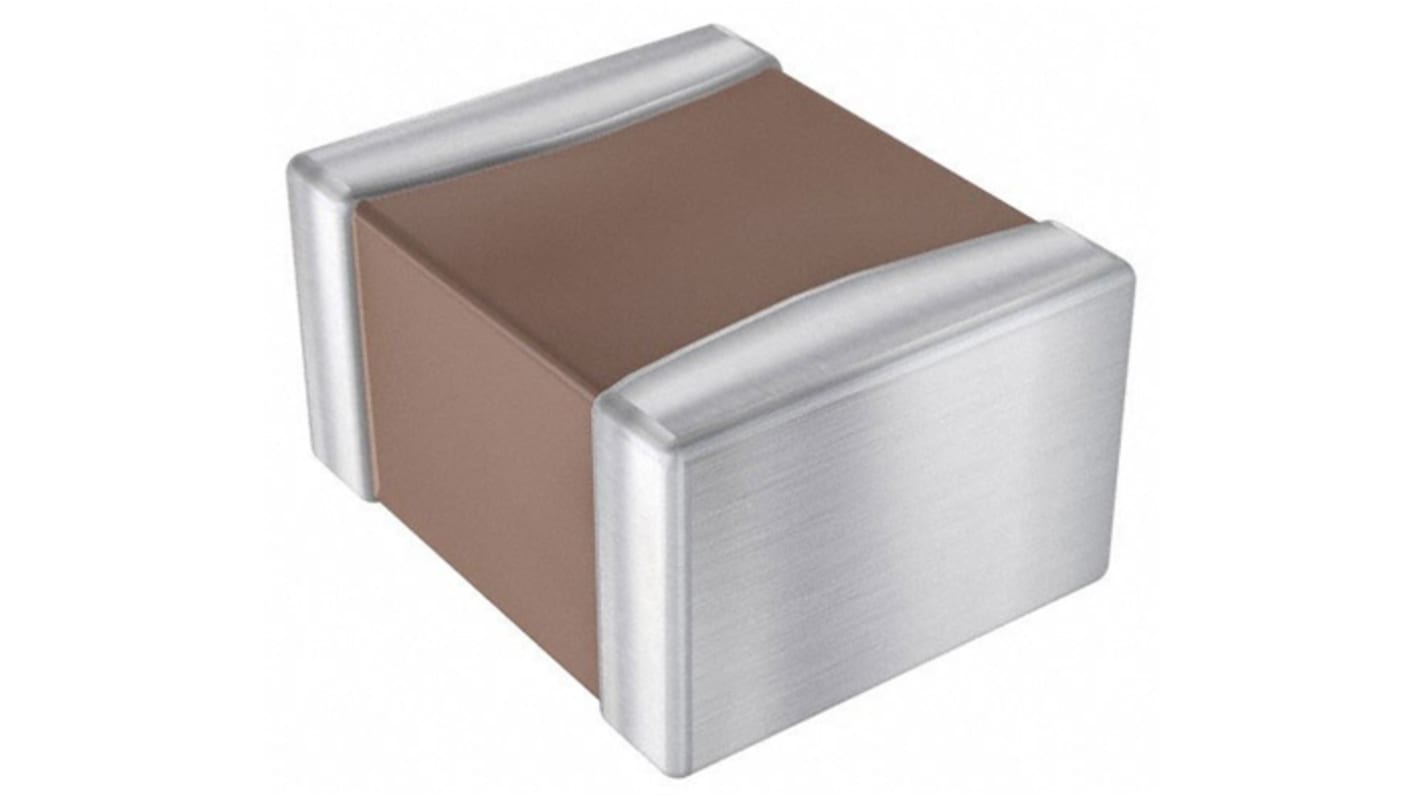

KYOCERA AVX 22nF MLCC, 600 V dc, 630 V dc V, SMD
- RS Stock No.:
- 135-3877
- Mfr. Part No.:
- 1210CC223KAT1A
- Brand:
- KYOCERA AVX
900 In stock - FREE next working day delivery available
Price Each (In a Bag of 25)
£0.14
(exc. VAT)
£0.17
(inc. VAT)
| Units | Per unit | Per Bag* |
| 25 + | £0.14 | £3.50 |
| *price indicative | ||
- RS Stock No.:
- 135-3877
- Mfr. Part No.:
- 1210CC223KAT1A
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
AVX High Voltage 1210 MLCC series
High value, low leakage and small size capacitors for high voltage systems
These capacitors exhibit low ESR at high frequencies
Suitable for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/dc blocking
Capacitors may require protective surface coating to prevent external arcing
These capacitors exhibit low ESR at high frequencies
Suitable for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voltage coupling/dc blocking
Capacitors may require protective surface coating to prevent external arcing
Specifications
Attribute | Value |
|---|---|
| Capacitance | 22nF |
| Voltage | 600 V dc, 630 V dc |
| Package/Case | 1210 (3225M) |
| Mounting Type | Surface Mount |
| Dimensions | 3.3 x 2.5 x 2.8mm |
| Length | 3.3mm |
| Depth | 2.5mm |
| Height | 2.8mm |
| Maximum Operating Temperature | +125°C |
| Terminal Type | Surface Mount |
| Minimum Operating Temperature | -55°C |
