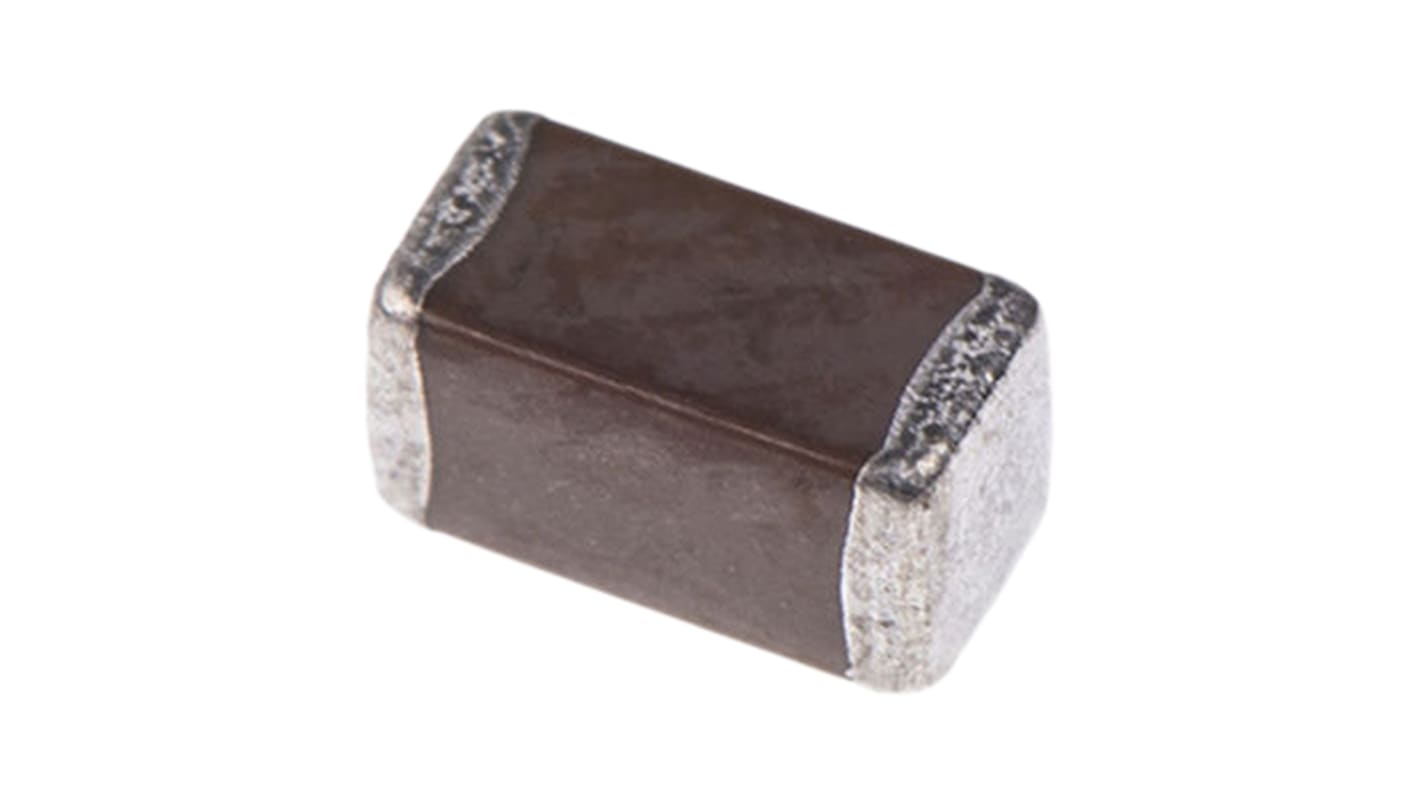

TDK 2.2pF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±0.25pF , SMD
- RS Stock No.:
- 110-9402
- Mfr. Part No.:
- CGA2B2C0G1H2R2C050BA
- Brand:
- TDK
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 10000)
£0.009
(exc. VAT)
£0.011
(inc. VAT)
| Units | Per unit | Per Reel* |
| 10000 - 10000 | £0.009 | £90.00 |
| 20000 + | £0.008 | £80.00 |
| *price indicative | ||
- RS Stock No.:
- 110-9402
- Mfr. Part No.:
- CGA2B2C0G1H2R2C050BA
- Brand:
- TDK
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
TDK CGA Automotive 0402 series, C0G Dielectric
From TDK, the CGA Series of Multilayer Ceramic Capacitors (MLCCs) provides a highly reliable solution. Utilising precision technology, this series of MLCCs is constructed with multiple thin ceramic dielectric layers enabling high capacitance. These MLCCs feature low ESR ensuring low self-heating and high ripple resistance. CGA multilayer ceramic capacitors also have low ESL and excellent frequency characteristics.
Features and Benefits:
Excellent heat resistance
Greater mechanical strength
Superior reliability
Guaranteed performance from a matured manufacturing process
Available with a range of dielectrics
Suitable for high accuracy automatic mounting
Low stray capacitance
Applications:
These MLCCs are AEC-Q200 qualified and suitable for automotive applications. Typical applications include automotive battery line smoothing, sensor modules and engine control units. CAG Series ceramic capacitors are ideal for anti-lock brake systems and automotive infotainment systems. Other recommended applications include smart meters, smart grids, solar inverters, AC-DC battery chargers, transportation and agriculture.
Specifications
Attribute | Value |
|---|---|
| Capacitance | 2.2pF |
| Voltage | 50V dc |
| Package/Case | 0402 (1005M) |
| Mounting Type | Surface Mount |
| Dielectric | C0G |
| Tolerance | ±0.25pF |
| Dimensions | 1 x 0.5 x 0.5mm |
| Length | 1mm |
| Depth | 0.5mm |
| Height | 0.5mm |
| Series | CGA |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Terminal Type | Surface Mount |
