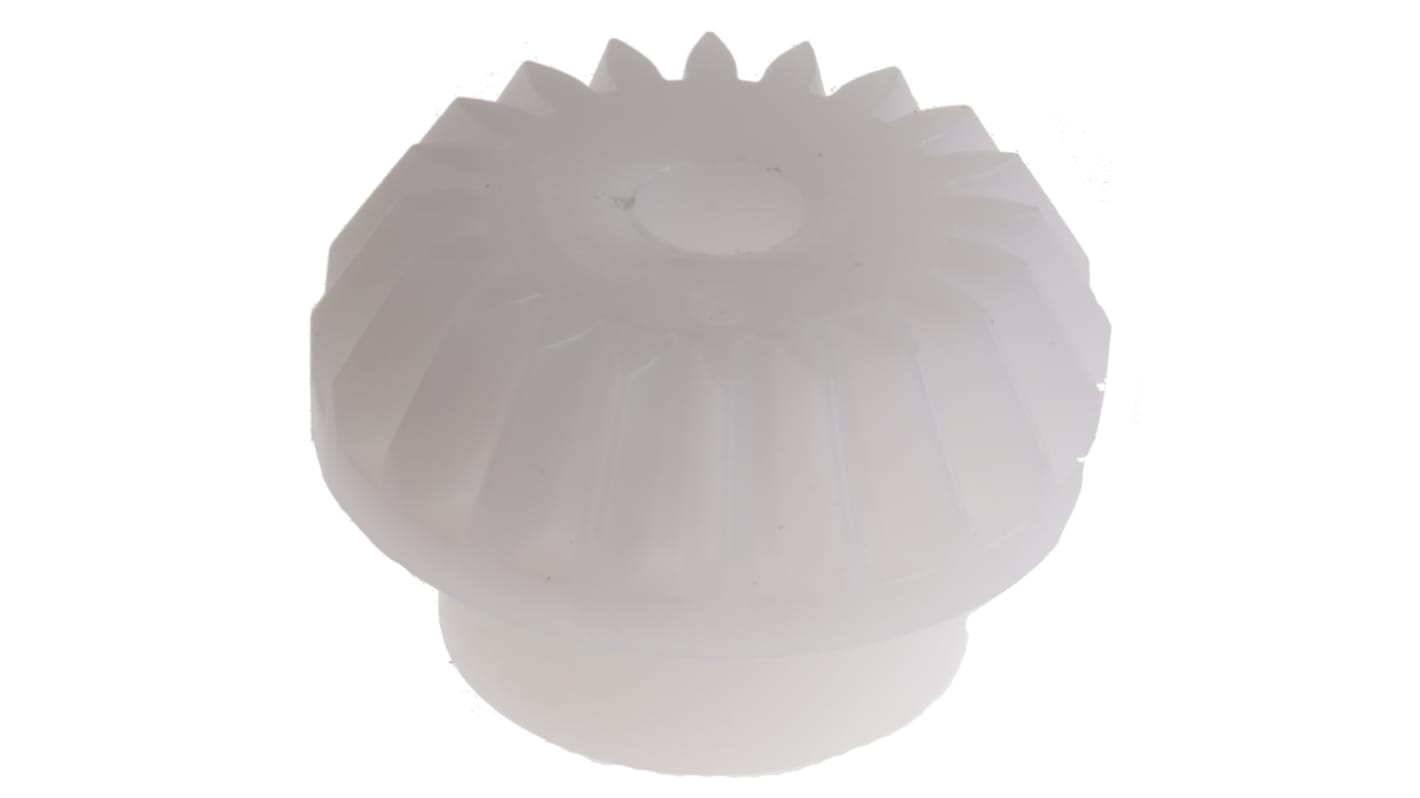

RS PRO POM Bevel Gear, 5mm Bore, 20 Teeth, 1 Module
- RS Stock No.:
- 521-6137
- Brand:
- RS PRO
111 In stock - FREE next working day delivery available
Added
Price Each
£4.76
(exc. VAT)
£5.71
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £4.76 |
| 5 - 9 | £4.67 |
| 10 - 24 | £4.59 |
| 25 + | £4.48 |
- RS Stock No.:
- 521-6137
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
Delrin Bevel Gears
Injection moulded acetal co-polymer bevel gears.
Tensile strength 75N/mm2
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Note
Gears sold as a single unit, match pair with module size to give a 2:1 ratio.
Specifications
Attribute | Value |
|---|---|
| Bore | 5mm |
| Module | 1 |
| Gear Type | Bevel |
| Material | POM |
| Number of Teeth | 20 |
| Nominal Gear Ratio | 2:1 |
| Pitch | 1mm |
| Pressure Angle | 20° |
| Hardness | 110 → 120HRR |
