Bulk discount available
Subtotal (1 unit)*
£6.02
(exc. VAT)
£7.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 23 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.02 |
| 5 - 9 | £5.91 |
| 10 + | £5.78 |
*price indicative
- RS Stock No.:
- 521-6064
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Bore | 8mm | |
| Module | 1.5 | |
| Gear Type | Mitre | |
| Material | POM | |
| Number of Teeth | 20 | |
| Nominal Gear Ratio | 1:1 | |
| Pitch | 1.5mm | |
| Pressure Angle | 20° | |
| Hardness | 110 → 120HRR | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Bore 8mm | ||
Module 1.5 | ||
Gear Type Mitre | ||
Material POM | ||
Number of Teeth 20 | ||
Nominal Gear Ratio 1:1 | ||
Pitch 1.5mm | ||
Pressure Angle 20° | ||
Hardness 110 → 120HRR | ||
- COO (Country of Origin):
- US

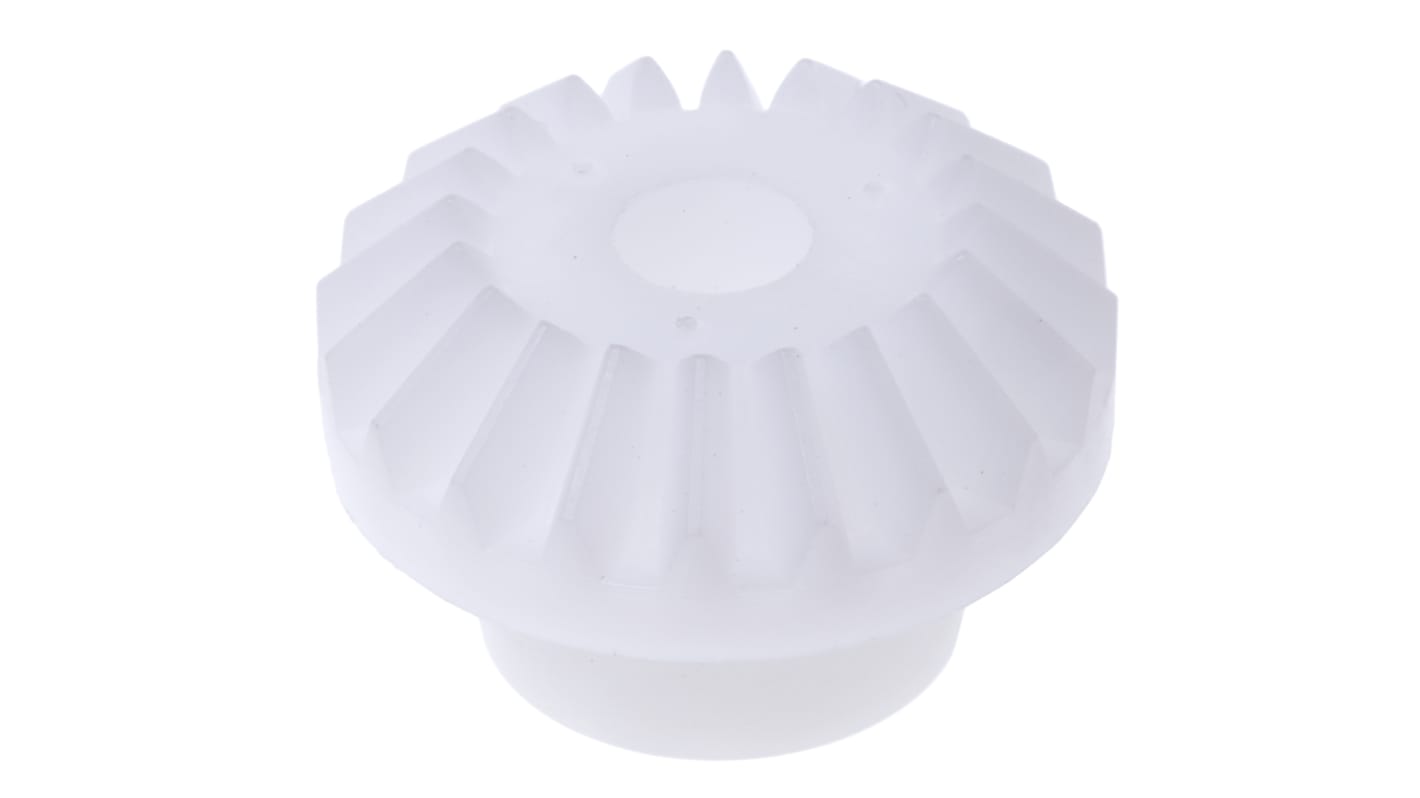

RS PRO POM Mitre Gear, 8 mm Bore, 20 Teeth, 1.5 Module
This mitre gear from RS PRO works together with another of the same kind to transfer a rotational motion to shafts. It's used in equipment such as hand drills and bicycle and motorcycle gears.
This component is made from polyoxymethylene (POM), a thermoplastic material that provides good stiffness and stability. This ensures the gear's continued efficient operation, even under harsh, testing conditions. The plastic doesn't need to be greased, removing the need for scheduled lubrication stoppages. In addition, the material is lightweight, so it requires less energy to run.
A plastic mitre gear is an ideal choice for food packaging applications as it won't corrode in the presence of water and can therefore withstand frequent washdowns. This product is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal levels of any potentially harmful materials.
This component is made from polyoxymethylene (POM), a thermoplastic material that provides good stiffness and stability. This ensures the gear's continued efficient operation, even under harsh, testing conditions. The plastic doesn't need to be greased, removing the need for scheduled lubrication stoppages. In addition, the material is lightweight, so it requires less energy to run.
A plastic mitre gear is an ideal choice for food packaging applications as it won't corrode in the presence of water and can therefore withstand frequent washdowns. This product is Restriction of Hazardous Substances (RoHS) compliant, so it contains only minimal levels of any potentially harmful materials.
Features and Benefits
• Bore of 8 mm
• Mitre gear type
• Hardness of 110 to 120 Hardness Rockwell Scale R (HRR)
• Polyoxymethylene (POM) material
• Module of 1.5
• Nominal gear ratio of 0.0423611111111111
• Two teeth
• Pitch of 1.5 mm
• Pressure angle of 20º
• Mitre gear type
• Hardness of 110 to 120 Hardness Rockwell Scale R (HRR)
• Polyoxymethylene (POM) material
• Module of 1.5
• Nominal gear ratio of 0.0423611111111111
• Two teeth
• Pitch of 1.5 mm
• Pressure angle of 20º
