RS PRO Bevel Gear, 8mm Bore, 10 Teeth, 2.5 Module

View all Mitre & Bevel Gears
Bulk discount available

Subtotal (1 unit)*

£6.15

(exc. VAT)

£7.38

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£6.15
5 - 9£6.03
10 +£5.90

*price indicative

RS Stock No.:
182-8008
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Bore

8mm

Module

2.5

Gear Type

Bevel

Number of Teeth

10

Nominal Gear Ratio

3:1

Pitch

2.5mm

Pressure Angle

20°

COO (Country of Origin):
DE

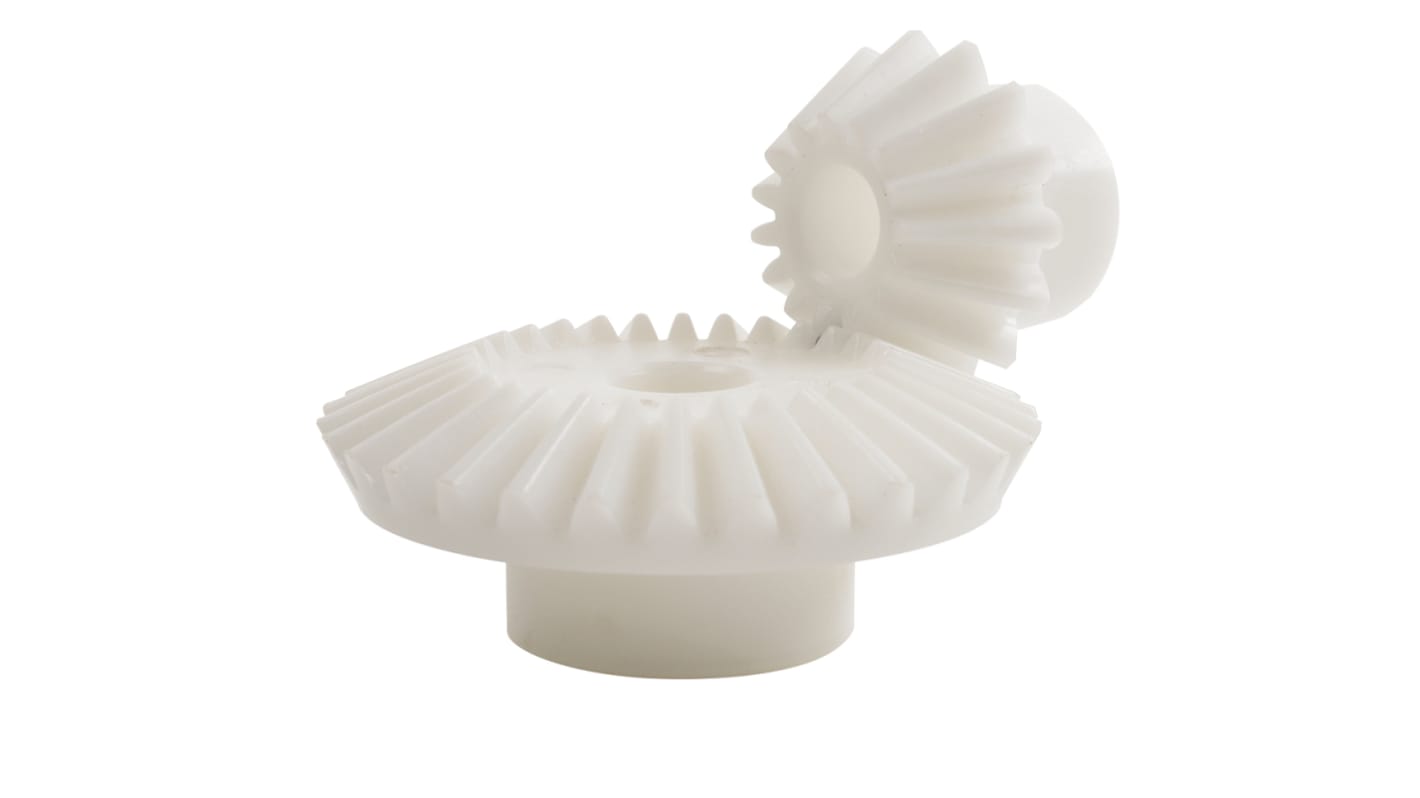

RS PRO Hostaform Bevel Gear


The RS PRO 3:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 2.5 and 10 teeth.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.

Features and Benefits


• Standard tolerances, unless otherwise stated 0.25mm
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20 pressure angle
• Supplied in pairs

Certifications


• EN certified
• DIN 3964
• DIN 3967
• DIN 3971
