PUI Audio 4 Ω 3 W Miniature Speaker 9.5 mm, 28.5mm
- RS Stock No.:
- 276-818
- Mfr. Part No.:
- AS04004PO-2-WR-R
- Brand:
- PUI Audio
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£4.34
(exc. VAT)
£5.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 59 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.34 |
| 10 - 99 | £3.91 |
| 100 - 499 | £3.60 |
| 500 - 999 | £3.34 |
| 1000 + | £2.72 |
*price indicative
- RS Stock No.:
- 276-818
- Mfr. Part No.:
- AS04004PO-2-WR-R
- Brand:
- PUI Audio
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PUI Audio | |
| Product Type | Miniature Speaker | |
| Coil Resistance | 4Ω | |
| Sound Level | 82dBA | |
| Sub Type | Water Resistant Speaker | |
| Tone Type | Continuous | |
| Rated Power | 3W | |
| Cone Material | Paper | |
| Frequency | 420Hz | |
| Impedance | 4Ω | |
| Height | 9.5mm | |
| Standards/Approvals | EU, RoHS 2011, REACH | |
| Width | 28.5mm | |
| Length | 40mm | |
| Select all | ||
|---|---|---|
Brand PUI Audio | ||
Product Type Miniature Speaker | ||
Coil Resistance 4Ω | ||
Sound Level 82dBA | ||
Sub Type Water Resistant Speaker | ||
Tone Type Continuous | ||
Rated Power 3W | ||
Cone Material Paper | ||
Frequency 420Hz | ||
Impedance 4Ω | ||
Height 9.5mm | ||
Standards/Approvals EU, RoHS 2011, REACH | ||
Width 28.5mm | ||
Length 40mm | ||
- COO (Country of Origin):
- CN

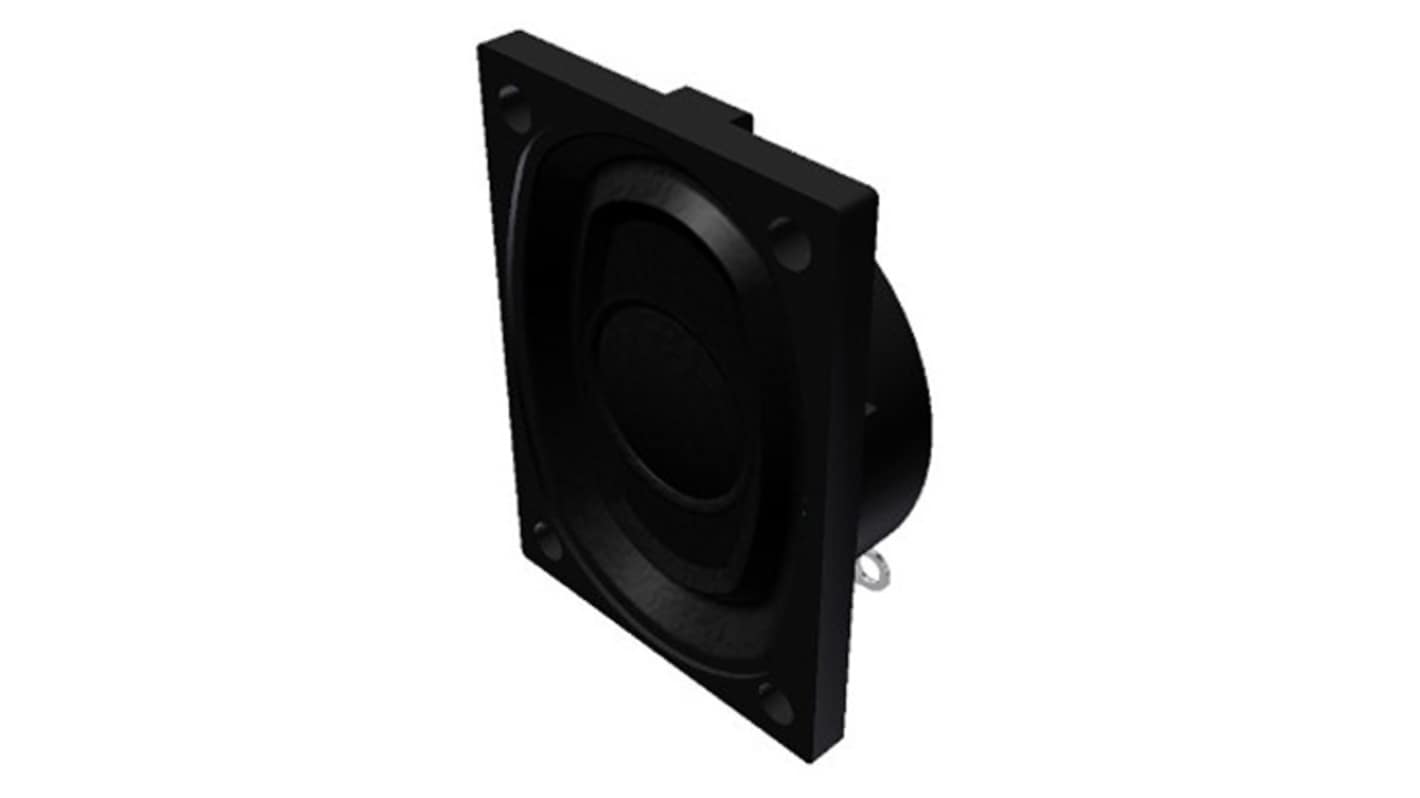

PUI Audio Miniature Speaker, 3W Rated Power, 4Ω Impedance - AS04004PO-2-WR-R
This miniature speaker is designed to provide Compact acoustic output for industrial and electronic systems where space and moisture resistance matter. It offers a continuous tone response suitable for signalling and alerting within control panels and portable devices, combining a paper cone diaphragm with a low electrical impedance to deliver audible levels in confined installations.
Features and Benefits:
• 4Ω impedance for straightforward drive with common amplifiers
• 3W rated power enabling clear audible alerts at low supply levels
• 82dBA sensitivity for recognisable sound in noisy environments
• Continuous tone output facilitating steady signalling or alarms
• Water-resistant construction allowing use in damp locations
• Compliant with EU RoHS 2011 and REACH ensuring restricted-substance adherence
• 3W rated power enabling clear audible alerts at low supply levels
• 82dBA sensitivity for recognisable sound in noisy environments
• Continuous tone output facilitating steady signalling or alarms
• Water-resistant construction allowing use in damp locations
• Compliant with EU RoHS 2011 and REACH ensuring restricted-substance adherence
Applications
• Suitable for factory automation alarm and notification panels
• Ideal for handheld diagnostic and test instruments
• Used with control enclosures requiring moisture-tolerant audio
• Can be used for embedded signalling in HVAC systems
• Suitable for low-profile public-address cueing in kiosks
• Ideal for handheld diagnostic and test instruments
• Used with control enclosures requiring moisture-tolerant audio
• Can be used for embedded signalling in HVAC systems
• Suitable for low-profile public-address cueing in kiosks
What drive characteristics are needed for optimal performance?
It runs on low-voltage amplifier stages that can supply nominal 3W into a 4Ω load, ensure the drive device limits power to avoid exceeding rated input.
How does the diaphragm material affect response and use?
The paper cone provides natural midrange reproduction and mechanical damping suitable for steady tones, making it appropriate for alerts rather than hi-fi audio.
What approvals affect selection for regulated projects?
The component meets EU RoHS 2011 and REACH chemical restriction standards, supporting procurement for assemblies constrained by those regulations.
How does the speaker behave across its frequency capability?
It is specified up to 20kHz for continuous-tone signalling, so it supports the human-audible range needed for clear alert tones.
