Bresser 58-04000 Trinocular Microscope, 10 → 160X Magnification

Subtotal (1 unit)*

£687.44

(exc. VAT)

£824.93

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
  • Plus 999,999,997 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£687.44

*price indicative

RS Stock No.:
718-7347
Mfr. Part No.:
58-04000
Brand:
Bresser
Find similar products by selecting one or more attributes.
Select all

Brand

Bresser

Magnification Power

10 → 160X

Illuminated

Yes

Illumination Type

Halogen

Weight

4.7kg

Dimensions

148 x 330 x 502mm

Diameter

148mm

Plug Type

CEE 7/7

Length

330mm

Model Number p

Advance ICD

COO (Country of Origin):
CN

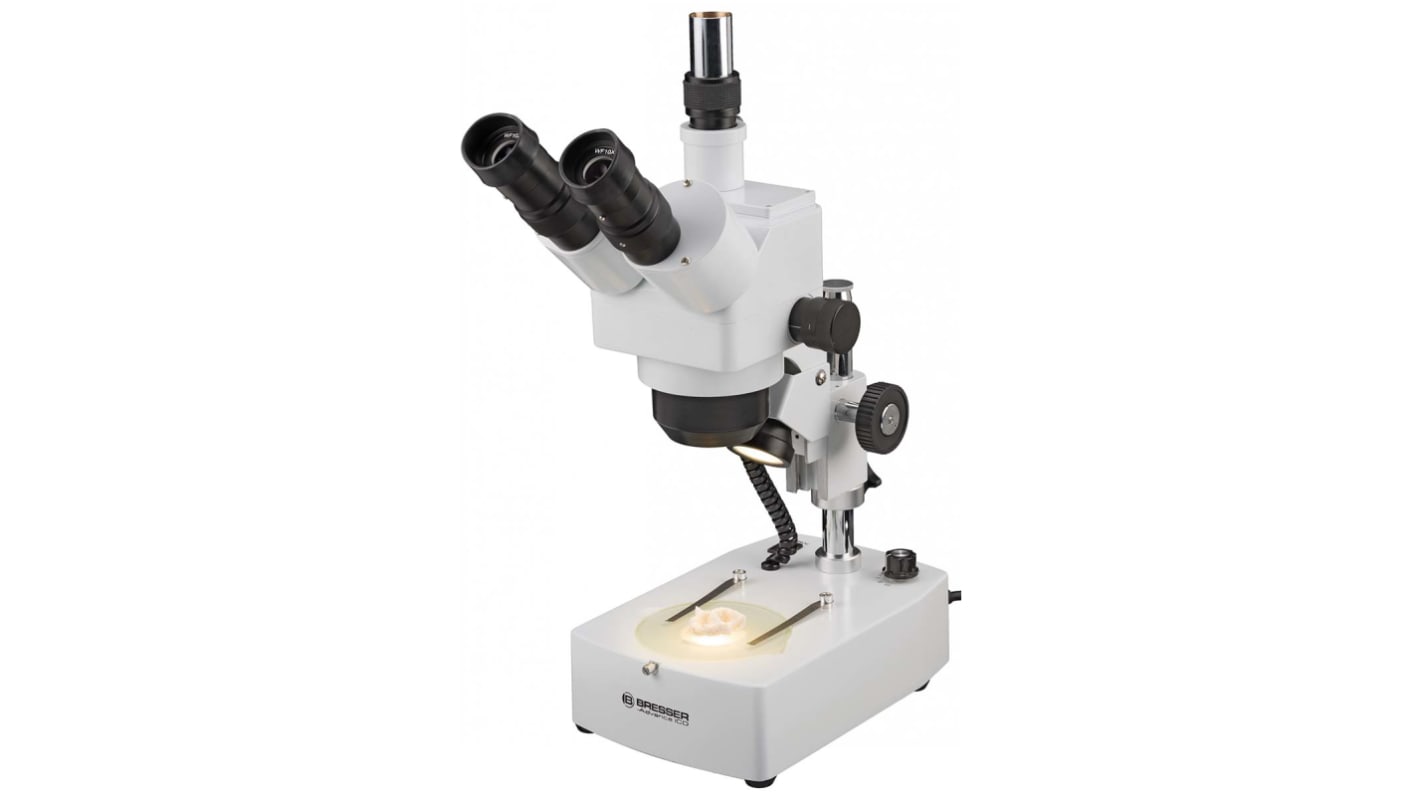

Bresser Advance ICD Stereo Microscope


The BRESSER Advance ICD is a trinocular stereo and biological microscope with a magnification of up to 160 times.
The combination between a Stereo Zoom Objective (1x-4x), two pairs of high grade wide field eyepieces (10x & 20x) and an additional 2x Auxiliary Lens allow for the incredible range of 10x to 160x magnification with premium optical qualities. The height adjustable trinocular head allows for observations of larger items such as large rocks or thick circuit boards. Besides being able to view the object with both eyes the user can connect a camera or PC Eyepiece to the microscopes trinocular head at the same time. The bright halogen illumination, which can be individually turned on for Stereo- and Transmission observation or both at the same time, and the massive microscope base and its various accessories make the BRESSER Advance ICD a complete professional Stereo Microscope, that offers an extremely realistic image replication.
The tubular column allows the microscope to rotate enabling it to view larger objects on or off-site working height from 50mm to 200mm.

Features and Benefits


CEE 7/7 Plug Type
Trinocular head for visual observation and simultaneous camera use
Compatible with BRESSER MikroCams (optional)
1x-4x stereo zoom objective
2x Auxiliary Lens (doubles the magnification of eyepieces and zoom objective)
Powerful halogen lighting
2 different object plates for optimum contrast to the object
Observation of objects up to approx. 12 cm height
Integrated 220/240V power supply with cable
Solid construction with heavy base
Dimmable lighting

Applications:


Archeology
Geology
Gemmology
Petrology
Minerals
Semiconductor production
Botany
Coins
Stamps
Quality inspection
Education

Certifications


CE certified

Supplied with

Microscope
2 pairs wide field eyepieces (WF 10x / WF 20x)
2x Auxiliary Lens (1 piece)
1 pair rubber eyecups
Object plate made of plastic (black/white)
Object plate glass 94mm (matte)
2 halogen lamps
Dust cover
Instruction manual
