Dino-Lite AM7025X USB 2.0 Microscope, 5 MP, 20x Magnification
- RS Stock No.:
- 216-7383
- Distrelec Article No.:
- 301-62-308
- Mfr. Part No.:
- AM7025X
- Brand:
- Dino-Lite
Subtotal (1 unit)*
£557.10
(exc. VAT)
£668.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £557.10 |
*price indicative
- RS Stock No.:
- 216-7383
- Distrelec Article No.:
- 301-62-308
- Mfr. Part No.:
- AM7025X
- Brand:
- Dino-Lite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Dino-Lite | |
| Magnification Power | 20x | |
| Product Type | Microscope | |
| Frame Rate | 30fps | |
| Interface Type | USB 2.0 | |
| Weight | 0.117kg | |
| Standards/Approvals | RoHS, CE, FCC | |
| Resolution | 5M pixels | |
| Select all | ||
|---|---|---|
Brand Dino-Lite | ||
Magnification Power 20x | ||
Product Type Microscope | ||
Frame Rate 30fps | ||
Interface Type USB 2.0 | ||
Weight 0.117kg | ||
Standards/Approvals RoHS, CE, FCC | ||
Resolution 5M pixels | ||
- COO (Country of Origin):
- TW

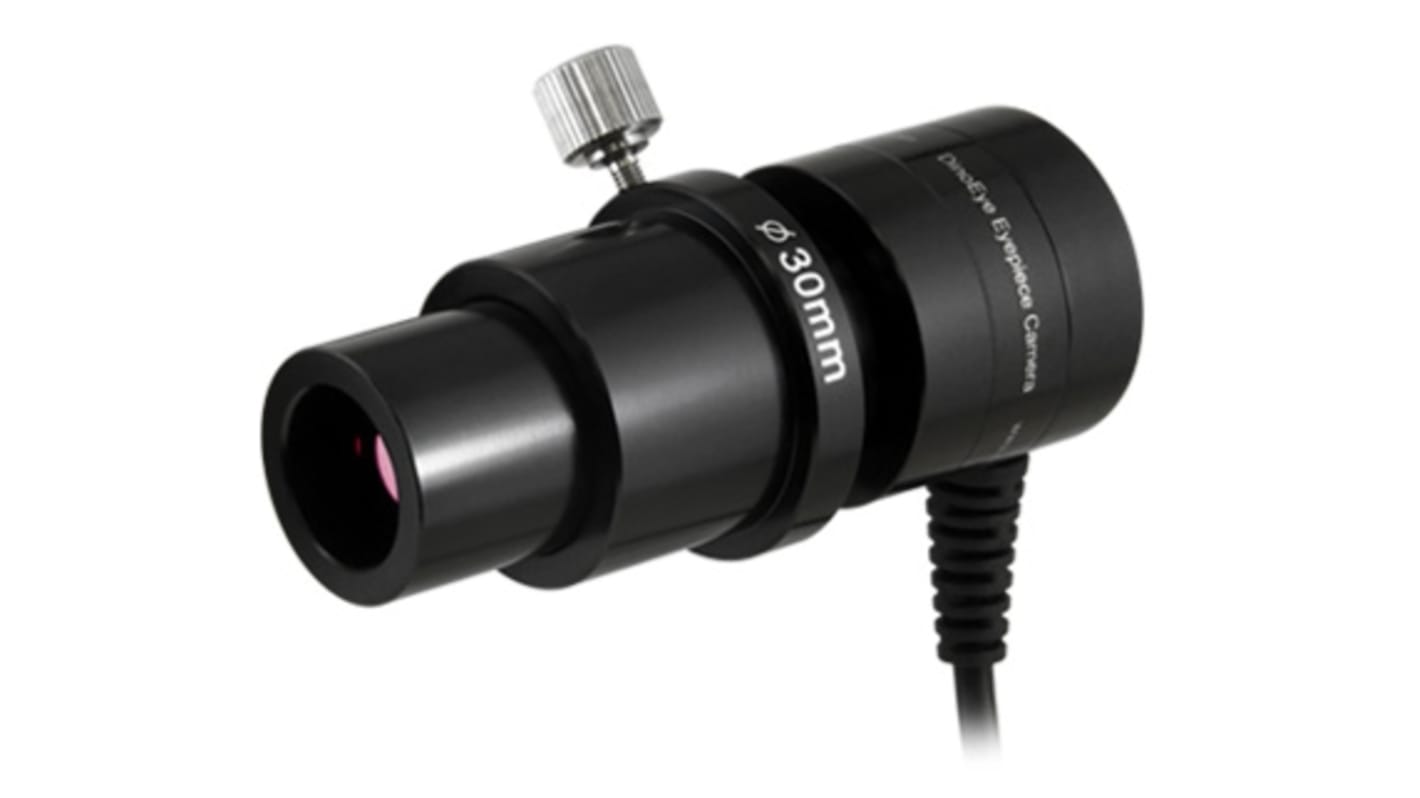

DinoEye Edge 5MP Eyepiece Camera
The Dino-Lite DinoEye Edge 5MP eyepiece camera provides superior image quality and true colour reproduction. This makes this new DinoEye suitable for demanding applications where true colour reproduction is of the utmost importance, like with pathology samples or quality control.
Features:
Built-in magnification: 20x
Lens type: Glass with Anti-Reflection coating
Sensor Type: CMOS
Resolution: 5 Megapixel (2592x1944)
Maximum frame rate: 30 fps
Mounting type: Inside ocular/tube & c-mount
Interface: USB 2.0
Cable length: 1.8 m
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.4 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supplied with
DinoEye eyepiece camera
Carry Pouch
Software CD
Calibration Target
User Manual
Carry Pouch
Software CD
Calibration Target
User Manual
