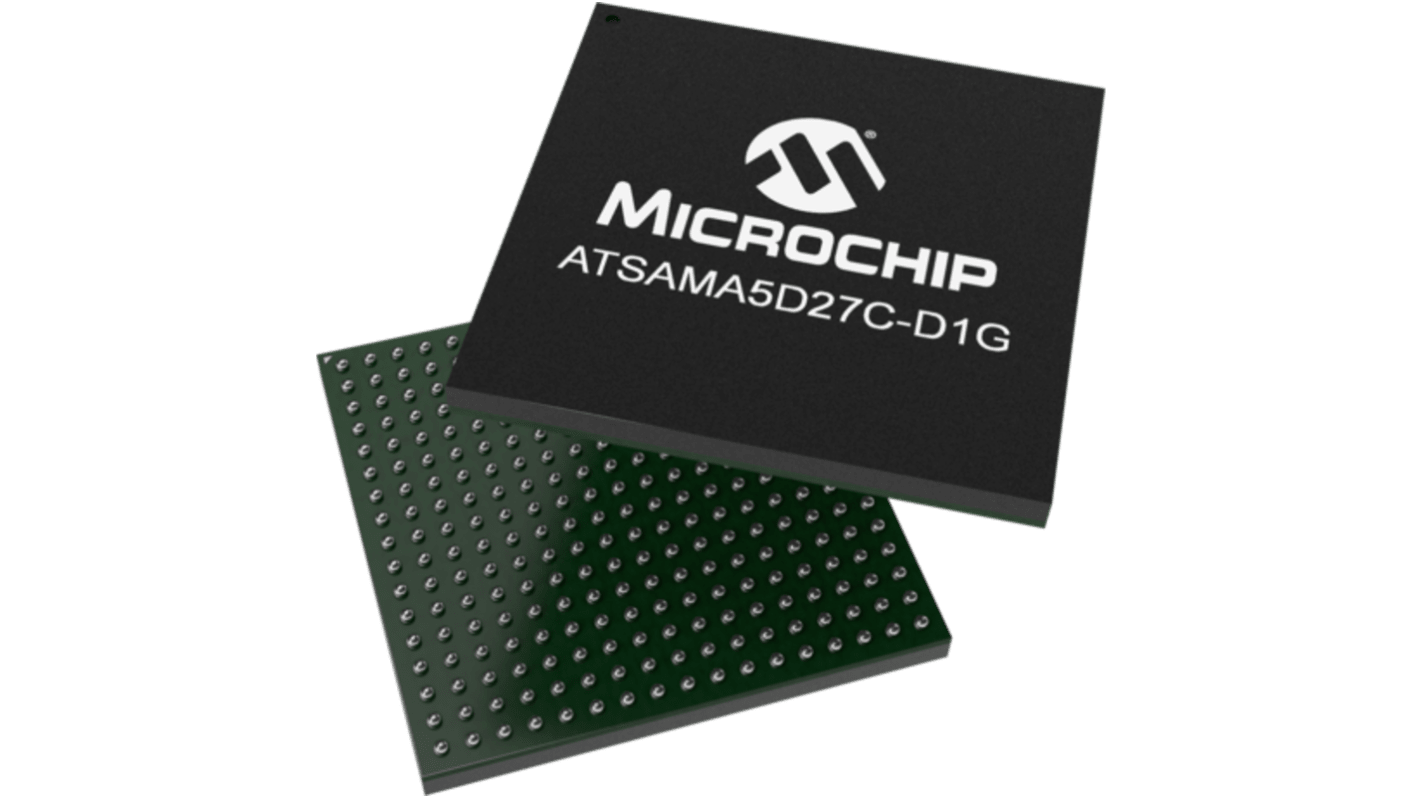

Microchip ATSAMA5D27C-D1G-CUR Cortex A5 MPU Microprocessor SAMA5D2 32 bit ARM V7-A 500 MHz 289-Pin TFBGA
- RS Stock No.:
- 526-459
- Mfr. Part No.:
- ATSAMA5D27C-D1G-CUR
- Brand:
- Microchip
Subtotal (1 reel of 1000 units)*
£19,110.00
(exc. VAT)
£22,930.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £19.11 | £19,110.00 |
*price indicative
- RS Stock No.:
- 526-459
- Mfr. Part No.:
- ATSAMA5D27C-D1G-CUR
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Microprocessor | |
| Series | SAMA5D2 | |
| Device Core | Cortex A5 MPU | |
| Data Bus Width | 32bit | |
| Instruction Set Architecture | ARM V7-A | |
| Maximum Clock Frequency | 500MHz | |
| Interface Type | I2S, DDR3L, TWIHS, LCD, SSC, SLC/MLC NAND, PWM, LPDDR1, LPDDR2, SPI, Ethernet, QSPI, DDR3, DDR2, TC, LPDDR3, CAN FD, UART, PDMIC, TWI, MMC, SDM, USART, USB, ADC | |
| Package Type | TFBGA | |
| Pin Count | 289 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | FIPS PUB 197, IEEE802.1Qav, IEEE1588, IEEE802.1AS, FIPS PUB 140-3, NIST SP 800-22, FIPS PUB 140-2, FIPS PUB 46-3, IEEE 802.3az, FIPS PUB 180-2 | |
| Automotive Standard | No | |
| Number of Cores | 1 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Microprocessor | ||
Series SAMA5D2 | ||
Device Core Cortex A5 MPU | ||
Data Bus Width 32bit | ||
Instruction Set Architecture ARM V7-A | ||
Maximum Clock Frequency 500MHz | ||
Interface Type I2S, DDR3L, TWIHS, LCD, SSC, SLC/MLC NAND, PWM, LPDDR1, LPDDR2, SPI, Ethernet, QSPI, DDR3, DDR2, TC, LPDDR3, CAN FD, UART, PDMIC, TWI, MMC, SDM, USART, USB, ADC | ||
Package Type TFBGA | ||
Pin Count 289 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals FIPS PUB 197, IEEE802.1Qav, IEEE1588, IEEE802.1AS, FIPS PUB 140-3, NIST SP 800-22, FIPS PUB 140-2, FIPS PUB 46-3, IEEE 802.3az, FIPS PUB 180-2 | ||
Automotive Standard No | ||
Number of Cores 1 | ||
- COO (Country of Origin):
- TW
The Microchip High-performance low-power Arm Cortex-A5 CPU-based embedded microprocessor (MPU) running up to 500 MHz, with 1Gbit DDR2 memory. The device integrates powerful peripherals for connectivity and user interface applications, and offers advanced security functions, as well as high-performance crypto accelerators AES, SHA and TRNG.
Low System Cost and High Value Integration
State of the Art Security
Extensive Ecosystem
RoHS compliant
