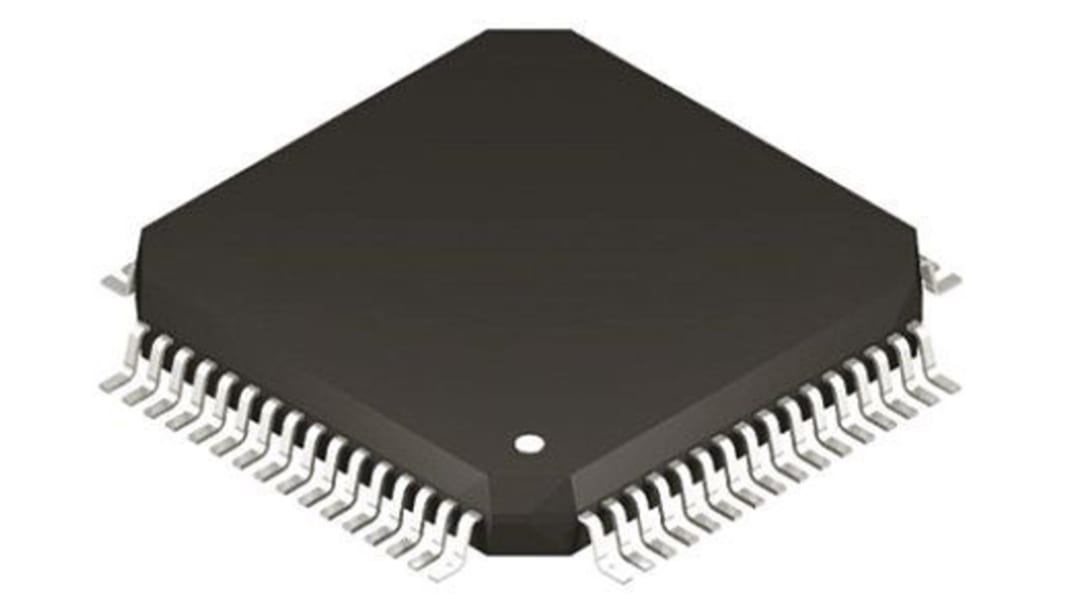

Microchip PIC24EP512GP806-I/PT, 16bit PIC Microcontroller, PIC24EP, 140MHz, 586 kB Flash, 64-Pin TQFP

RS Stock No.:: 911-5788
Mfr. Part No.:: PIC24EP512GP806-I/PT
Brand:: Microchip

Microchip PIC24EP512GP806-I/PT, 16bit PIC Microcontroller, PIC24EP, 140MHz, 586 kB Flash, 64-Pin TQFP

1760 In stock - FREE next working day delivery available

Added

Price Each (In a Tray of 160)

£7.894

(exc. VAT)

£9.473

(inc. VAT)

Units	Per unit	Per Tray*
160 +	£7.894	£1,263.04
*price indicative

RS Stock No.:: 911-5788
Mfr. Part No.:: PIC24EP512GP806-I/PT
Brand:: Microchip

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

PIC24EPxxx(GP/GU)806/810/814 16-Bit Flash Microcontrollers

PIC24 Microcontrollers

Specifications

Attribute	Value
Family Name	PIC24EP
Package Type	TQFP
Mounting Type	Surface Mount
Pin Count	64
Device Core	PIC
Data Bus Width	16bit
Program Memory Size	586 kB
Maximum Frequency	140MHz
RAM Size	52 kB
USB Channels	0
Number of PWM Units	16
Number of SPI Channels	4
Number of USART Channels	0
Typical Operating Supply Voltage	3 → 3.6 V
Number of I2C Channels	2
Number of UART Channels	4
Number of CAN Channels	2
Number of LIN Channels	4
Height	1.05mm
Number of ADC Units	2
Instruction Set Architecture	Harvard
ADCs	24 x 10/12 bit
Length	10mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Dimensions	10 x 10 x 1.05mm
Width	10mm
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Maximum Number of Ethernet Channels	0
Pulse Width Modulation	16
