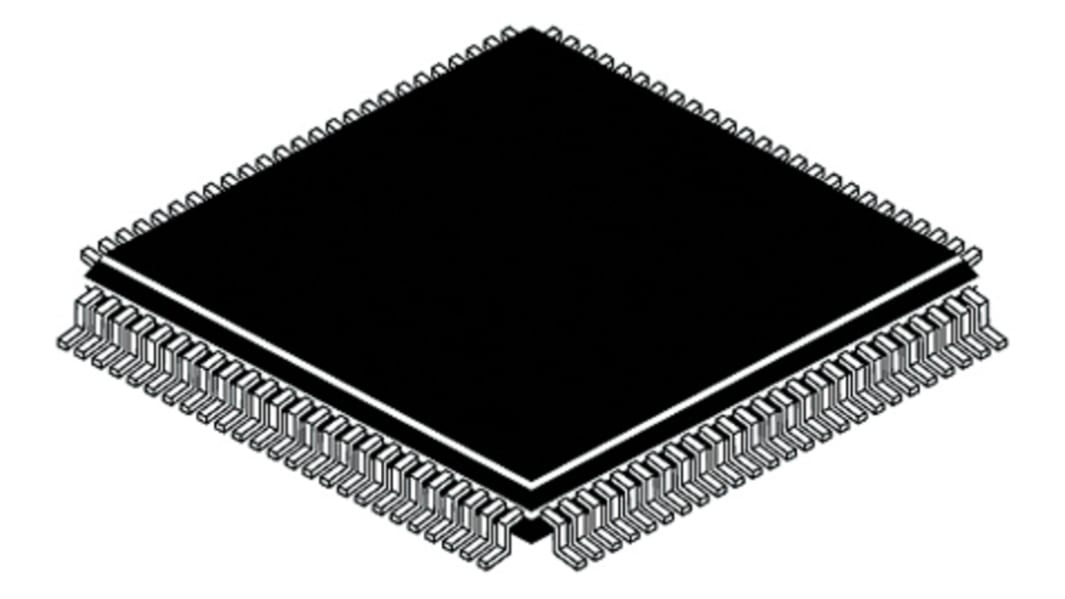

Microchip PIC24FJ256GA110-I/PF, 16bit PIC Microcontroller, PIC24FJ, 32MHz, 256 kB Flash, 100-Pin TQFP
- RS Stock No.:
- 889-5471
- Mfr. Part No.:
- PIC24FJ256GA110-I/PF
- Brand:
- Microchip
630 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 90)
£5.68
(exc. VAT)
£6.82
(inc. VAT)
| Units | Per unit | Per Tray* |
| 90 + | £5.68 | £511.20 |
| *price indicative | ||
- RS Stock No.:
- 889-5471
- Mfr. Part No.:
- PIC24FJ256GA110-I/PF
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TH
Product Details
PIC24FJxxxGA106/108/110 16-Bit Flash Microcontrollers
PIC24 Microcontrollers
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC24FJ |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 32MHz |
| RAM Size | 16 kB |
| USB Channels | 0 |
| Number of PWM Units | 9 x 16 bit |
| Number of SPI Channels | 3 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 3 |
| Typical Operating Supply Voltage | 2 → 3.6 V |
| Number of USART Channels | 0 |
| Number of UART Channels | 4 |
| Dimensions | 14 x 14 x 1.05mm |
| Pulse Width Modulation | 9 x 16 bit (Compare/PWM) |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | RISC |
| Width | 14mm |
| Number of LIN Channels | 0 |
| Height | 1.05mm |
| ADCs | 16 x 10 bit |
| Length | 14mm |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
