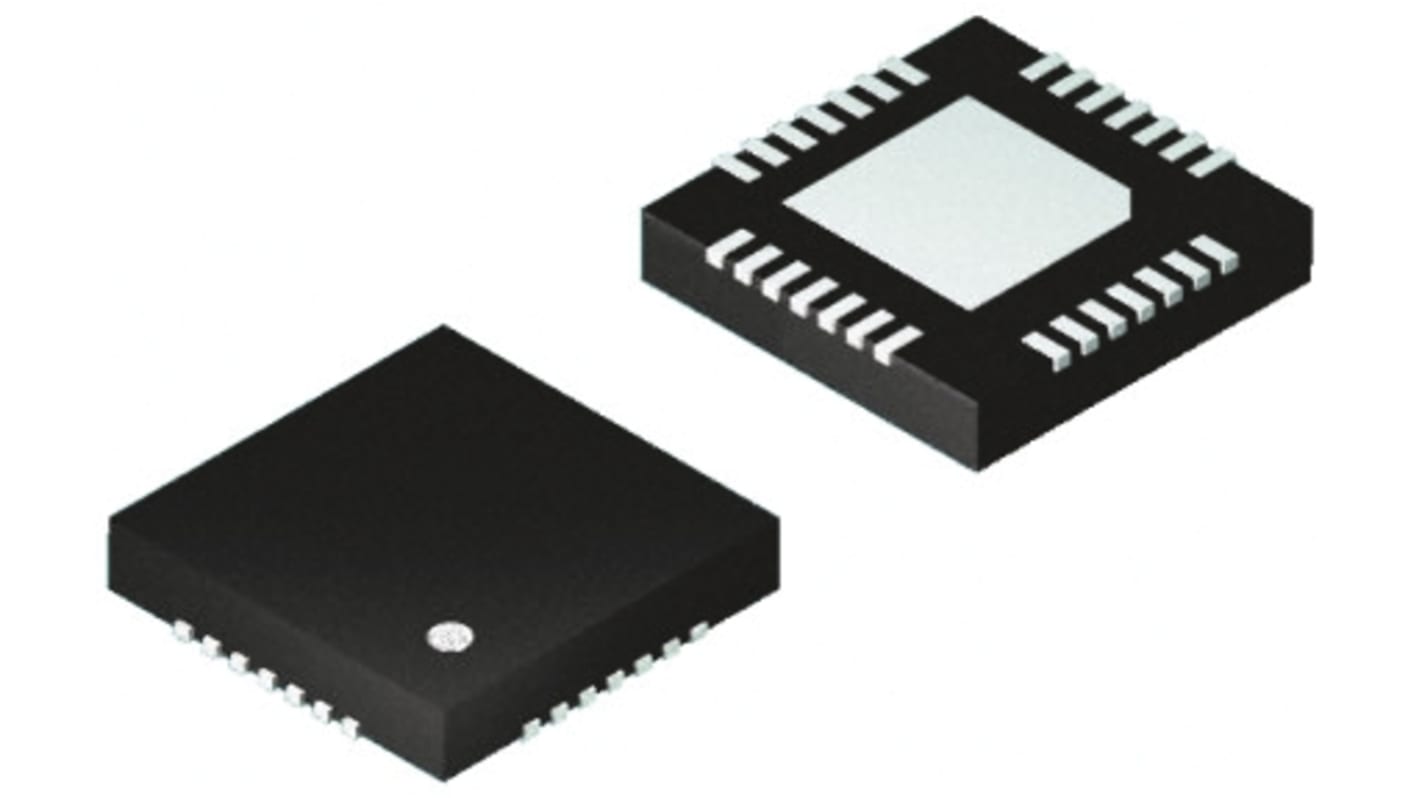

Microchip PIC18F23K22-I/ML, 8bit PIC Microcontroller, PIC18F, 64MHz, 8 kB Flash, 28-Pin QFN

RS Stock No.:: 823-0634
Mfr. Part No.:: PIC18F23K22-I/ML
Brand:: Microchip

Microchip PIC18F23K22-I/ML, 8bit PIC Microcontroller, PIC18F, 64MHz, 8 kB Flash, 28-Pin QFN

836 In stock - FREE next working day delivery available

Price Each (In a Pack of 5)

£1.526

(exc. VAT)

£1.831

(inc. VAT)

Units	Per unit	Per Pack*
5 +	£1.526	£7.63

*price indicative

RS Stock No.:: 823-0634
Mfr. Part No.:: PIC18F23K22-I/ML
Brand:: Microchip

Datasheet

Attribute	Value
Family Name	PIC18F
Package Type	QFN
Mounting Type	Surface Mount
Pin Count	28
Device Core	PIC
Data Bus Width	8bit
Program Memory Size	8 kB
Maximum Frequency	64MHz
RAM Size	512 B
USB Channels	0
Number of PWM Units	1 x 10 bit
Number of SPI Channels	2
Number of UART Channels	2
Number of USART Channels	2
Number of CAN Channels	0
Number of I2C Channels	2
Typical Operating Supply Voltage	1.8 → 5.5 V
Number of PCI Channels	0
Number of Ethernet Channels	0
Program Memory Type	Flash
Pulse Width Modulation	1 (CCP) (10 bit), 1 (ECCP) (10 bit)
Dimensions	6 x 6 x 0.95mm
Width	6mm
Number of LIN Channels	0
Height	0.95mm
ADCs	17 x 10 bit
Length	6mm
Maximum Operating Temperature	+85 °C
Number of ADC Units	1
Instruction Set Architecture	RISC
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0

Microchip PIC18F23K22-I/ML, 8bit PIC Microcontroller, PIC18F, 64MHz, 8 kB Flash, 28-Pin QFN

PIC18F2xK22/4xK22 8-Bit Flash Microcontrollers
