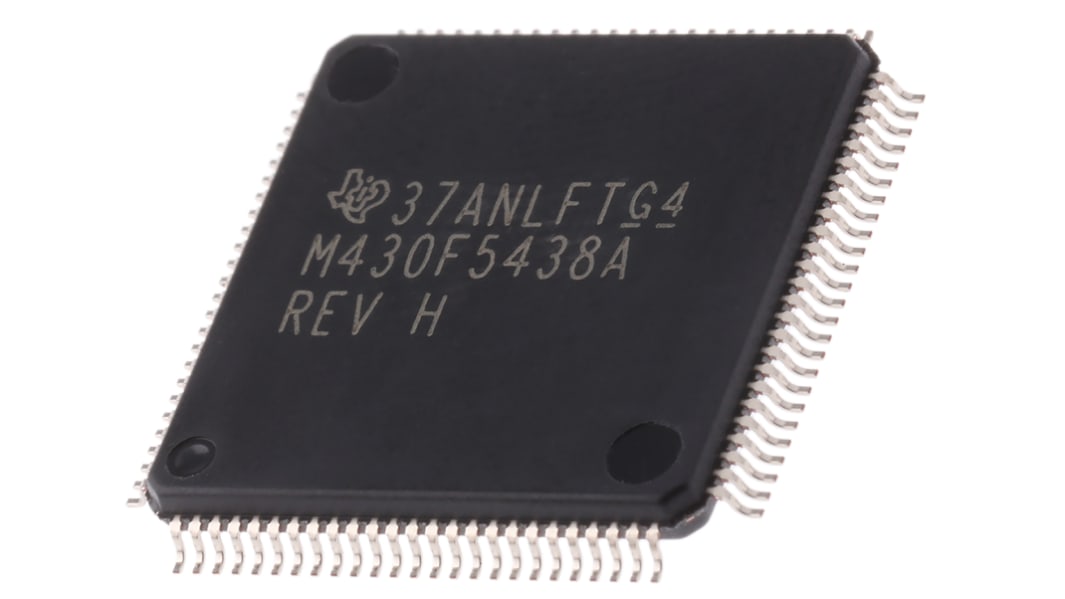

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 25MHz, 256 kB Flash, 100-Pin LQFP
- RS Stock No.:
- 796-8142
- Mfr. Part No.:
- MSP430F5438AIPZ
- Brand:
- Texas Instruments
Subtotal (1 unit)*
£7.74
(exc. VAT)
£9.29
(inc. VAT)
FREE delivery for orders over £50.00
- 197 unit(s) ready to ship
Units | Per unit |
---|---|
1 - 4 | £7.74 |
5 - 9 | £7.00 |
10 - 24 | £6.29 |
25 - 49 | £5.70 |
50 + | £5.41 |
*price indicative
- RS Stock No.:
- 796-8142
- Mfr. Part No.:
- MSP430F5438AIPZ
- Brand:
- Texas Instruments
Select all | Attribute | Value |
---|---|---|
Brand | Texas Instruments | |
Family Name | MSP430 | |
Package Type | LQFP | |
Mounting Type | Surface Mount | |
Pin Count | 100 | |
Device Core | MSP430 | |
Data Bus Width | 16bit | |
Program Memory Size | 256 kB | |
Maximum Frequency | 25MHz | |
RAM Size | 16 kB | |
USB Channels | 1 | |
Number of SPI Channels | 8 | |
Number of UART Channels | 4 | |
Number of CAN Channels | 0 | |
Number of USART Channels | 0 | |
Typical Operating Supply Voltage | 1.8 → 3.6 V | |
Number of I2C Channels | 4 | |
Number of Ethernet Channels | 0 | |
Number of PCI Channels | 0 | |
ADCs | 16 x 12 bit | |
Maximum Number of Ethernet Channels | 0 | |
Dimensions | 14.2 x 14.2 x 1.45mm | |
Width | 14.2mm | |
Program Memory Type | Flash | |
Height | 1.45mm | |
Number of LIN Channels | 0 | |
Number of ADC Units | 1 | |
Length | 14.2mm | |
Minimum Operating Temperature | -40 °C | |
Instruction Set Architecture | RISC | |
Maximum Operating Temperature | +85 °C | |
Select all | ||
---|---|---|
Brand Texas Instruments | ||
Family Name MSP430 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 100 | ||
Device Core MSP430 | ||
Data Bus Width 16bit | ||
Program Memory Size 256 kB | ||
Maximum Frequency 25MHz | ||
RAM Size 16 kB | ||
USB Channels 1 | ||
Number of SPI Channels 8 | ||
Number of UART Channels 4 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 0 | ||
Typical Operating Supply Voltage 1.8 → 3.6 V | ||
Number of I2C Channels 4 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
ADCs 16 x 12 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Dimensions 14.2 x 14.2 x 1.45mm | ||
Width 14.2mm | ||
Program Memory Type Flash | ||
Height 1.45mm | ||
Number of LIN Channels 0 | ||
Number of ADC Units 1 | ||
Length 14.2mm | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Maximum Operating Temperature +85 °C | ||
MSP430F5x Ultra-Low-Power+ Performance Microcontrollers, Texas Instruments
1.8V to 3.6V operation
Up to 512KB Flash memory
Up to 66KB RAM memory
Full-speed USB 2.0 interface
Low Power 195μA / MHz active
Low Power 2.5μA real-time clock mode
Low Power 0.1μA RAM retention
Fast Wake-Up From Standby Mode in less than 5μs
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
