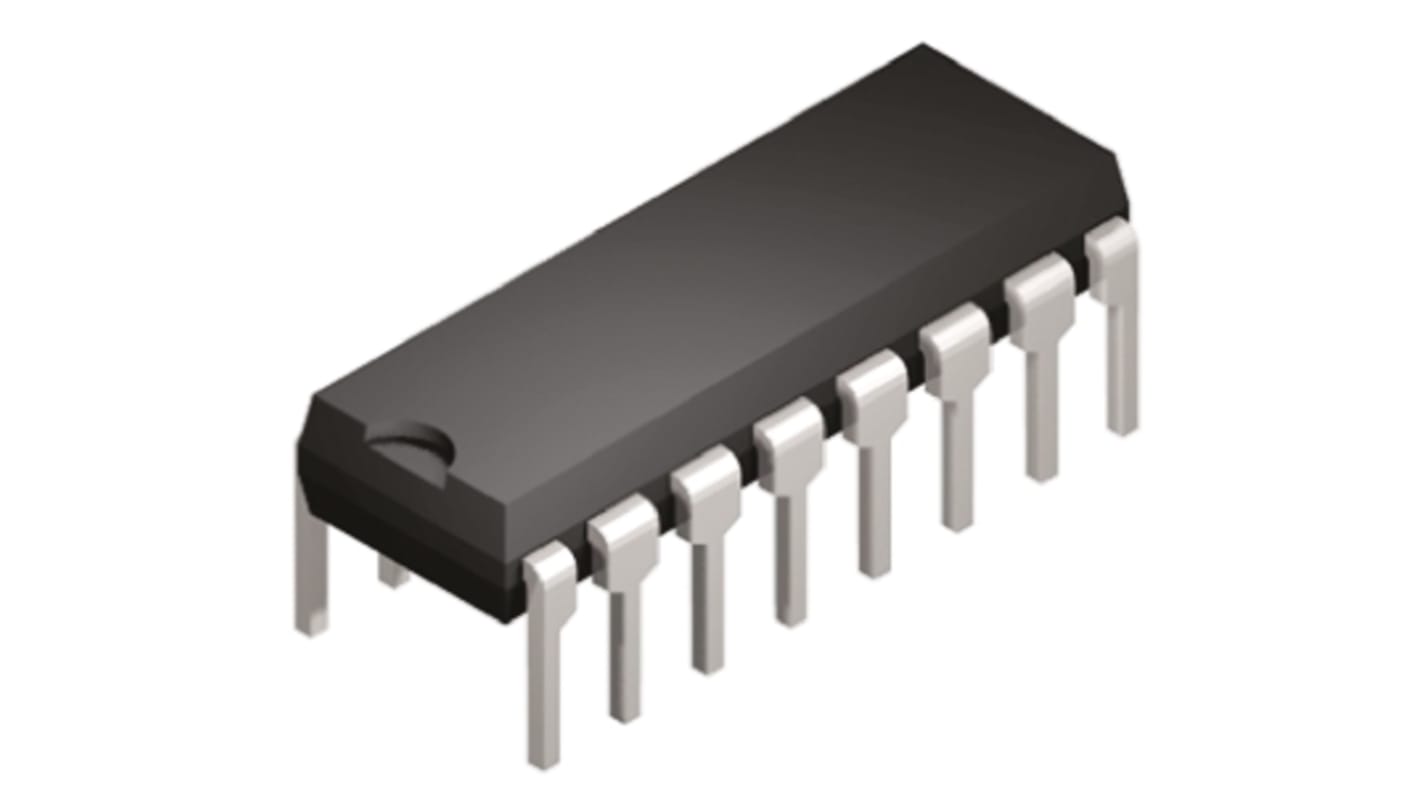

Renesas Electronics, 8bit 78K0S, UPD78 Microcontroller, 10MHz, 4 kB Flash, 16-Pin SDIP
- RS Stock No.:
- 739-6957P
- Mfr. Part No.:
- UPD78F9212CS-CAB-A
- Brand:
- Renesas Electronics
Subtotal 20 units (supplied in a tray)*
£37.20
(exc. VAT)
£44.60
(inc. VAT)
FREE delivery for orders over £50.00
- Shipping from 21 April 2026
Units | Per unit |
|---|---|
| 20 - 48 | £1.86 |
| 50 - 98 | £1.83 |
| 100 - 198 | £1.79 |
| 200 + | £1.77 |
*price indicative
- RS Stock No.:
- 739-6957P
- Mfr. Part No.:
- UPD78F9212CS-CAB-A
- Brand:
- Renesas Electronics
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Family Name | UPD78 | |
| Package Type | SDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 16 | |
| Device Core | 78K0S | |
| Data Bus Width | 8bit | |
| Program Memory Size | 4 kB | |
| Maximum Frequency | 10MHz | |
| RAM Size | 128 B | |
| Number of PWM Units | 2 x 8/16 bit | |
| Number of SPI Channels | 0 | |
| Number of USART Channels | 0 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 2 → 5.5 V | |
| Number of I2C Channels | 0 | |
| Dimensions | 17.37 x 6.6 x 2.8mm | |
| Program Memory Type | Flash | |
| Width | 6.6mm | |
| Number of Ethernet Channels | 0 | |
| Number of ADC Units | 1 | |
| Number of LIN Channels | 0 | |
| Instruction Set Architecture | CISC | |
| Maximum Operating Temperature | +85 °C | |
| Height | 2.8mm | |
| ADCs | 4 x 10 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Minimum Operating Temperature | -40 °C | |
| Length | 17.37mm | |
| Pulse Width Modulation | 1 x 16 bit, 6 x 8 bit | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Family Name UPD78 | ||
Package Type SDIP | ||
Mounting Type Through Hole | ||
Pin Count 16 | ||
Device Core 78K0S | ||
Data Bus Width 8bit | ||
Program Memory Size 4 kB | ||
Maximum Frequency 10MHz | ||
RAM Size 128 B | ||
Number of PWM Units 2 x 8/16 bit | ||
Number of SPI Channels 0 | ||
Number of USART Channels 0 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 0 | ||
Typical Operating Supply Voltage 2 → 5.5 V | ||
Number of I2C Channels 0 | ||
Dimensions 17.37 x 6.6 x 2.8mm | ||
Program Memory Type Flash | ||
Width 6.6mm | ||
Number of Ethernet Channels 0 | ||
Number of ADC Units 1 | ||
Number of LIN Channels 0 | ||
Instruction Set Architecture CISC | ||
Maximum Operating Temperature +85 °C | ||
Height 2.8mm | ||
ADCs 4 x 10 bit | ||
Maximum Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Minimum Operating Temperature -40 °C | ||
Length 17.37mm | ||
Pulse Width Modulation 1 x 16 bit, 6 x 8 bit | ||
- COO (Country of Origin):
- JP
