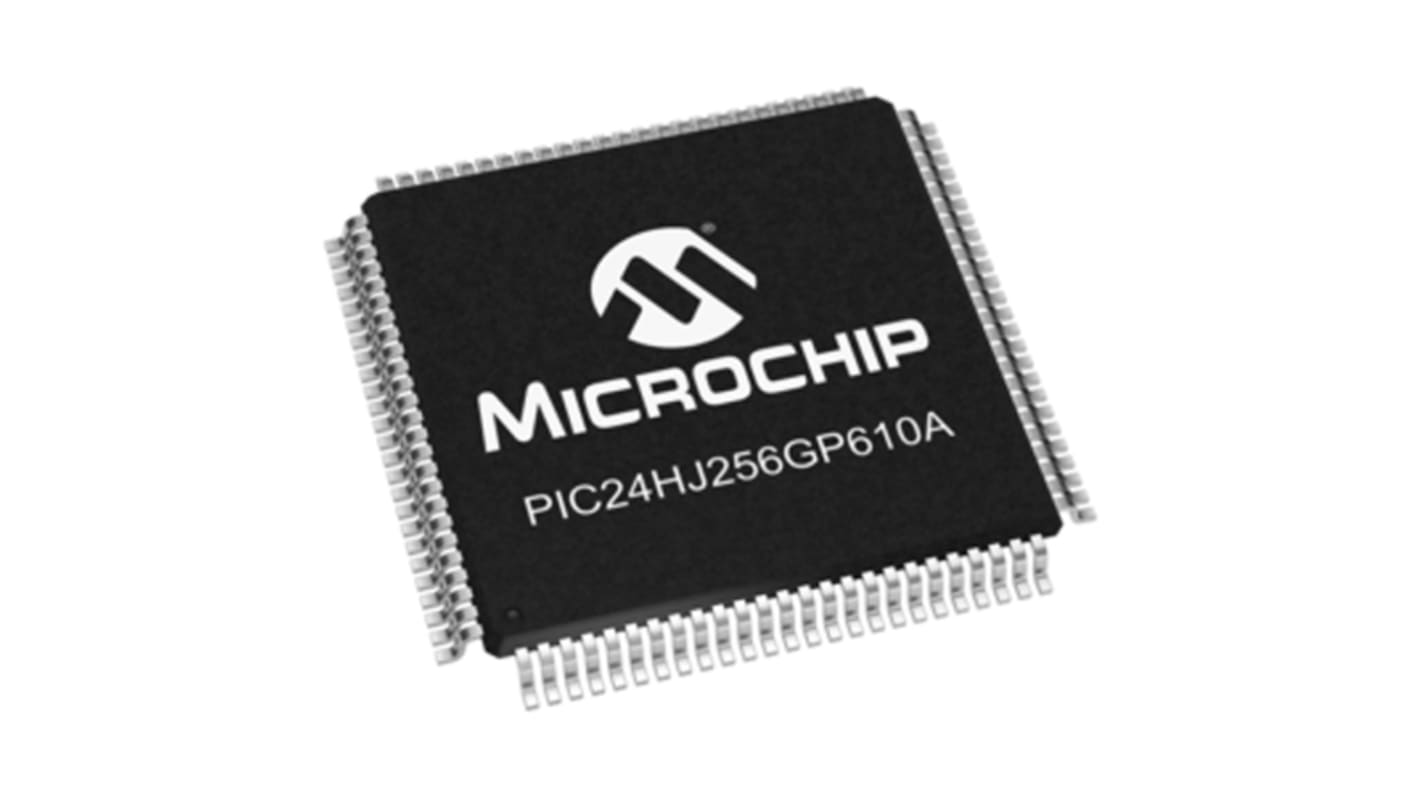

Microchip PIC24HJ256GP610A-I/PT, 16bit PIC Microcontroller, PIC24HJ, 40MIPS, 256 kB Flash, 100-Pin TQFP
- RS Stock No.:
- 667-0292
- Mfr. Part No.:
- PIC24HJ256GP610A-I/PT
- Brand:
- Microchip
Available to back order for despatch 25/07/2024
Added
Price Each
£8.17
(exc. VAT)
£9.80
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £8.17 |
| 25 - 99 | £7.92 |
| 100 + | £7.64 |
- RS Stock No.:
- 667-0292
- Mfr. Part No.:
- PIC24HJ256GP610A-I/PT
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
PIC24HJxxxGPx06A/x08A/x10A 16-Bit Microcontrollers
PIC24 Microcontrollers
Specifications
Attribute | Value |
|---|---|
| Family Name | PIC24HJ |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | PIC |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 40MIPS |
| RAM Size | 16 kB |
| USB Channels | 0 |
| Number of PWM Units | 1 x 16 bit |
| Number of SPI Channels | 2 |
| Number of I2C Channels | 2 |
| Number of CAN Channels | 2 |
| Number of USART Channels | 0 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Length | 12mm |
| ADCs | 32 x 10/12 bit |
| Width | 12mm |
| Pulse Width Modulation | 8 x 16 bit |
| Number of LIN Channels | 0 |
| Dimensions | 12 x 12 x 1.05mm |
| Program Memory Type | Flash |
| Maximum Operating Temperature | +85 °C |
| Height | 1.05mm |
| Minimum Operating Temperature | -40 °C |
| Number of ADC Units | 2 |
| Instruction Set Architecture | RISC |
| Number of PCI Channels | 0 |
| Number of Ethernet Channels | 0 |
