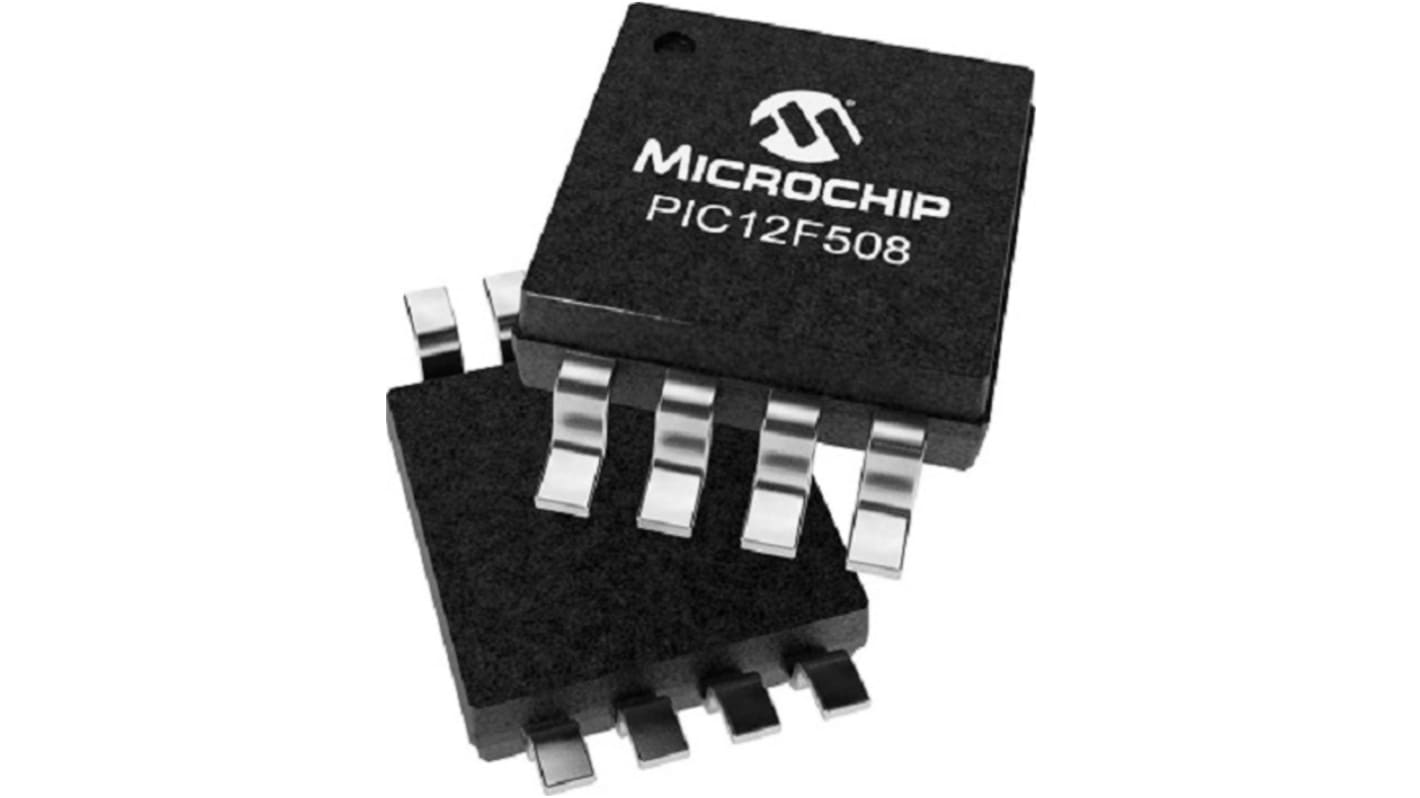

Microchip 8 bit MCU, PIC12 Microcontroller MCU, 8-Pin SOIC

View all Microcontrollers
Bulk discount available

Subtotal (1 pack of 10 units)*

£6.35

(exc. VAT)

£7.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,280 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 - 40£0.635£6.35
50 - 90£0.618£6.18
100 - 240£0.602£6.02
250 - 990£0.587£5.87
1000 +£0.571£5.71

*price indicative

Packaging Options:
RS Stock No.:
263-8055
Mfr. Part No.:
PIC12F508T-I/SN
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

PIC12

Package Type

SOIC

Mounting Type

Surface Mount

Pin Count

8

Device Core

8 bit MCU

The Microchip PIC12F508 devices from Microchip Technology are low cost, high performance, 8 bit, fully static, flash based CMOS microcontrollers. They employ a RISC architecture with only 33 single word or single cycle instructions. All instructions are single cycle except for program branches, which take two cycles. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8 bit microcontrollers in its class. The easy to use and easy to remember instruction set reduces development time significantly.

Precision 4 MHz internal oscillator
Baseline Core with 33 Instructions 2 Stack Levels
All single cycle Instructions except for program branches which are two cycles
12 bit wide instructions
8bit wide data path
25 mA source or sink current I/O
Low power 100nA sleep current
One 8-bit timer TMR0
Watchdog timer
In Circuit Serial Programming capability
In Circuit debugging support
Programmable code protection
