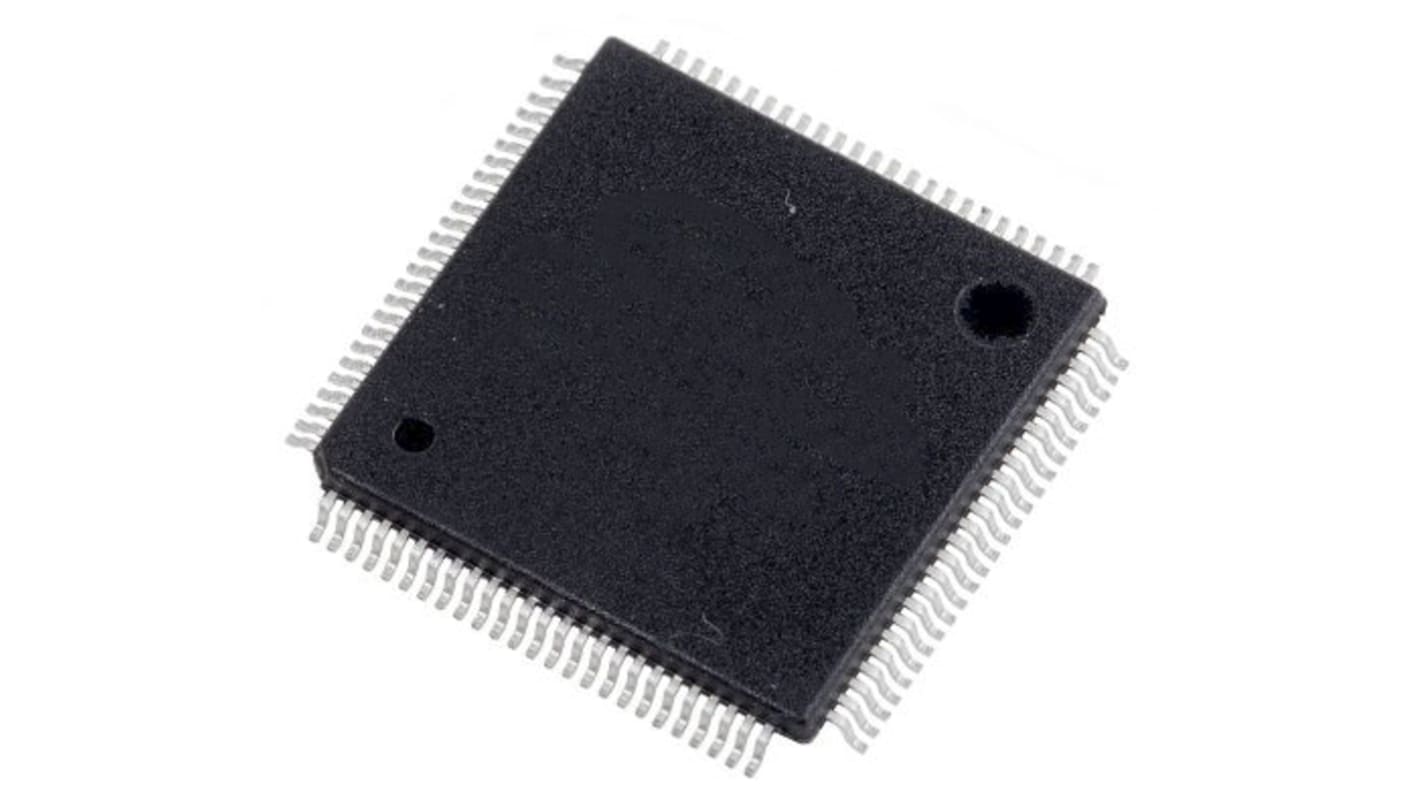

STMicroelectronics, 32bit ARM Cortex M0, STM32 Microcontroller, 48MHz, 256 kB Flash, 100-Pin LQFP

View all Microcontrollers
Discontinued
Packaging Options:
RS Stock No.:
196-2020P
Mfr. Part No.:
STM32F091VCT6
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Family Name

STM32

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

100

Device Core

ARM Cortex M0

Data Bus Width

32bit

Program Memory Size

256 kB

Maximum Frequency

48MHz

RAM Size

32 kB

Number of SPI Channels

2

Typical Operating Supply Voltage

2 → 3.6 V

Number of CAN Channels

1

Number of USART Channels

8

Number of I2C Channels

2

Length

14.2mm

Instruction Set Architecture

RISC

Dimensions

14.2 x 14.2 x 1.45mm

Minimum Operating Temperature

-40 °C

ADCs

19 x 12 bit

Height

1.45mm

Width

14.2mm

Maximum Operating Temperature

+85 °C

Program Memory Type

Flash

Number of ADC Units

1

COO (Country of Origin):
MY
The STM32F091xB/xC microcontrollers incorporate the high-performance ARM®Cortex®-M0 32-bit RISC core operating at up to 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. The device offers standard communication interfaces (two I2Cs, two SPIs/one I2S, one HDMI CEC and up to eight USARTs), one CAN, one 12-bit ADC, one 12-bit DAC with two channels, seven 16-bit timers, one 32-bit timer and an advanced-control PWM timer.
The STM32F091xB/xC microcontrollers operate in the -40 to +85 °C and -40 to +105 °C temperature ranges, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.
The STM32F091xB/xC microcontrollers include devices in seven different packages ranging from 48 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included.
