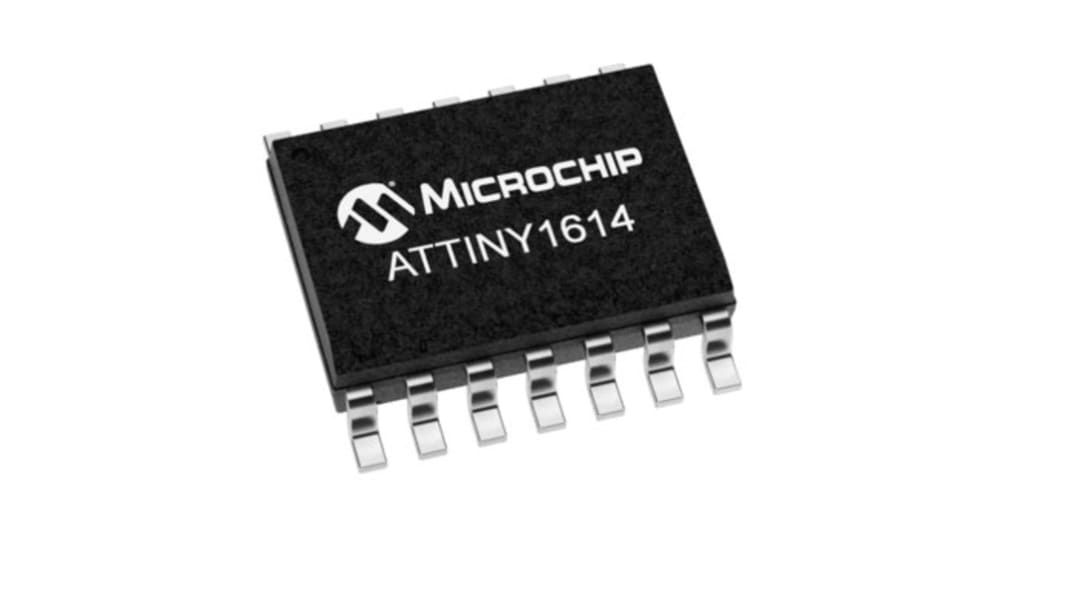

Microchip, 8 bit AVR, ATTINY1614 Microcontroller, 20 MHz, 16kB FLASH, 14-Pin SOIC
- RS Stock No.:
- 193-6204
- Mfr. Part No.:
- ATTINY1614-SSN
- Brand:
- Microchip
Subtotal (1 tube of 57 units)*
£31.692
(exc. VAT)
£38.019
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 342 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 57 + | £0.556 | £31.69 |
*price indicative
- RS Stock No.:
- 193-6204
- Mfr. Part No.:
- ATTINY1614-SSN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | ATTINY1614 | |
| Product Type | Microcontroller | |
| Package Type | SOIC | |
| Mount Type | Surface | |
| Pin Count | 14 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16kB | |
| Maximum Clock Frequency | 20MHz | |
| RAM Size | 2kB | |
| Maximum Supply Voltage | 5.5V | |
| DACs | 3 x 8 Bit | |
| Minimum Operating Temperature | -40°C | |
| Analogue Comparators | 3 | |
| Number of Programmable I/Os | 12 | |
| Maximum Operating Temperature | 125°C | |
| Length | 8.75mm | |
| Height | 1.5mm | |
| Width | 3.9 mm | |
| Standards/Approvals | RoHS | |
| Minimum Supply Voltage | 1.8V | |
| ADCs | 14 x 10 Bit | |
| Instruction Set Architecture | RISC | |
| Automotive Standard | No | |
| Program Memory Type | FLASH | |
| Number of Timers | 4 | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series ATTINY1614 | ||
Product Type Microcontroller | ||
Package Type SOIC | ||
Mount Type Surface | ||
Pin Count 14 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 16kB | ||
Maximum Clock Frequency 20MHz | ||
RAM Size 2kB | ||
Maximum Supply Voltage 5.5V | ||
DACs 3 x 8 Bit | ||
Minimum Operating Temperature -40°C | ||
Analogue Comparators 3 | ||
Number of Programmable I/Os 12 | ||
Maximum Operating Temperature 125°C | ||
Length 8.75mm | ||
Height 1.5mm | ||
Width 3.9 mm | ||
Standards/Approvals RoHS | ||
Minimum Supply Voltage 1.8V | ||
ADCs 14 x 10 Bit | ||
Instruction Set Architecture RISC | ||
Automotive Standard No | ||
Program Memory Type FLASH | ||
Number of Timers 4 | ||
The ATtiny1614 is a microcontroller featuring the 8-bit AVR® processor with hardware multiplier - running at up to 20MHz and with 16 KB Flash, 2 KB SRAM and 128 bytes of EEPROM in a 14-pin package. The series uses the latest Core Independent Peripherals with low power features. Including Event System, intelligent analog and advanced peripherals. Capacitive touch interfaces with proximity sensing and driven shield are supported by the integrated QTouch® peripheral touch controller.
Hardware multiplier
Three sleep modes
Idle
Standby
Power Down
Event System
Watchdog Timer (WDT)
Power-On Reset (POR)
Brown-Out Detection (BOD)
Single pin programming and debugging interface (UPDI)
10 Channel 10-bit ADC with Voltage Reference
8-bit Digital to Analog Converter (DAC)
Comparators
Configurable Custom Logic (CCL)
1x 12-bit Timers (TCD)
2x 16-bit Timer (TCA / TCB)
Cyclical Redundancy Check (CRC/SCAN)
Peripheral Touch Controller (PTC)
6 channels self-capacitance
9 mutual-capacitance buttons supported
SPI / I2C / USART
