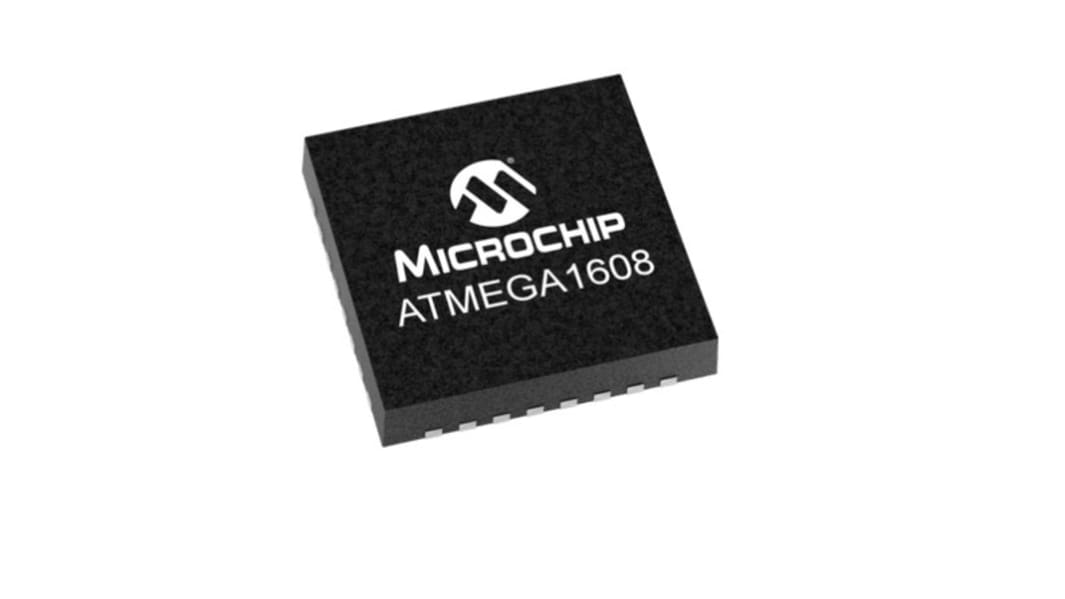

Microchip ATMEGA1608-MF, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 32-Pin QFN
- RS Stock No.:
- 193-6171
- Mfr. Part No.:
- ATMEGA1608-MF
- Brand:
- Microchip
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (In a Pack of 10)
£0.989
(exc. VAT)
£1.187
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 + | £0.989 | £9.89 |
| *price indicative | ||
- RS Stock No.:
- 193-6171
- Mfr. Part No.:
- ATMEGA1608-MF
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
The ATmega1608 is a microcontroller featuring the 8-bit AVR® processor with hardware multiplier - running at up to 20MHz and with up to 16 KB Flash, 2 KB SRAM and 256 bytes of EEPROM in 28- and 32-pin packages. The series uses the latest Core Independent Peripherals with low power features. Including Event System, intelligent analog and advanced peripherals.
Hardware multiplier
Three sleep modes
Idle
Standby
Power Down
Event System
Three sleep modes
Idle
Standby
Power Down
Event System
Specifications
Attribute | Value |
|---|---|
| Family Name | ATmega |
| Package Type | QFN |
| Mounting Type | Surface Mount |
| Pin Count | 32 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 16 kB |
| Maximum Frequency | 20MHz |
| RAM Size | 2 kB |
| USB Channels | 0 |
| Number of PWM Units | 0 |
| Number of SPI Channels | 1 |
| Number of USART Channels | 3 |
| Number of CAN Channels | 0 |
| Number of I2C Channels | 1 |
| Typical Operating Supply Voltage | 1.8 → 5.5 V |
| Number of UART Channels | 3 |
| Number of Ethernet Channels | 0 |
| Maximum Number of Ethernet Channels | 0 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 0 |
| ADCs | 12 x 10 bit |
| Dimensions | 5 x 5 x 0.9mm |
| Minimum Operating Temperature | -40 °C |
| Width | 5mm |
| Height | 0.9mm |
| Instruction Set Architecture | RISC |
| Length | 5mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
