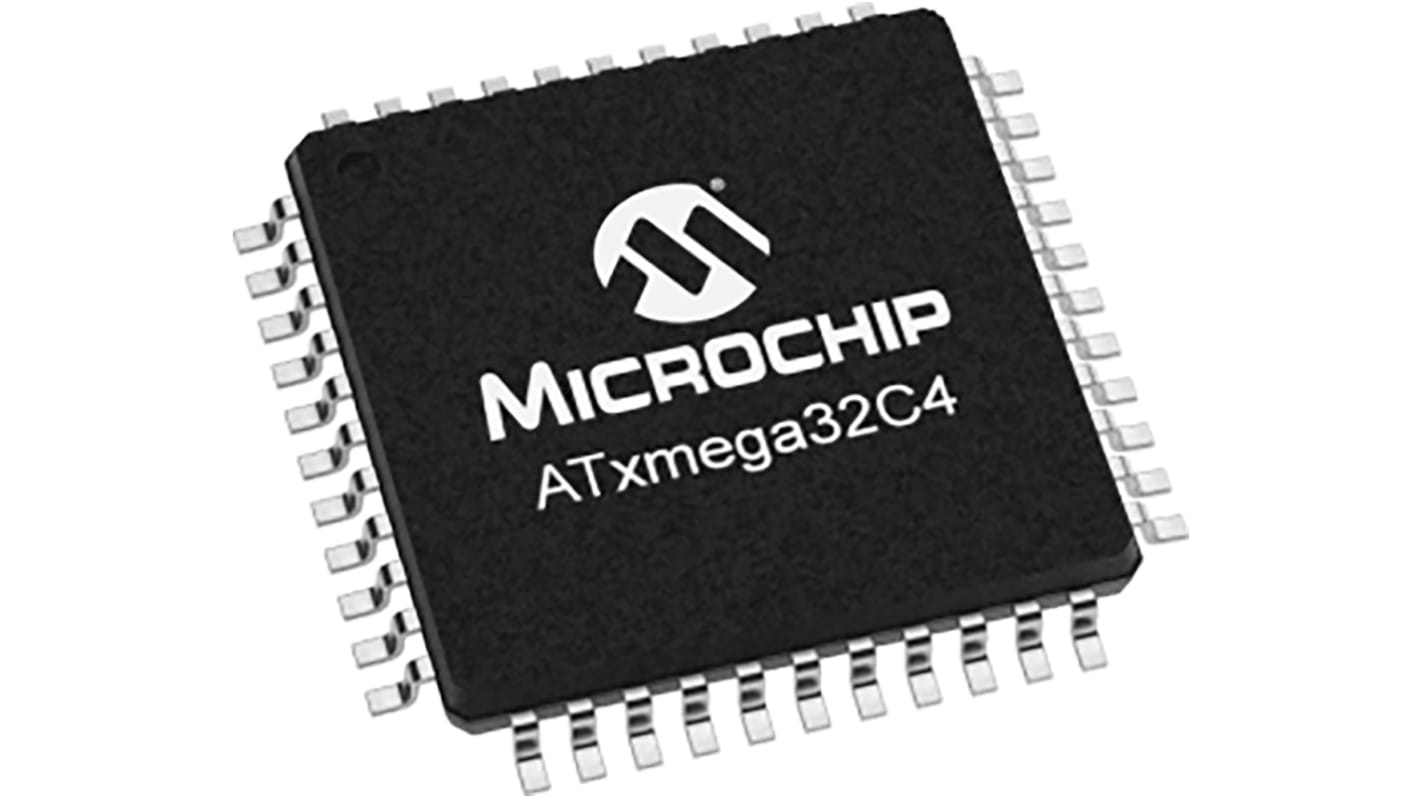

Microchip, 8bit AVR, ATmega Microcontroller, 32MHz, 32 kB Flash, 44-Pin TQFP

View all Microcontrollers

Subtotal (1 tray of 160 units)*

£358.40

(exc. VAT)

£430.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,840 unit(s) shipping from 11 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
160 +£2.24£358.40

*price indicative

RS Stock No.:
177-3503
Mfr. Part No.:
ATXMEGA32C4-AU
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

ATmega

Package Type

TQFP

Mounting Type

Surface Mount

Pin Count

44

Device Core

AVR

Data Bus Width

8 bit, 16bit

Program Memory Size

32 kB

Maximum Frequency

32MHz

RAM Size

4.096 kB

USB Channels

1

Number of PWM Units

1

Number of SPI Channels

4

Number of CAN Channels

0

Number of USART Channels

0

Number of I2C Channels

2

Number of UART Channels

2

Typical Operating Supply Voltage

1.6 → 3.6 V

Number of Ethernet Channels

0

Number of PCI Channels

0

Dimensions

10.1 x 10.1 x 1.05mm

Width

10.1mm

Pulse Width Modulation

1 (14 Channel)

Instruction Set Architecture

RISC

Height

1.05mm

Maximum Operating Temperature

+85 °C

Number of ADC Units

1

Minimum Operating Temperature

-40 °C

Maximum Number of Ethernet Channels

0

Length

10.1mm

ADCs

16 x 12 bit

Program Memory Type

Flash

Number of LIN Channels

2

The high-performance, low-power 8/16-bit AVR XMEGA microcontroller combines 192KB in-system programmable flash memory (8KB boot code section) with read-while-write capabilities, 2KB EEPROM, 16KB SRAM, a four-channel event system, a programmable multi-level interrupt controller, 50 general purpose I/O lines.

Atmel AVR CPU
Memories
DMAC - Direct memory access controller
Event system
System clock and clock options
Power management and sleep modes
System control and reset
WDT - Watchdog timer
Interrupts and programmable multilevel interrupt controller
PORT - I/O ports
TC - 16-bit timer/counters
AWeX - Advanced waveform extension
Hi-Res - High resolution extension
RTC - Real-time counter
USB - Universal serial bus interface
