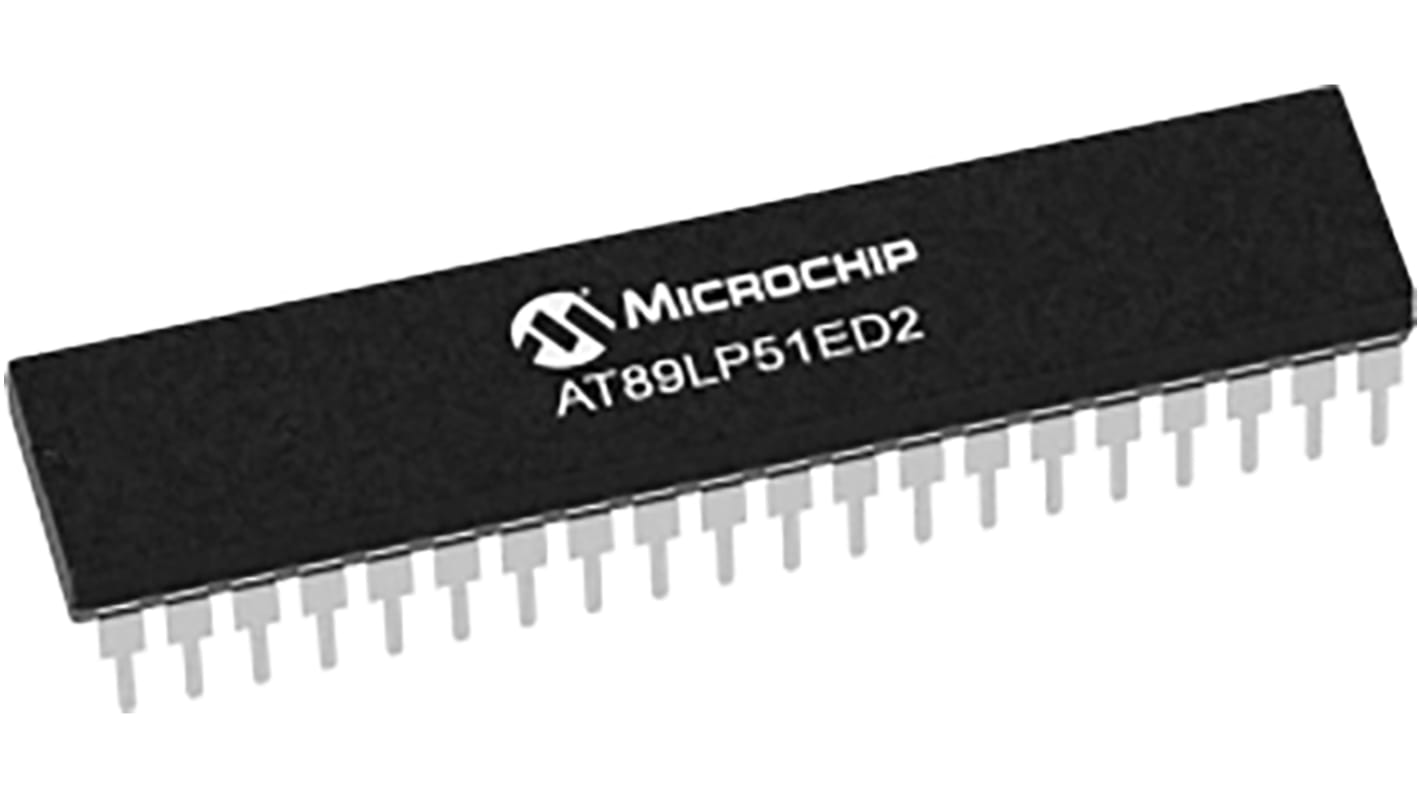

Microchip, 8bit 8051, AT89LP Microcontroller, 20MHz, 64 kB Flash, 40-Pin PDIP
- RS Stock No.:
- 177-1661
- Mfr. Part No.:
- AT89LP51ED2-20PU
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 2 units)*
£8.62
(exc. VAT)
£10.34
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 40 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £4.31 | £8.62 |
| 10 - 22 | £4.05 | £8.10 |
| 24 - 98 | £3.95 | £7.90 |
| 100 + | £3.85 | £7.70 |
*price indicative
- RS Stock No.:
- 177-1661
- Mfr. Part No.:
- AT89LP51ED2-20PU
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | AT89LP | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 40 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 64 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 8 bit | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 5 V | |
| Number of CAN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Length | 53.2mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | 8051 | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 8 x 10 bit | |
| Pulse Width Modulation | 1 (7 x 8 bit) | |
| Dimensions | 53.2 x 14.73 x 4.95mm | |
| Width | 14.73mm | |
| Height | 4.95mm | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name AT89LP | ||
Package Type PDIP | ||
Mounting Type Through Hole | ||
Pin Count 40 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 64 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 256 B | ||
USB Channels 0 | ||
Number of PWM Units 1 x 8 bit | ||
Number of SPI Channels 1 | ||
Number of UART Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 5 V | ||
Number of CAN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Length 53.2mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture 8051 | ||
Maximum Number of Ethernet Channels 0 | ||
ADCs 8 x 10 bit | ||
Pulse Width Modulation 1 (7 x 8 bit) | ||
Dimensions 53.2 x 14.73 x 4.95mm | ||
Width 14.73mm | ||
Height 4.95mm | ||
- COO (Country of Origin):
- CN
Single-cycle microcontroller with 64KB ISP flash and 12-clock compatibility mode. It includes 4KB EEPROM data memory, 2304 bytes RAM, 2KB ROM with UART-based Bootloader, PWM, UART, TWI, SPI, PCA, up to 42 I/Os, 10-bit A/D, dual Analog Comparators, an internal 8 MHz RC oscillator, and on-chip debug. The TWI and On-Chip Debug features are not available on 40-pin PDIP package.
