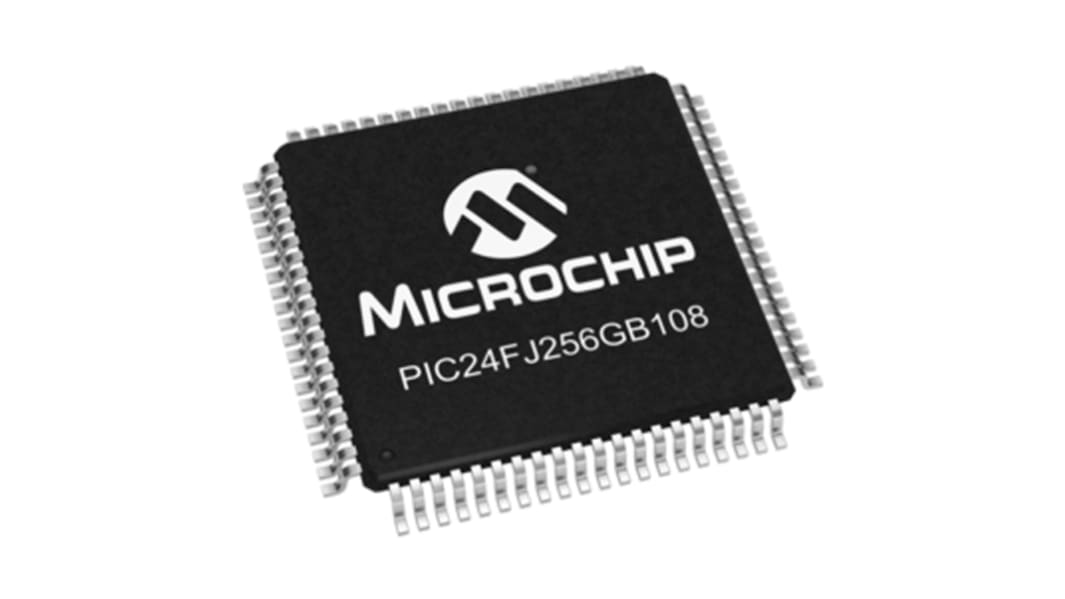

Microchip PIC24FJ256GB108-I/PT, 16bit PIC Microcontroller, PIC24FJ, 32MHz, 256 kB Flash, 80-Pin TQFP

RS Stock No.:: 165-4597
Mfr. Part No.:: PIC24FJ256GB108-I/PT
Brand:: Microchip

Microchip PIC24FJ256GB108-I/PT, 16bit PIC Microcontroller, PIC24FJ, 32MHz, 256 kB Flash, 80-Pin TQFP

238 In stock - FREE next working day delivery available

Price Each (In a Tray of 119)

£5.22

(exc. VAT)

£6.26

(inc. VAT)

Units	Per unit	Per Tray*
119 +	£5.22	£621.18

*price indicative

RS Stock No.:: 165-4597
Mfr. Part No.:: PIC24FJ256GB108-I/PT
Brand:: Microchip

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Family Name	PIC24FJ
Package Type	TQFP
Mounting Type	Surface Mount
Pin Count	80
Device Core	PIC
Data Bus Width	16bit
Program Memory Size	256 kB
Maximum Frequency	32MHz
RAM Size	16 kB
USB Channels	1 x OTG
Number of PWM Units	9 x 16 bit
Number of SPI Channels	3
Typical Operating Supply Voltage	2 → 3.6 V
Number of I2C Channels	3
Number of UART Channels	4
Number of CAN Channels	0
Number of USART Channels	0
Minimum Operating Temperature	-40 °C
Instruction Set Architecture	RISC
Maximum Number of Ethernet Channels	0
Maximum Operating Temperature	+85 °C
Number of ADC Units	1
ADCs	16 x 10 bit
Program Memory Type	Flash
Length	12mm
Pulse Width Modulation	9 x 16 bit (Compare/PWM)
Dimensions	12 x 12 x 1.05mm
Width	12mm
Height	1.05mm
Number of LIN Channels	0
Number of Ethernet Channels	0
Number of PCI Channels	0

Planned Maintenance – Friday 21st to Sunday 23rd June 2024

Microchip PIC24FJ256GB108-I/PT, 16bit PIC Microcontroller, PIC24FJ, 32MHz, 256 kB Flash, 80-Pin TQFP

PIC24FJxxxGB106/108/110 16-Bit Flash Microcontrollers
