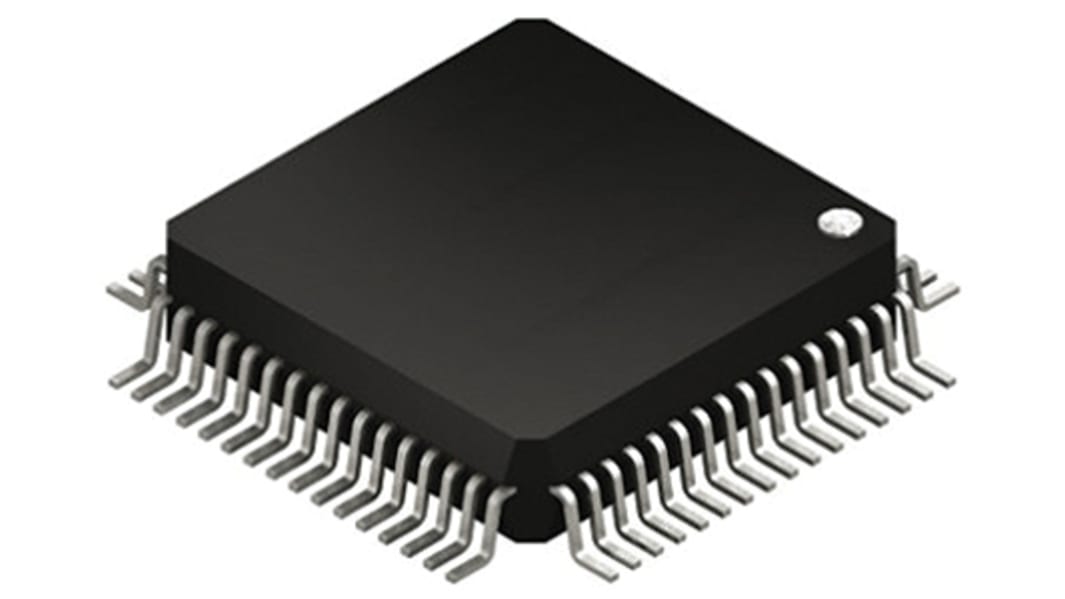

Texas Instruments, 16bit MSP430, MSP430 Microcontroller, 16MHz, 32 kB, 256 B Flash, 64-Pin LQFP

View all Microcontrollers

Subtotal (1 tube of 160 units)*

£772.16

(exc. VAT)

£926.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
160 +£4.826£772.16

*price indicative

RS Stock No.:
162-7009
Mfr. Part No.:
MSP430F247TPM
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Family Name

MSP430

Package Type

LQFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

MSP430

Data Bus Width

16bit

Program Memory Size

32 kB, 256 B

Maximum Frequency

16MHz

RAM Size

4 kB

USB Channels

0

Number of PWM Units

2 x 16 bit

Number of SPI Channels

4

Number of USART Channels

0

Number of CAN Channels

0

Typical Operating Supply Voltage

1.8 → 3.6 V

Number of I2C Channels

2

Number of UART Channels

2

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Number of PCI Channels

0

Number of Ethernet Channels

0

Number of LIN Channels

2

Height

1.45mm

Width

10.2mm

Dimensions

10.2 x 10.2 x 1.45mm

Pulse Width Modulation

3 x 16 bit, 7 x 16 bit

Instruction Set Architecture

RISC

Length

10.2mm

ADCs

8 x 12 bit

Maximum Number of Ethernet Channels

0

Number of ADC Units

1

Maximum Operating Temperature

+105 °C

MSP430F2x Extended Temperature Ultra-Low-Power Microcontrollers, Texas Instruments


The Extended Temperature range of MSP430™ devices are very popular in harsh environments which require extended operational environment temperatures to 105°C.

Up to 16MHz CPU speed clock
Up to 120KB Flash memory
Up to 8KB SRAM memory
1.8V to 3.6V operation
Smart Analog and Digital
Low Power 200μA/MHz active mode
Low Power 0.7μA real-time clock mode
Low Power 0.1μA RAM retention
Ultra-Fast Wake-Up From Standby Mode in less than 6μs


MSP430 Microcontrollers, Texas Instruments


The MSP430 Platform is a range of mixed-signal, ultra-low power microcontrollers from Texas Instruments. The 16-bit RISC architecture is perfectly suited for wireless, low-power industrial and portable applications. This established range has a strong and popular position due to its ease of use and broad suite of development tools and support.
The MSP430 portfolio consists of over 400 devices ranging from the MSP430 Value Line to the revolutionary, highly integrated microcontrollers with embedded FRAM memory.This broad family of products offer integration suited to many designs and applications. High-performance peripherals include USB, RF, LCD controllers and Sigma-Delta ADCs. This allows designers to find the appropriate MSP430 device for many low power applications.
