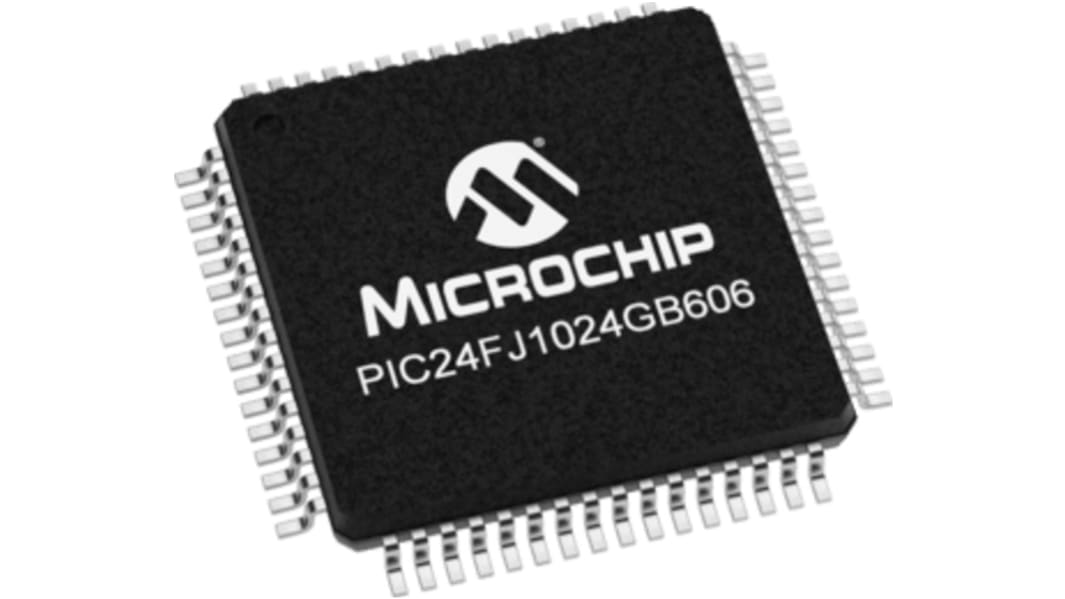

Microchip, 16bit 16 bit CPU, PIC24 Microcontroller, 32MHz, 1.024 MB Flash, 64-Pin QFP

View all Microcontrollers

Subtotal (1 tray of 160 units)*

£624.00

(exc. VAT)

£748.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 320 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
160 +£3.90£624.00

*price indicative

RS Stock No.:
146-3253
Mfr. Part No.:
PIC24FJ1024GB606-I/PT
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Family Name

PIC24

Package Type

QFP

Mounting Type

Surface Mount

Pin Count

64

Device Core

16 bit CPU

Data Bus Width

16bit

Program Memory Size

1.024 MB

Maximum Frequency

32MHz

RAM Size

32 kB

USB Channels

0

Number of PWM Units

1

Number of SPI Channels

3

Number of I2C Channels

3

Typical Operating Supply Voltage

2 → 3.6 V

Number of USART Channels

0

Number of CAN Channels

0

Number of UART Channels

6

ADCs

16 x 10/12 bit

Maximum Number of Ethernet Channels

0

Instruction Set Architecture

C Compiler

Length

9mm

Number of ADC Units

1

Program Memory Type

Flash

Minimum Operating Temperature

-40 °C

Pulse Width Modulation

1 (6 Channel)

Height

0.85mm

Number of LIN Channels

0

Number of PCI Channels

0

Maximum Operating Temperature

+85 °C

Number of Ethernet Channels

0

Width

9mm

Dimensions

9 x 9 x 0.85mm

The Microchip PIC24FJ1024GB606 microcontroller has C compiler optimized instruction Set architecture with large, dual partition flash program memory and USB On-The-Go (OTG). It includes up to 1MB of Flash memory with Error Correction Code (ECC) ,32 KB of RAM and USB connectivity. It operates on 2V to 3.6V voltage range. This device also features dual-partition Flash with Live Update capability, enabling them to hold two independent software applications, permitting simultaneous programming of one partition while executing application code from the other. It has 1024 flash program memory and 32K.data memory.

Up to 16 MIPS Operation @ 32 MHz
Two Address Generation Units for Separate Read and Write Addressing of Data Memory
10,000 Erase/Write Cycle Endurance, Typical
Data Retention of 20 Years Minimum
Self-Programmable under Software Control
On-Chip Voltage Regulators (1.8V) for Low-Power Operation
Programmable Reference Clock Output
In-Circuit Serial Programming™ (ICSP™) and In-Circuit Emulation (ICE) via Two Pins
JTAG Boundary Scan Support
Detects clock failure and switches to on-chip, low-power RC Oscillator
Power-on Reset (POR), Brown-out Reset (BOR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Programmable High/Low-Voltage Detect (HLVD)
Flexible Watchdog Timer (WDT) with its Own RC Oscillator for Reliable Operation
Sleep and Idle modes Selectively Shut Down
Peripherals and/or Core for Substantial Power
Reduction and Fast Wake-up
Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
Wide Range Digitally Controlled Oscillator (DCO) for Fast Start-up and Low-Power Operation
USB v2.0 On-The-Go (OTG) Compliant
Dual Role Capable – Can Act as Either Host or Peripheral
Low-Speed (1.5 Mb/s) and Full-Speed (12 Mb/s)
USB Operation in Host mode
Full-Speed USB Operation in Device mode
High-Precision PLL for USB
USB Device mode Operation from FRC Oscillator – No Crystal Oscillator Required
Temperature range between 40°C to +85°C
TQFP (Plastic Thin Quad Flatpack) package
